| Item | Quick Coupler Body |
|---|---|
| Body Material | Brass |
| Body Size | 1/4" |
| Color Code | Red |
| Finish | Brass |
| For Fuel Type | Acetylene, Compressed Air, Other Gases |
| Hose Connection Gender | Female |
| Hose Connection Size | 1/4"-18 |
| Hose Connection Type | NPTF |
| Locking Type | Sleeve |
| Material | Brass |
| Max. Flow | 21 CFM |
|---|---|
| Max. Pressure | 1500 psi |
| Maximum Flow Rate | 21 SCFM |
| Maximum Operating Pressure | 1500 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -40°F |
| Pipe Size | 1/4" |
| Product Type | Quick Connect Coupling Body |
| Seal Material | Buna-N |
| Standards | Osha Compliant |
| Temp. Range | -40°F to +250°F |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 15.24 |
| HS Code | 7412200045 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.09 |
| Style | Model | Max. Pressure | Hose Connection Type | Color Code | Pipe Size | Material | Finish | Temp. Range | Body Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR600 | 1500 psi | NPTF | Green | 1/8" | Brass | Brass | -40°F to +250°F | 1/4" | $45.01 | |
| A | GR602 | 1500 psi | NPTF | Green | 1/4" | Brass | Brass | -40°F to +250°F | 1/4" | $43.60 | |
| A | GR602SL | 100 psi | NPTF | Green | 1/4" | Brass | Brass | -40°F to +250°F | 1/4" | $54.74 | |
| A | GR604 | 1500 psi | NPTF | Green | 3/8" | Brass | Brass | -40°F to +250°F | 1/4" | $43.53 | |
| A | GR604SL | 100 psi | NPTF | Green | 3/8" | Brass | Brass | -40°F to +250°F | 1/4" | $43.23 | |
| A | GR605RSL | 100 psi | UNF | Green | 0.562" | Brass | Brass | -40°F to +250°F | 1/4" | $64.19 | |

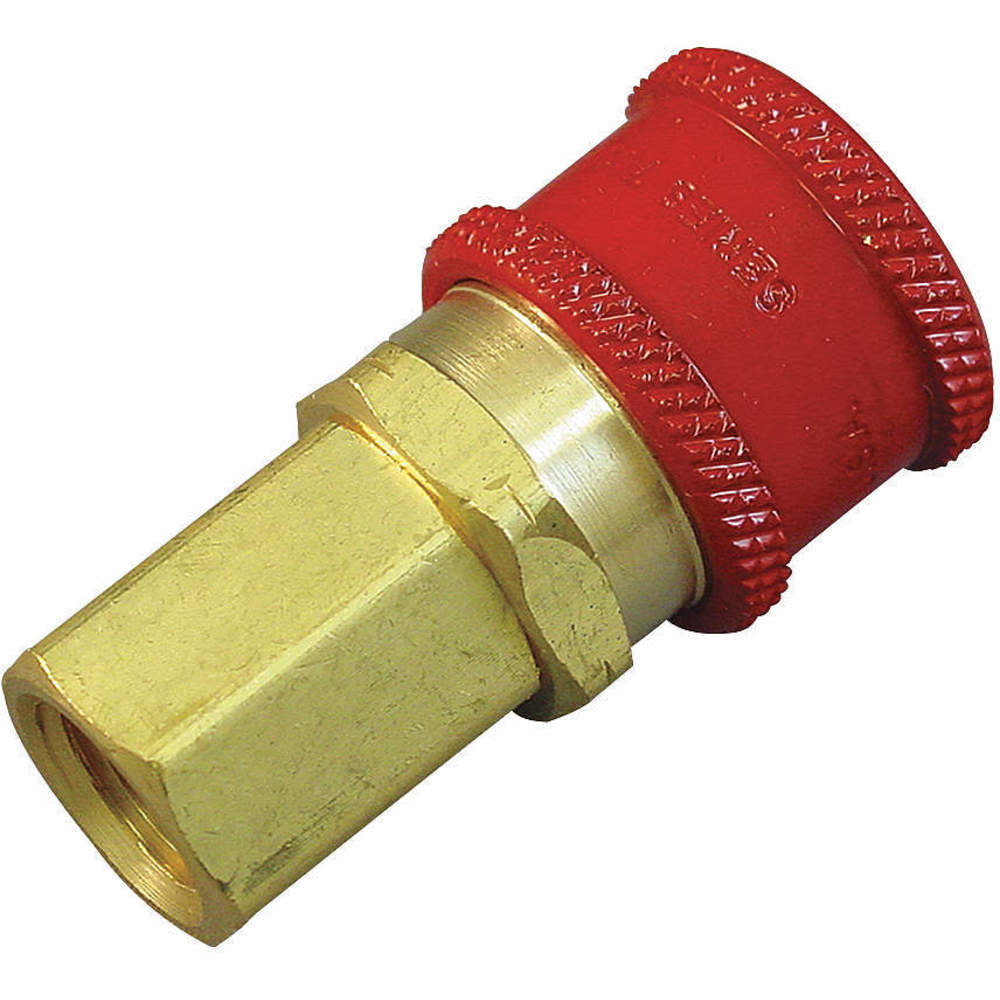

| B | RD700 | - | NPTF | Red | 1/8" | Brass | Brass | -40°F to +250°F | 1/4" | $48.47 |
