| Item | Rigid Plate Caster |
|---|---|
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Nylon |
| Caster Wheel Shape | Standard |
| Core Color | White |
| Core Material | Nylon |
| Durometer | 75 Shore D |
| Extended Lead | No |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1000 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
|---|---|
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -30°F to +200°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 7 1/2" |
| Plate Caster Core Material | Nylon |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Nylon |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Replacement Wheel | 49H467 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | White |
| Wheel Core Material | Nylon |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | White |
| Wheel/tread Hardness | 85 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 17.78 |
| HS Code | 8716903000 |
|---|---|
| Weight (kg) | 2.0925 |
| Style | Model | Caster Load Rating Range | Load Rating | Mounting Height | Core Color | Wheel/tread Hardness Rating | Wheel/tread Hardness | Wheel Core Material | Wheel/tread Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | R-WH-4SWF | 300 lbs. to 999 lbs. | 700 lbs. | 5 5/8" | Silver | Soft | 82 Shore A | Aluminum | Red | $180.13 | |
| B | R-WH-6SWF | 1000 lbs. to 2999 lbs. | 1400 lbs. | 7 1/2" | Silver | Soft | 82 Shore A | Aluminum | Red | $216.90 | |
| C | R-WH-8SWF | 1000 lbs. to 2999 lbs. | 2300 lbs. | 9 1/2" | Silver | Soft | 82 Shore A | Aluminum | Red | $251.55 | |

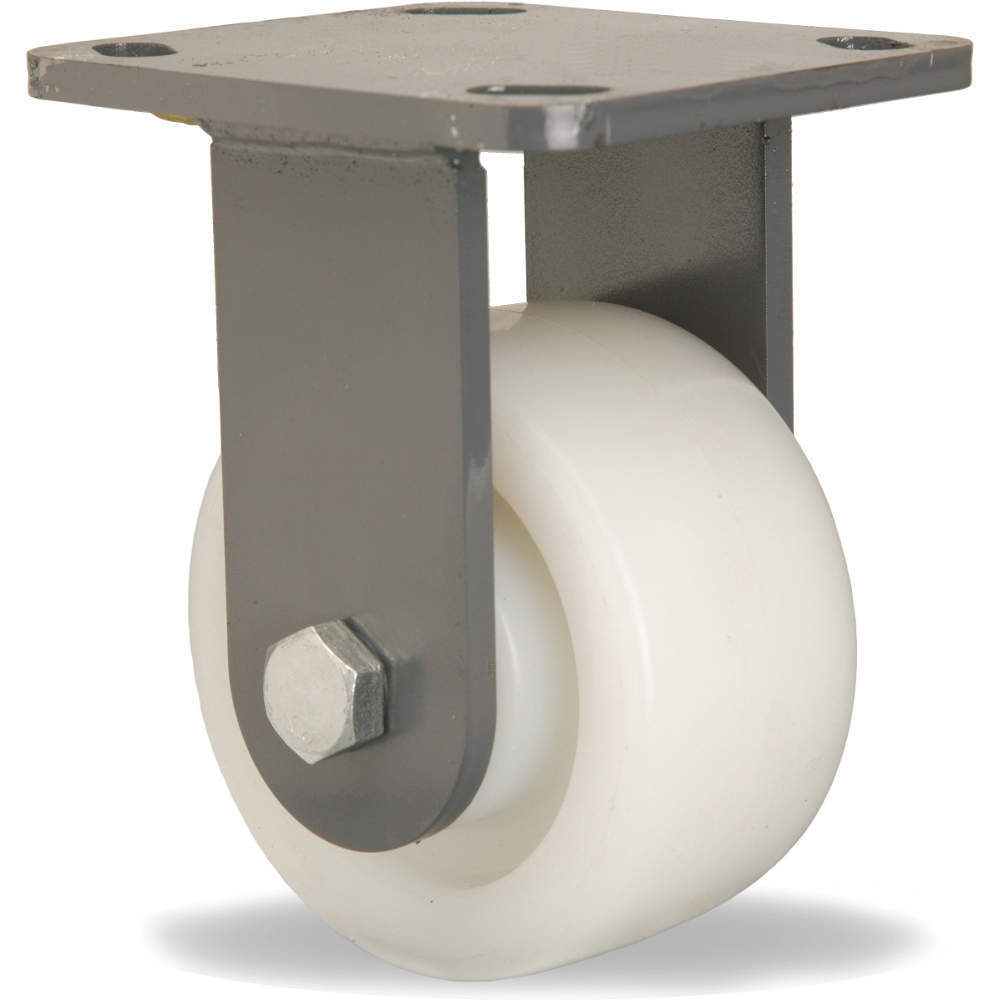

| D | R-WH-4WNB | 300 lbs. to 999 lbs. | 800 lbs. | 5 5/8" | White | Hard | 85 Shore D | Nylon | White | $111.06 | |

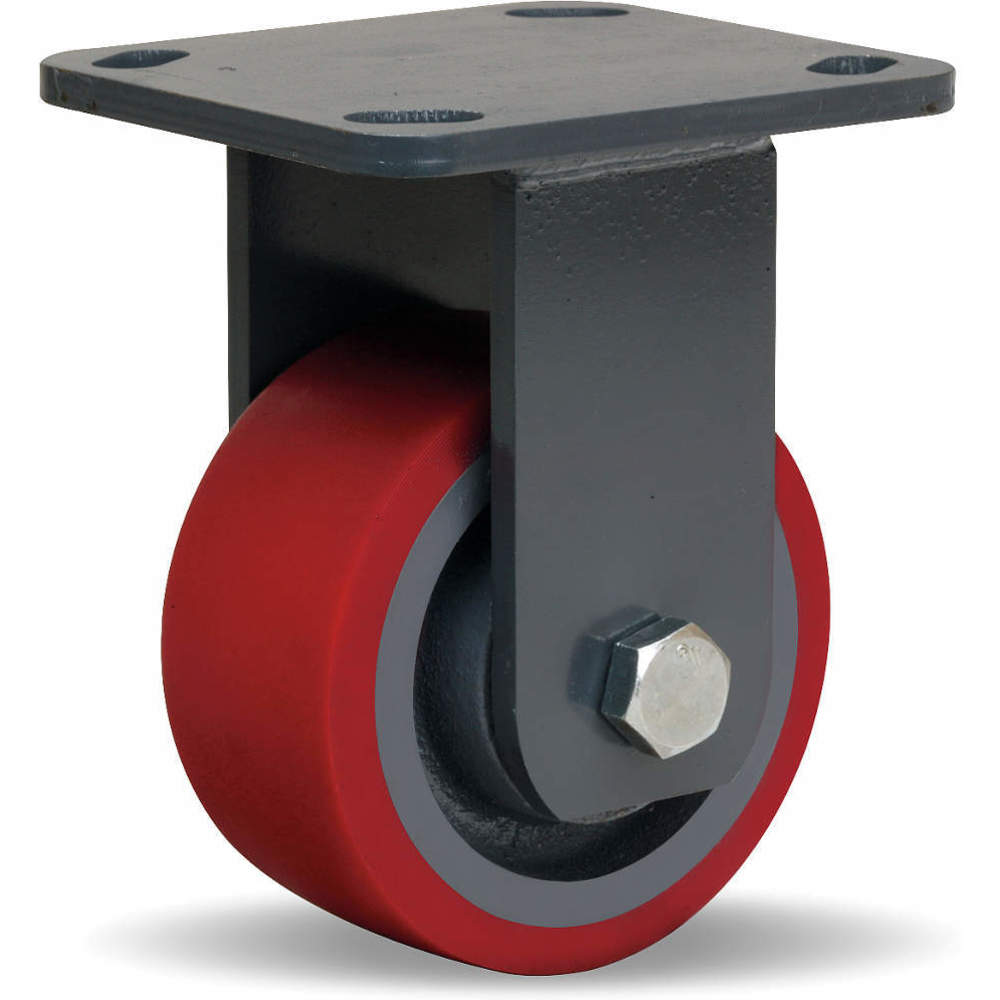

| E | R-WH-4TRB | 300 lbs. to 999 lbs. | 900 lbs. | 5 5/8" | Gray | Firm | 94 Shore A | Cast Iron | Red | $169.59 |
