| Item | Rigid Plate Caster |
|---|---|
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Forged Steel |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Forged Steel |
| Core Color | Silver |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 6000 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
|---|---|
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 10 1/2" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 3/8" |
| Plate Type | A |
| Replacement Wheel | 4DU75 |
| Standards | Icwm |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Clear |
| Wheel Core Material | Forged Steel |
| Wheel Diameter | 8" |
| Wheel Material | Forged Steel |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 179 BHN |
| Wheel/tread Hardness Rating | Extra Hard |
| Wheel/tread Material | Steel |
| Height (cm) | 13.46 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 20.83 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.14 |
| Style | Model | Wheel/tread Material | Caster Load Rating Range | Load Rating | Mounting Height | Core Color | Wheel/tread Hardness Rating | Wheel/tread Hardness | Wheel Core Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

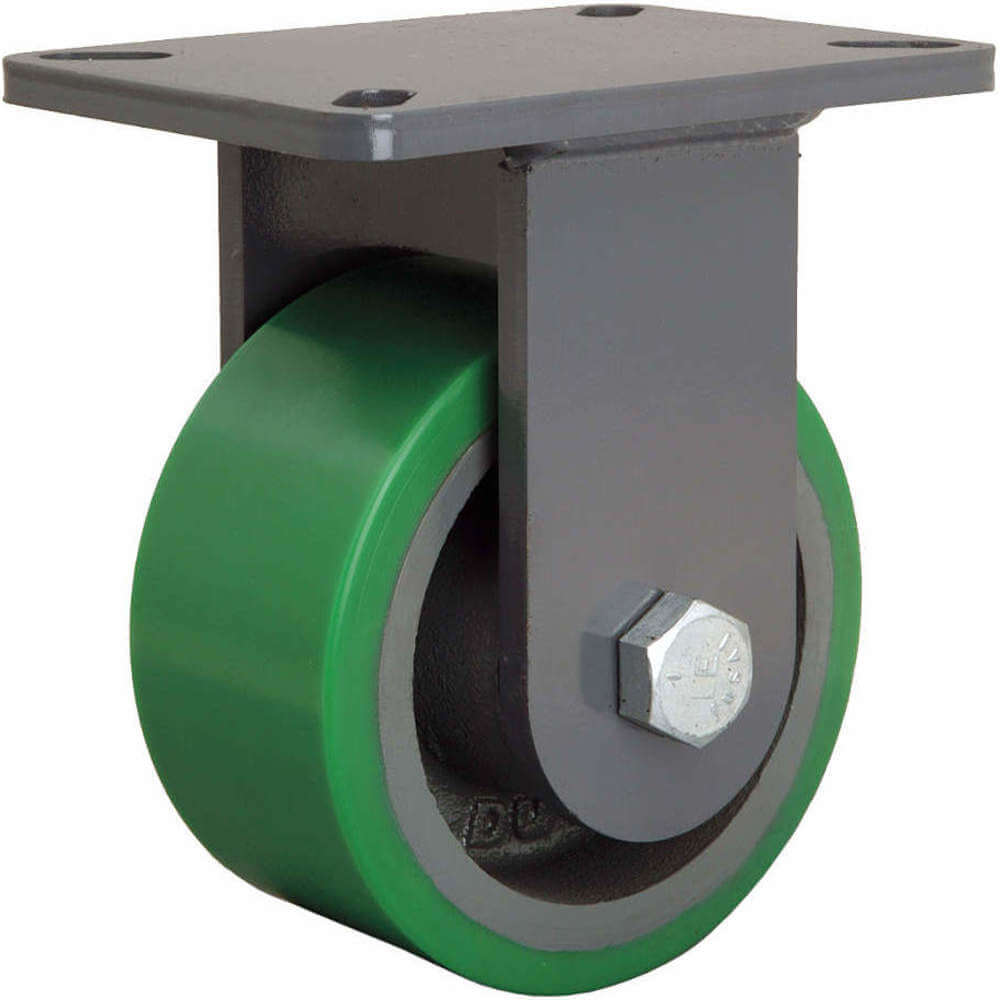

| A | R-SEC-63DB | Polyurethane | 1000 lbs. to 2999 lbs. | 2200 lbs. | 8" | Gray | Firm | 95 Shore A | Cast Iron | $273.29 | |
| B | R-SEC-63FSB | Steel | Greater Than 6000 lbs. | 6000 lbs. | 8" | Silver | Extra Hard | 179 BHN | Forged Steel | $454.94 | |

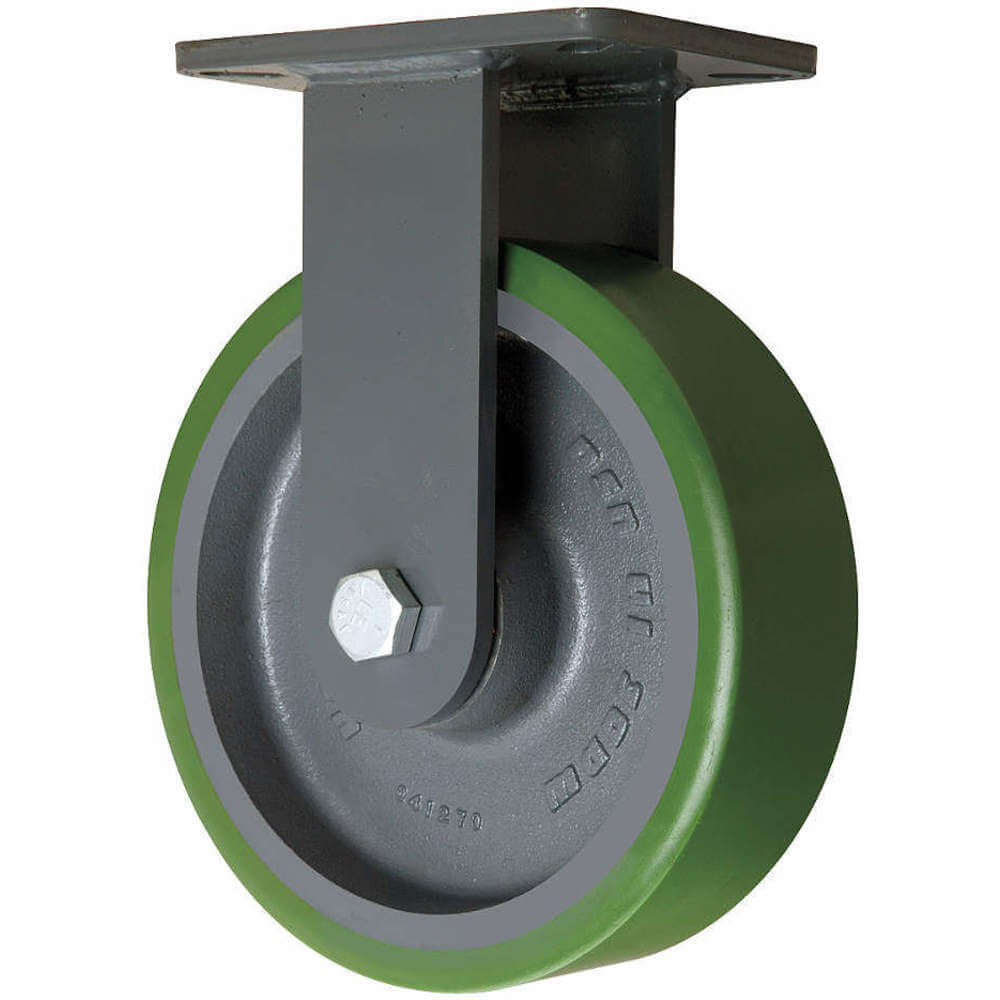

| C | R-SEC-13DB | Polyurethane | 3000 lbs. to 5999 lbs. | 3000 lbs. | 12 1/2" | Gray | Firm | 95 Shore A | Cast Iron | $380.10 | |

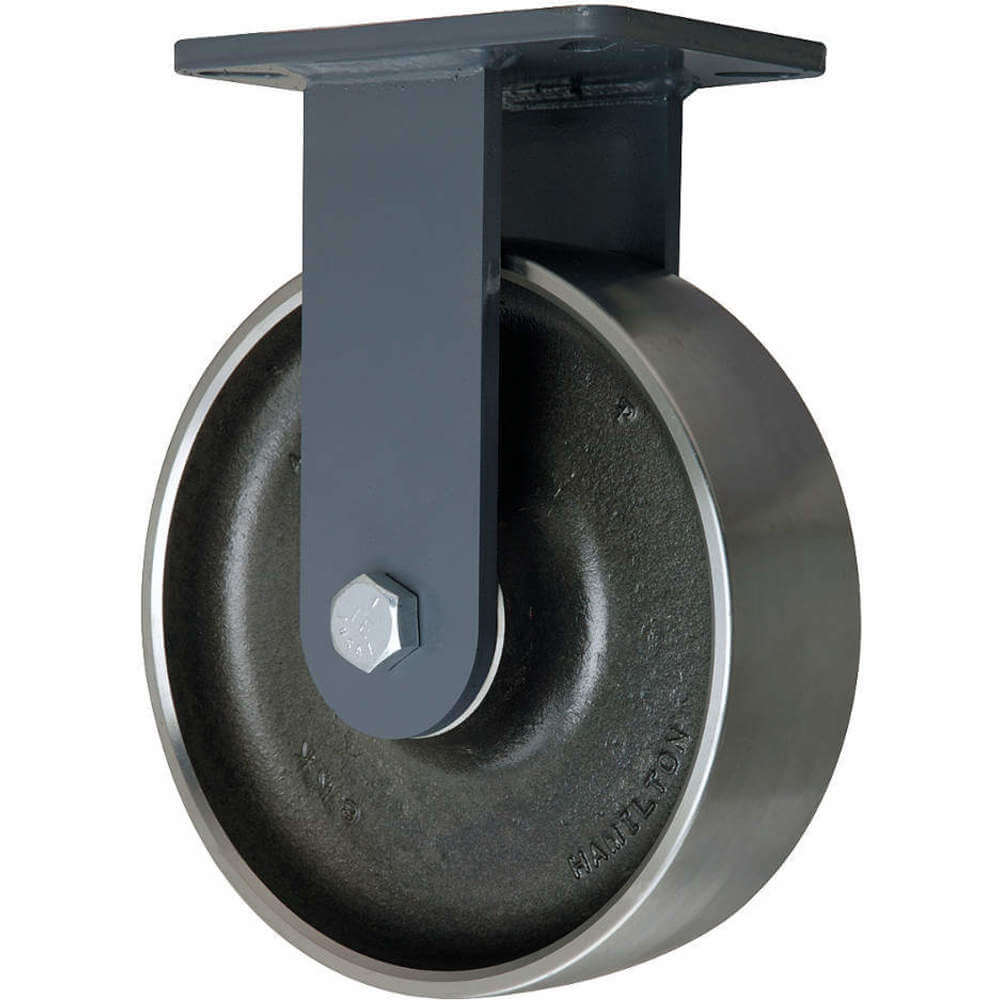

| D | R-SEC-13FSB | Steel | Greater Than 6000 lbs. | 6000 lbs. | 12 1/2" | Silver | Extra Hard | 179 BHN | Forged Steel | $501.76 | |

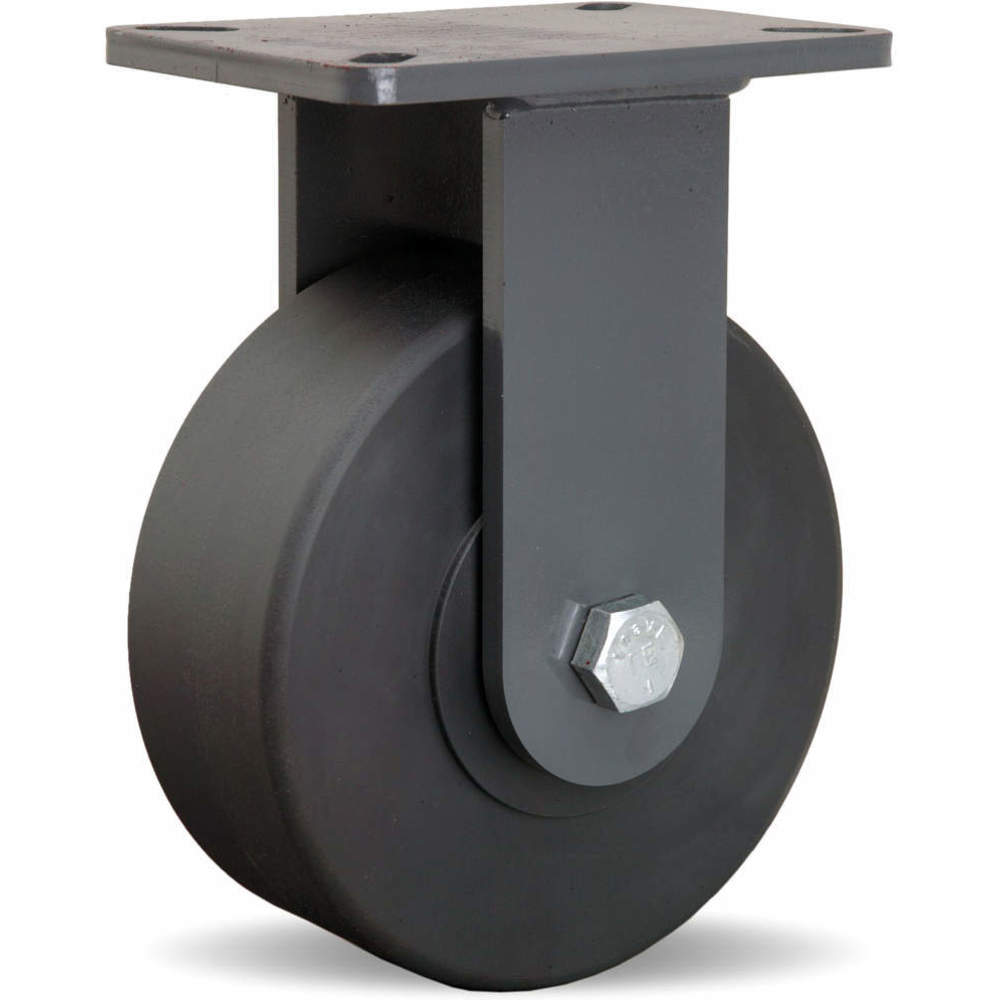

| E | R-SEC-83NYB | Nylon | Greater Than 6000 lbs. | 6000 lbs. | 10 1/2" | Black | Hard | 85 Shore D | Nylon | $539.62 |
