| Item | Socket Head Cap Screw |
|---|---|
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 25 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 16 mm |
| Head Height | 10 mm |
| Head Type | Standard |
| Length | 110 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 32 mm |
| Screw Length | 110 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M10 x 1.5 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 17.78 |
|---|---|
| Weight (kg) | 1.9346 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

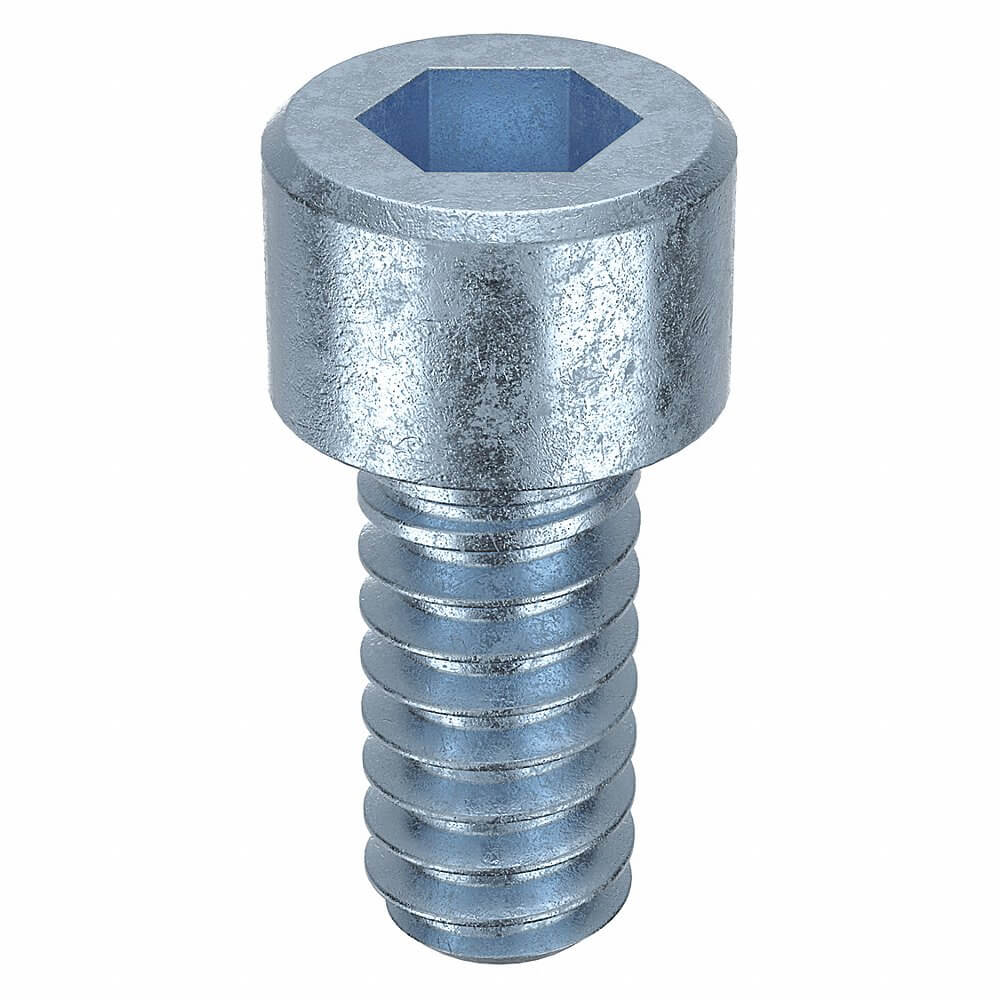

| A | U07001.011.0025 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 1/4" | 180000 psi | Rockwell C37-C45 | 100 | $19.36 | |

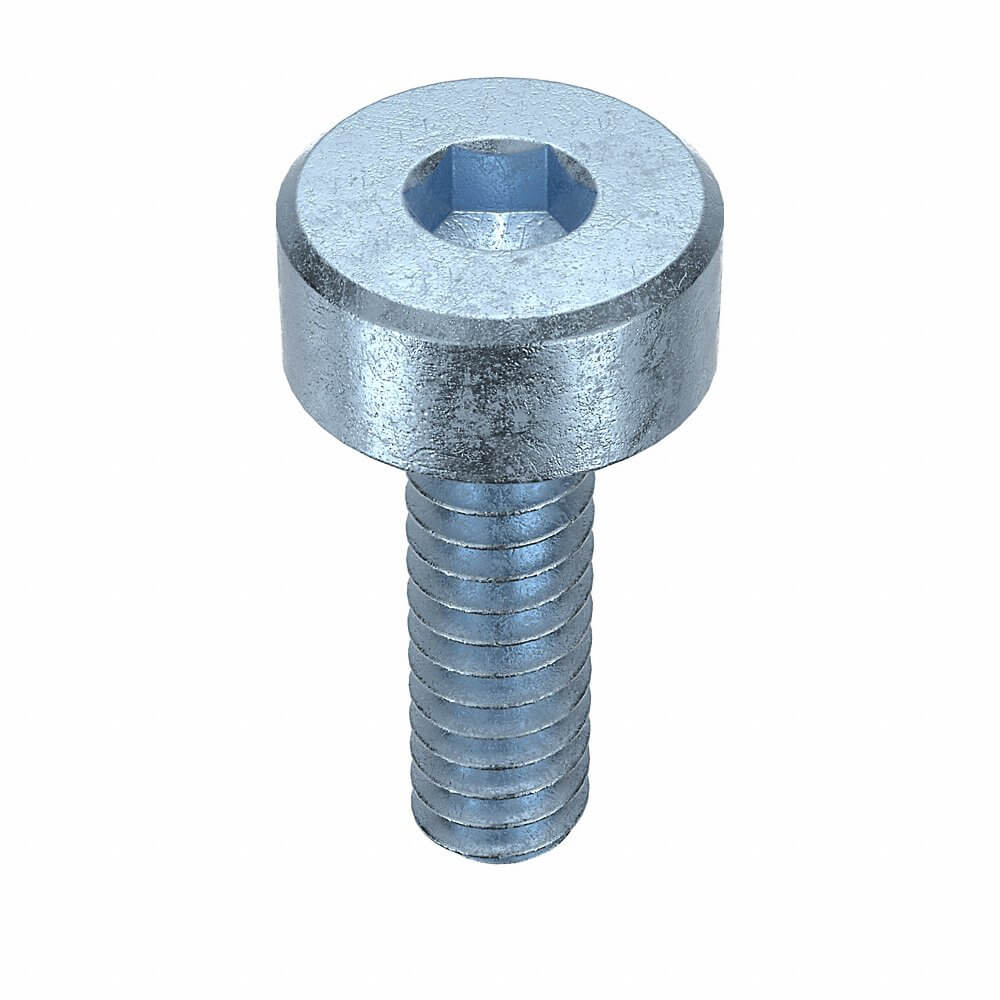

| B | U07001.011.0037 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 3/8" | 180000 psi | Rockwell C37-C45 | 100 | $24.74 | |

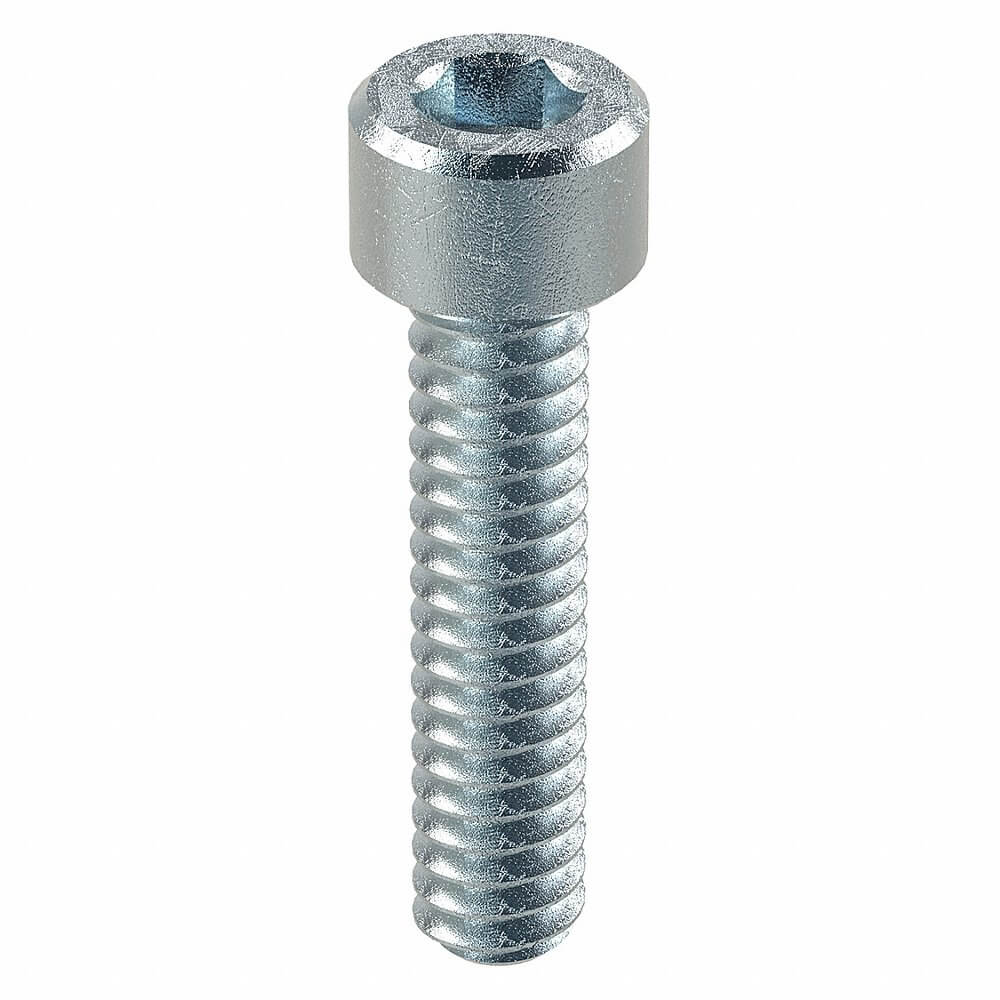

| C | U07001.011.0050 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 1/2" | 180000 psi | Rockwell C37-C45 | 100 | $20.87 | |

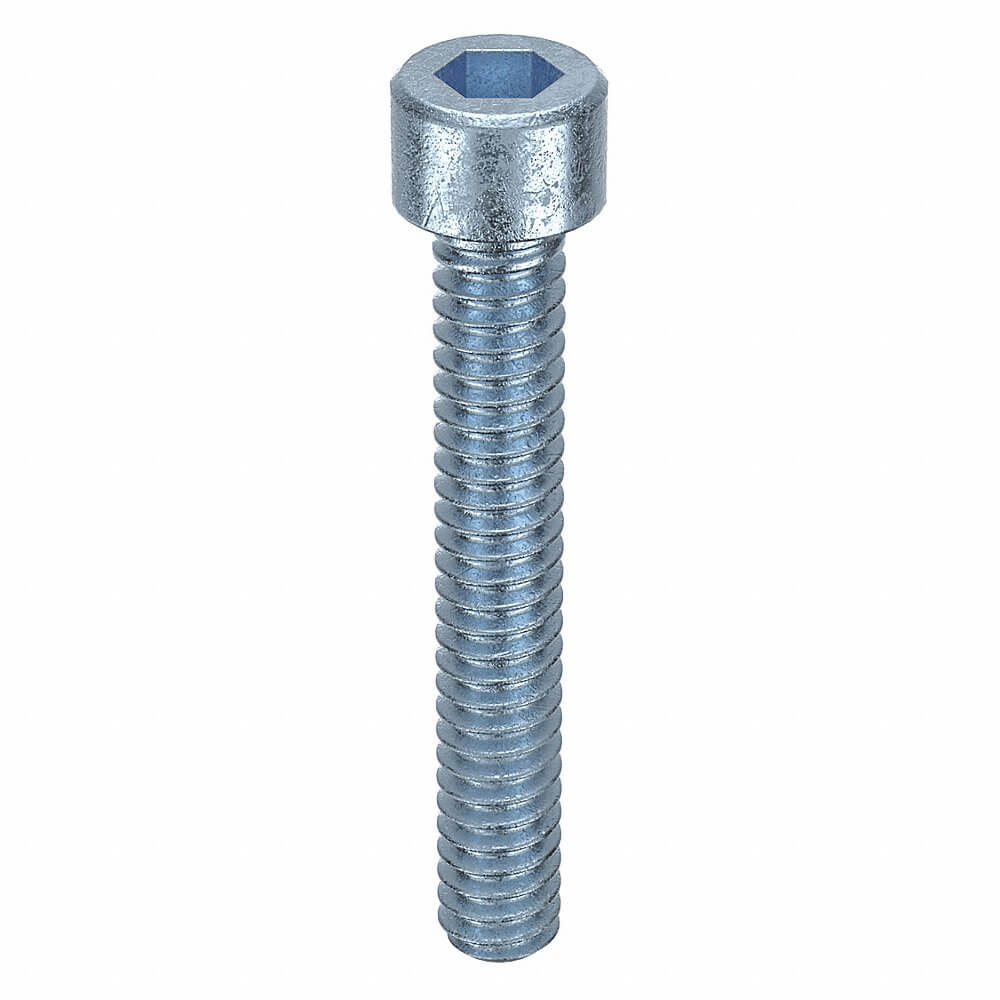

| D | U07001.011.0075 | #4-40 | Fully Threaded | 3/32" | 1/4" | 0.112" | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | $21.89 | |

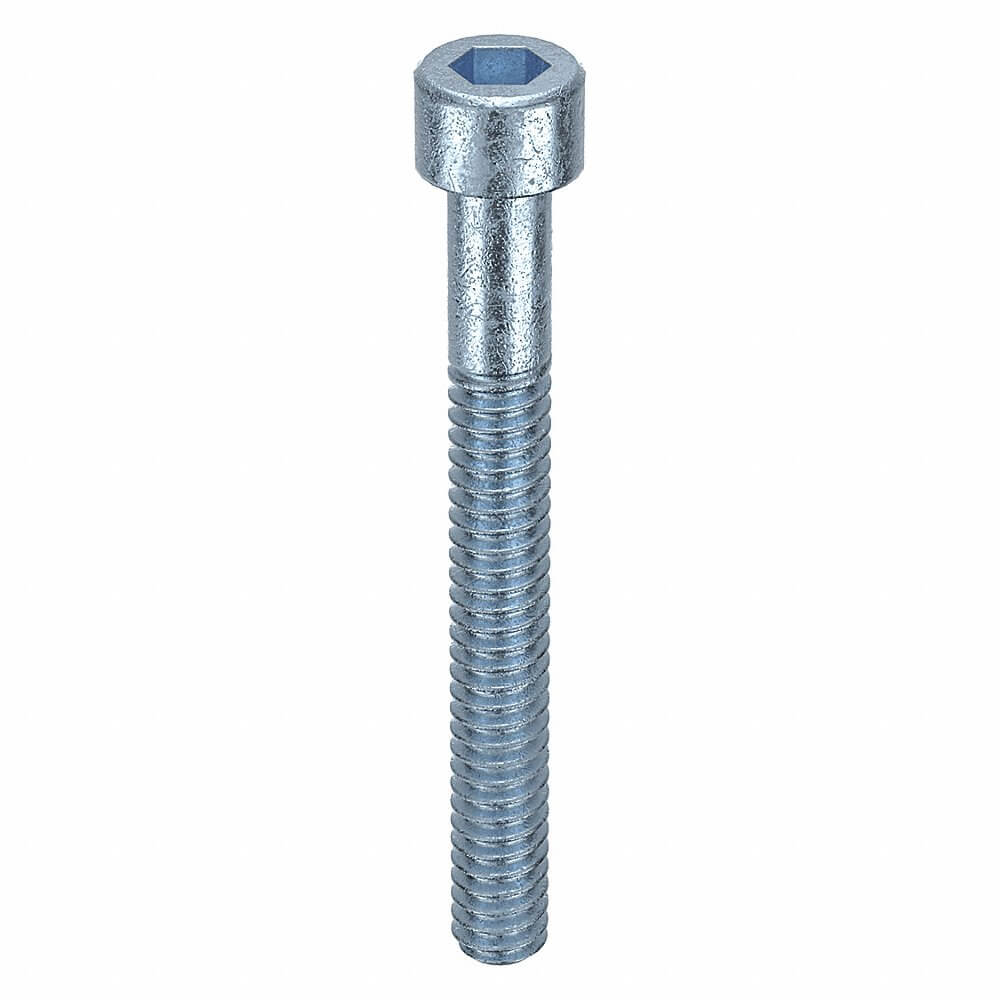

| E | U07001.011.0100 | #4-40 | Partially Threaded | 3/32" | 1/4" | - | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | $71.41 | |

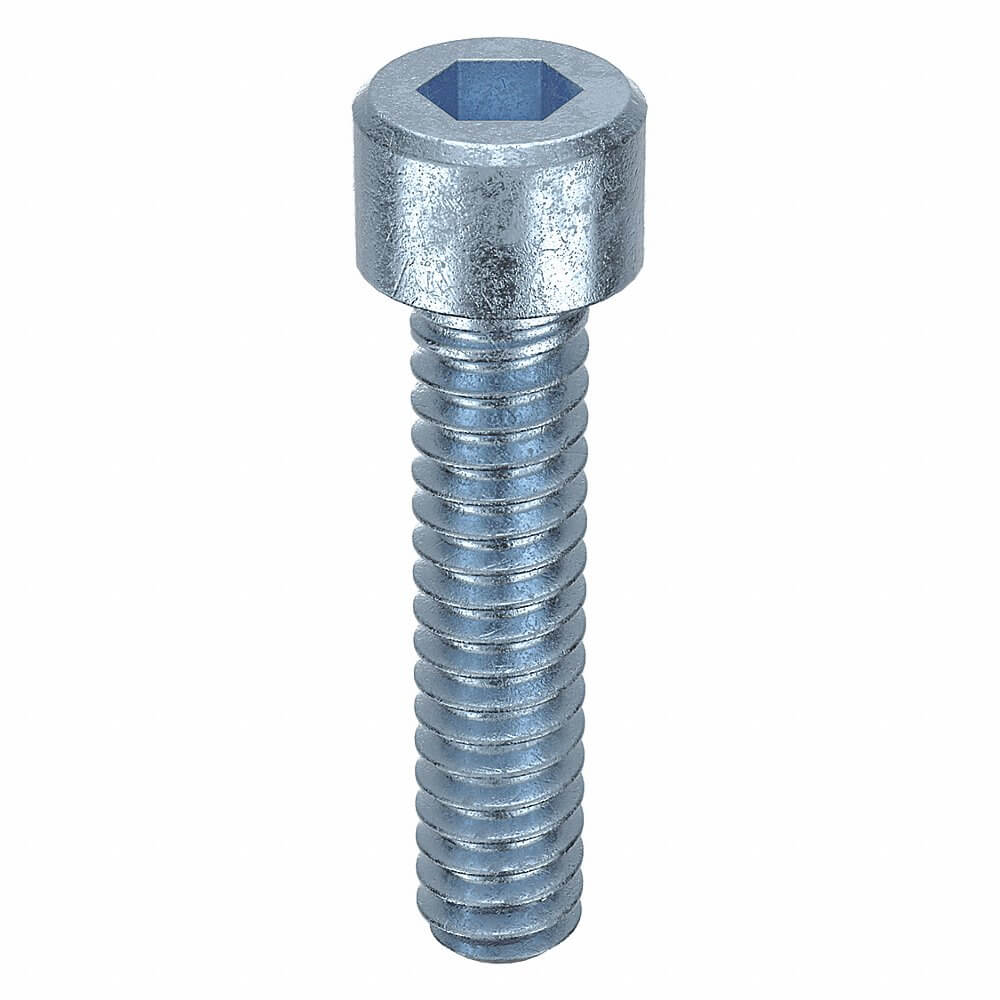

| F | U07001.013.0062 | #6-32 | Fully Threaded | 7/64" | 1/4" | 1/8" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | $19.81 | |

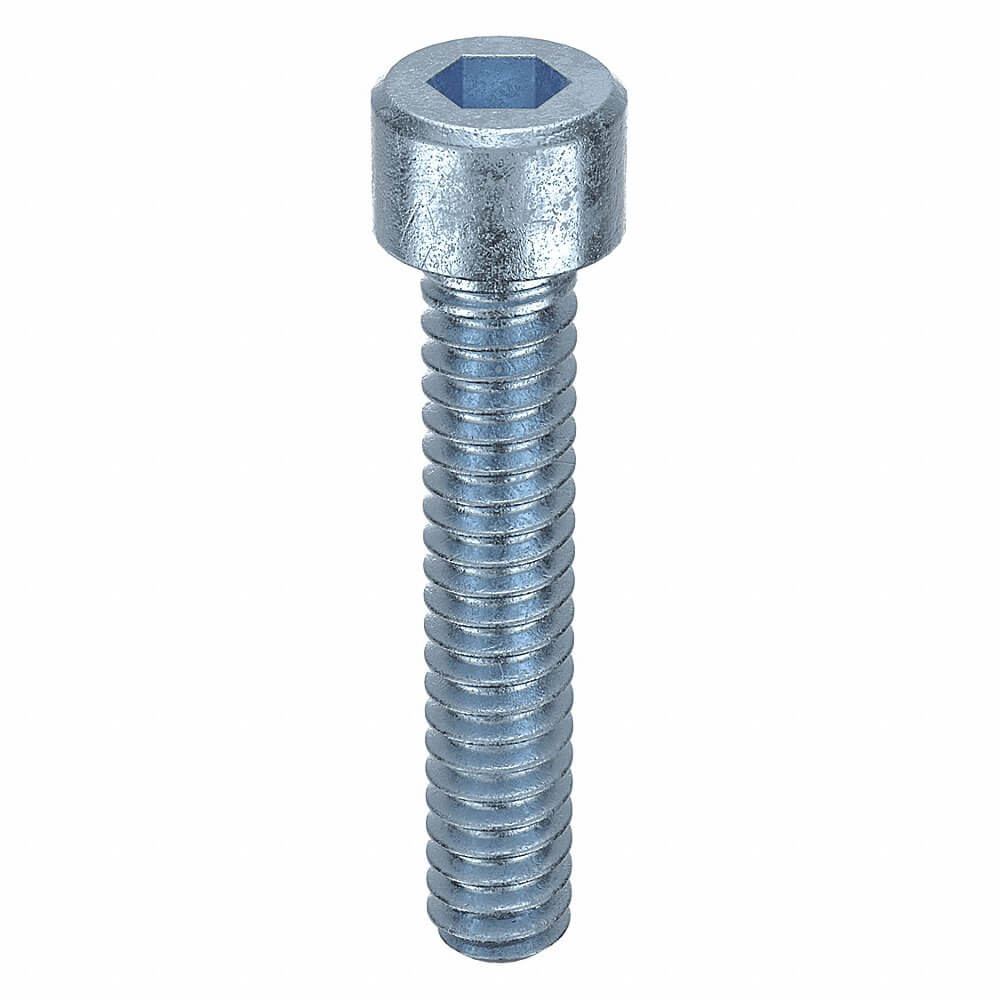

| G | U07001.013.0075 | #6-32 | - | 7/64" | 0.226" | 0.138" | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | $20.67 |
