| Item | Plug In Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240vac | 10 kA |
| Amps | 100A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series AQ |
| Dc Voltage Rating | Not Rated |
| Depth | 2.38" |
| For Use With | Power Mark Gold Load Centers And Aq Lighting Panels |
|---|---|
| Frame Size | 100A, THQ |
| Length | 3 7/25" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 6 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 3" |
| Height (cm) | 8.57 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 7.62 |
| HS Code | 8536308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.485 |
| Style | Model | Phase | Number Of Poles | Amps | Max. Air Rating | Circuit Breaker Type | Max. Wire Size | Min. Wire Size | Dc Voltage Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

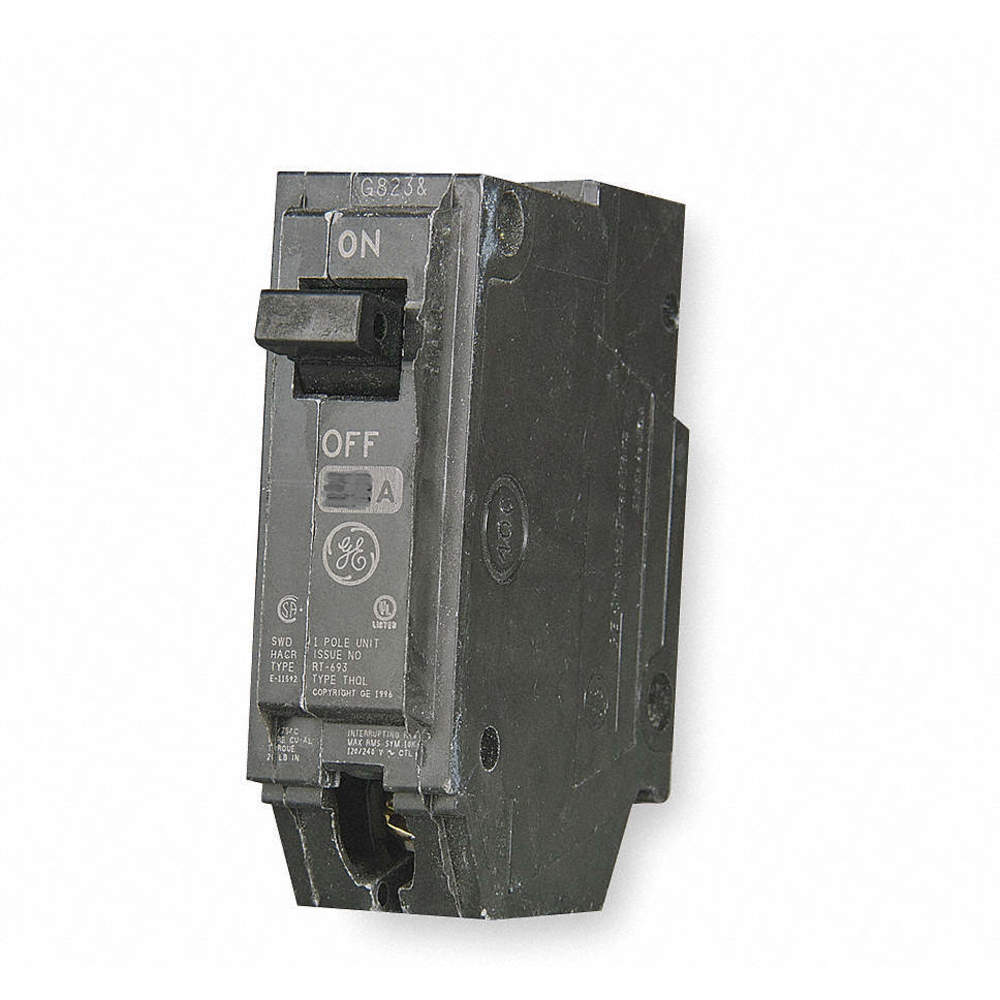

| A | THHQL1120 | Single | 1 | 20A | 22 kA At 120/240V AC | - | 8 AWG | 14 AWG | 48V | $32.57 | |
| A | THHQL1130 | Single | 1 | 30A | 22 kA At 120/240V AC | High Interrupting Capacity | 3 AWG | 8 AWG | Not Rated | $32.57 | |
| B | THQL32070 | Three | 3 | 70A | 10 kA At 120/240V AC | Standard | 1/0 AWG | 6 AWG | Not Rated | $142.07 | |
| C | THQL32080 | Three | 3 | 80A | 10 kA At 120/240V AC | Standard | 1/0 AWG | 6 AWG | Not Rated | $162.48 |
