| Item | Plug In Circuit Breaker |
|---|---|
| Air @ 120v Ac | 10 kA |
| Amps | 70A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series AQ |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.38" |
| For Use With | Power Mark Gold Load Centers And Aq Lighting Panels |
| Frame Size | 100A, THQ |
| Length | 3 7/25" |
|---|---|
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | 140°F |
| Min. Wire Size | 6 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 2" |
| Height (cm) | 8.57 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 5.08 |
| HS Code | 8536308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2925 |
| Style | Model | Number Of Poles | Max. Air Rating | Circuit Breaker Type | Amps | Phase | Depth | Terminal Connection Type | Air @ 120v Ac | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | THQL2160 | 2 | 10 kA At 120/240V AC | Standard | 60A | Single | 2.38" | Lug | 10 kA | $34.25 | |
| A | THQL2180 | 2 | 10 kA At 120/240V AC | Standard | 80A | Single | 2.38" | Lug | 10 kA | $86.16 | |
| A | THQL2190 | 2 | 10 kA At 120/240V AC | Standard | 90A | Single | 2.38" | Lug | 10 kA | $86.16 | |
| B | THQL21WY15 | 2 | 10 kA At 120/240V AC | Switched Neutral | 15A | Single | 2.38" | Screw Clamp | 10 kA | $127.80 | |
| B | THQL21WY20 | 2 | 10 kA | Switched Neutral | 20A | - | 2.38" | Screw Clamp | 10 kA | $127.80 | |
| B | THQL21WY30 | 2 | 10 kA At 120/240V AC | Switched Neutral | 30A | Single | 2.38" | Screw Clamp | 10 kA | $127.80 | |

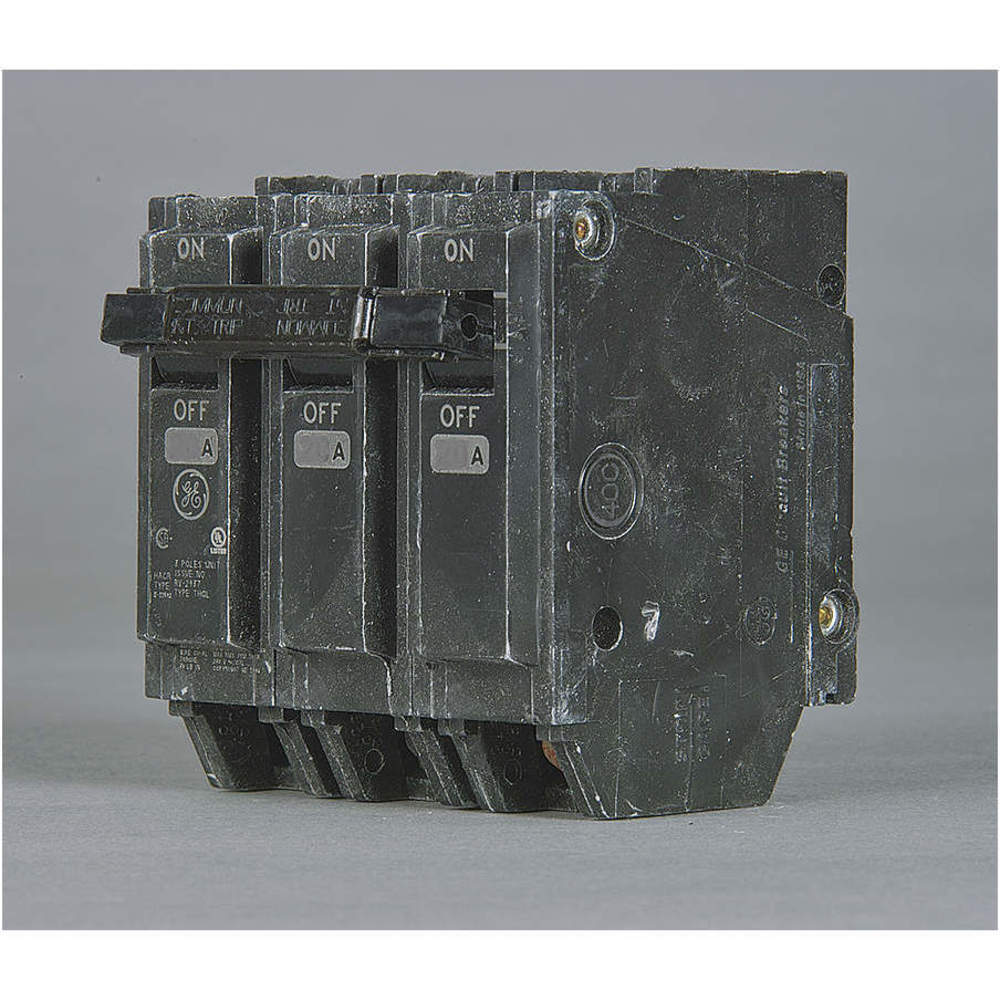

| C | THQL32020 | 3 | 10 kA At 120/240V AC | Standard | 20A | Three | 2.38" | Screw Clamp | 10 kA | $115.98 |
