| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 0.6/0.4A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 3.7" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.6/0.4A |
| Hp | 1/100 hp, 1/250 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 7" |
| Length | 5.26" |
| Length Less Shaft | 4 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Oem Replacement |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Welded Bolt |
| Mounting Type | Round Belly Band |
| Nameplate Rpm | 1540/1390 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/100 hp to 1/250 hp |
| Output Kw | 0.01 kW |
| Overall Length | 5 1/4" |
| Phase | 1 |
| Rpm | 1540/1390 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.312" |
| Shaft Extension Size | 1.15" |
| Shaft Length | 1 1/8" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | None |
| Thermal Protection | Automatic , Yes |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 8.59 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 8.59 |
| HS Code | 8501104020 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.62 |
| Style | Model | Motor Enclosure Design | Voltage | Hp | Full Load Amps | Mounting Type | Motor Type | Nameplate Rpm | Thermal Protection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D129 | OAO | 115V | 1/125 hp, 1/200 hp | 0.5/0.3A | Extended Studs | Shaded Pole | 1500 RPM | Impedance | $294.79 | |
| B | D1119 | OAO | 240V | 1/90 hp | 0.4A | Extended Studs | Shaded Pole | 1300 RPM | Automatic | $172.21 | |
| B | D1134 | OAO | 120V | 1/50 hp, 1/65 hp, 1/30 hp | 1.1/0.8/0.6A | Extended Studs | Shaded Pole | 1300 RPM | Automatic | $211.34 | |
| C | D1139 | TEAO | 115V | 1/50 hp | 0.9A | Extended Studs | Shaded Pole | 1550 RPM | Automatic | $234.71 | |
| D | D128 | OAO | 115V | 1/40 hp, 1/50 hp, 1/80 hp | 1.3/0.9/0.7A | Extended Studs | Shaded Pole | 1500 RPM | Automatic | $227.83 | |
| E | D136 | OAO | 115V | 1/30 hp | 1.3A | Extended Studs | Shaded Pole | 1500 RPM | Automatic | $293.89 | |

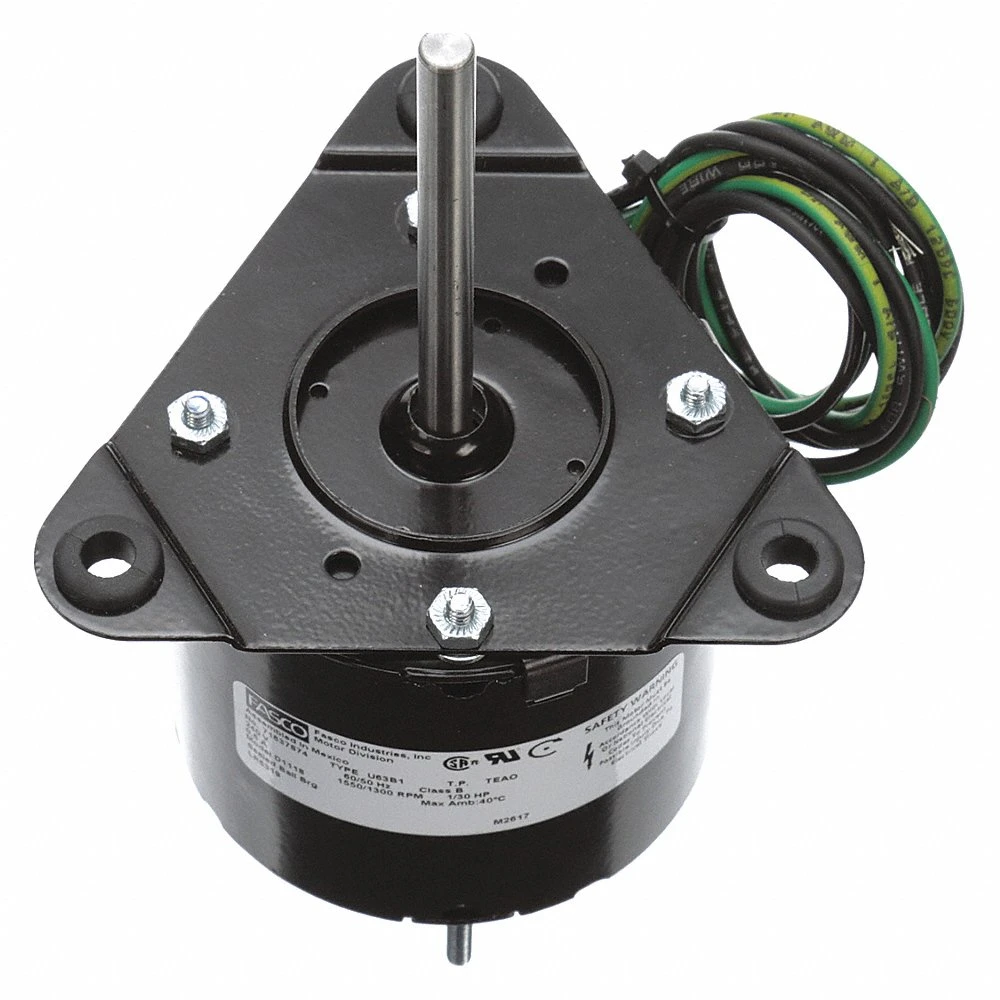

| F | D1118 | TEAO | 240V | 1/30 hp | 0.6A | Lug | Shaded Pole | 1550 RPM | Automatic | $198.27 |
