| Item | Hydraulic Press |
|---|---|
| Adjustable Bed | Yes |
| Base Depth | 36" |
| Base Length | 40 1/2" |
| Base Width | 42 3/4" |
| Capacity | 25 ton. |
| Cylinder | 2NWH8 |
| Cylinder Model Number | RC2514 |
| Cylinder Stroke | 14" |
| Cylinder Type | Single Acting |
| Dimension C | 57" |
| Dimension D | 11 22/25" |
| Dimension E | 29" |
| Dimension F | 40 1/2" |
| Dimension G | 4" |
| Dimension H | 13 1/4" |
| Dimension J | 30" |
| Dimension K | 5 1/4" |
| Dimension L | 10.69" |
| Dimension M | 26 1/2" |
| Dimension N | 76" |
| Distance Between Uprights | 29" |
| Features | For Intermittent Use |
| Frame Capacity | 25 ton. |
| Frame Type | Half Frame |
| Hydraulic Hose Length | 6 ft. |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force And Pressure Gauge, Hydraulic Hand Pump |
| Max. Bed Width | 29" |
| Max. Operating Pressure | 10000 psi |
| Max. Ram Press Speed | 34 in./sec. |
|---|---|
| Max. Ram-to-table Distance | 54 1/2" |
| Max. Vertical Daylight | 54 1/2" |
| Maximum Bed Width | 29" |
| Maximum Ram Press Speed | 34 in./sec. |
| Min. Dimension A | 7" |
| Mx. Dimension A | 54 1/2" |
| Operating Pressure | 10000 psi |
| Operation | Manual |
| Overall Depth | 36" |
| Overall Height | 89 1/4" |
| Overall Length | 30" |
| Overall Width | 42 3/4" |
| Power Source | Manual |
| Power Source Type | Manual |
| Press Bed Depth | 10 3/4" |
| Press Bed Width | 29" |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Handle Effort @ Rated Capacity | 77 lbs. |
| Pump Model Number | P80 |
| Pump Type | Manual |
| Ram Advance Speed - Maximum | 5 in./sec. |
| Ram-to-table Distance - Minimum | 7" |
| Reservoir Capacity | 134 cu. in. |
| Stroke | 5" |
| Strokes To Extend Piston 1 In | 5 |
| Width Between Table Channels | 4" |
| Working Width | 29" |
| Height (cm) | 96.52 |
|---|---|
| Length (cm) | 198.12 |
| Width (cm) | 134.62 |
| HS Code | 8462918090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 245.25 |
| Style | Model | Pump Type | Cylinder Type | Frame Type | Stroke | Overall Height | Overall Length | Frame Capacity | Cylinder Stroke | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

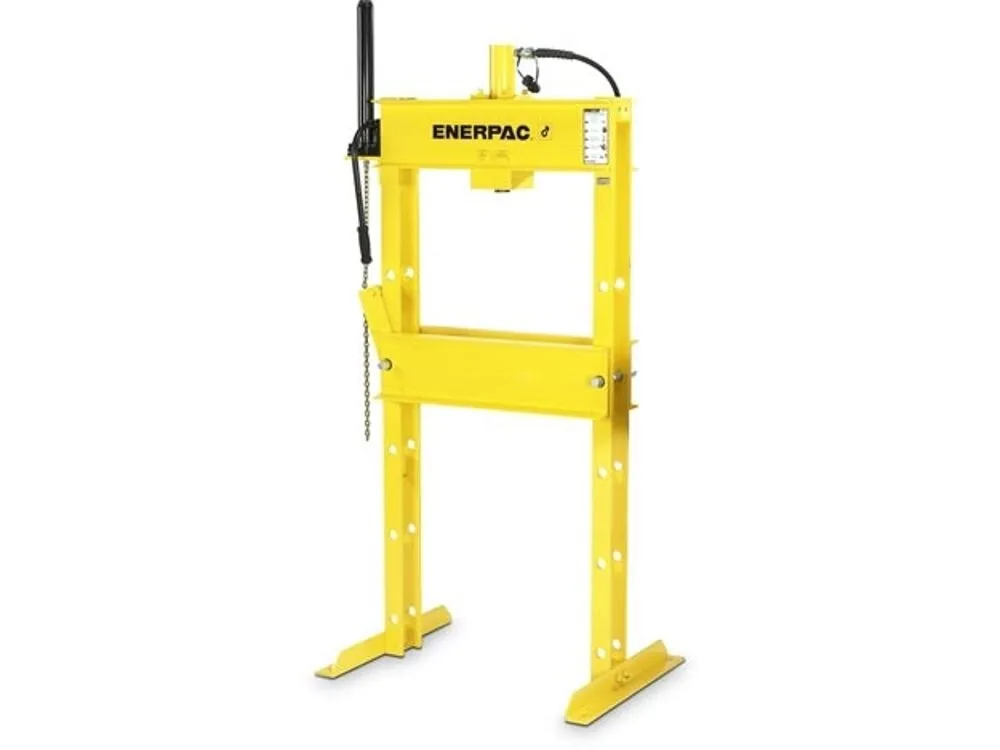

| A | IPE1215 | Electric | Single Acting | - | 1" | - | 29 3/4" | - | 10" | $12,722.20 | |

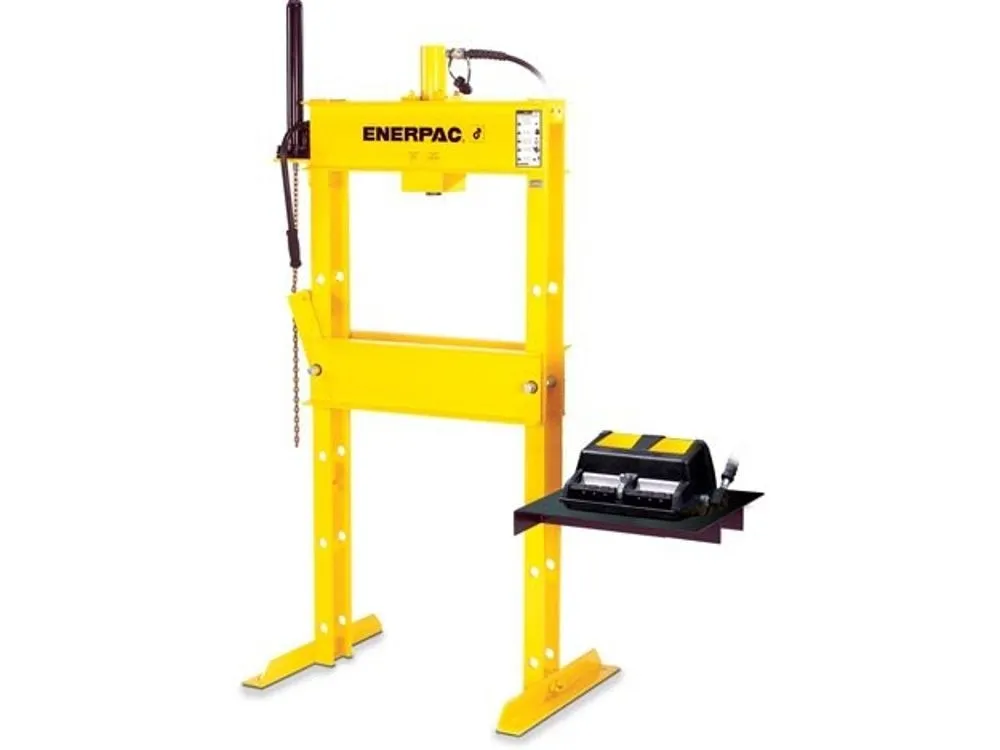

| B | IPA1220 | Air | Single Acting | Half Frame | - | 52" | - | - | 10" | $6,103.62 | |

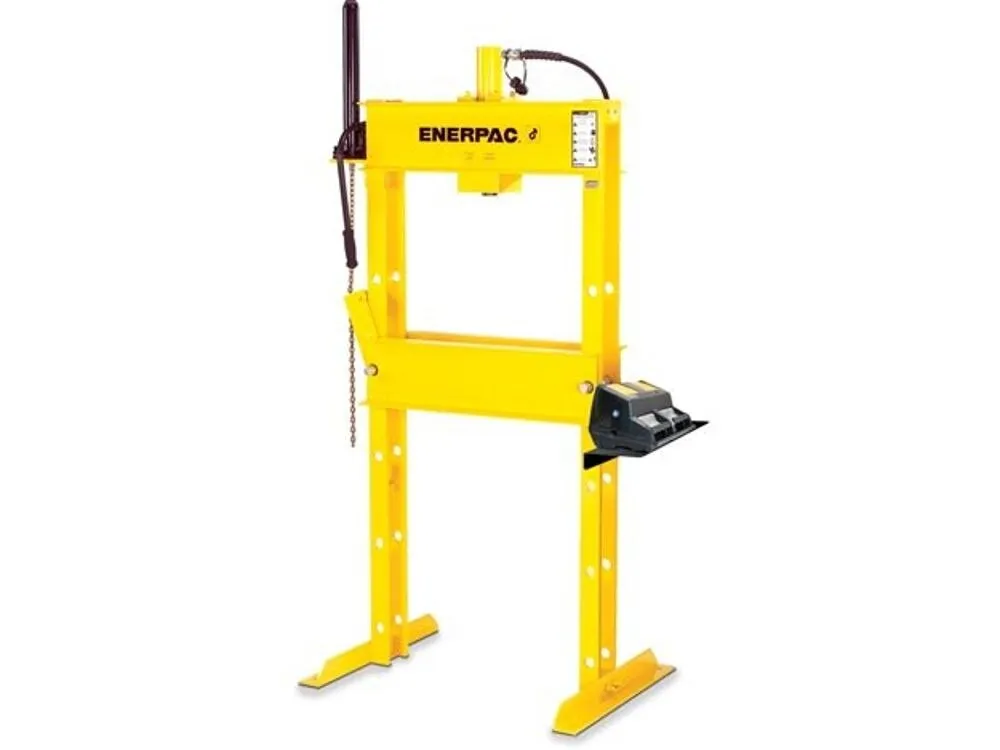

| C | IPA2520 | Air | Single Acting | Half Frame | 2 1/2" | 89 1/4" | 30" | 25 ton. | 14" | $15,522.69 | |

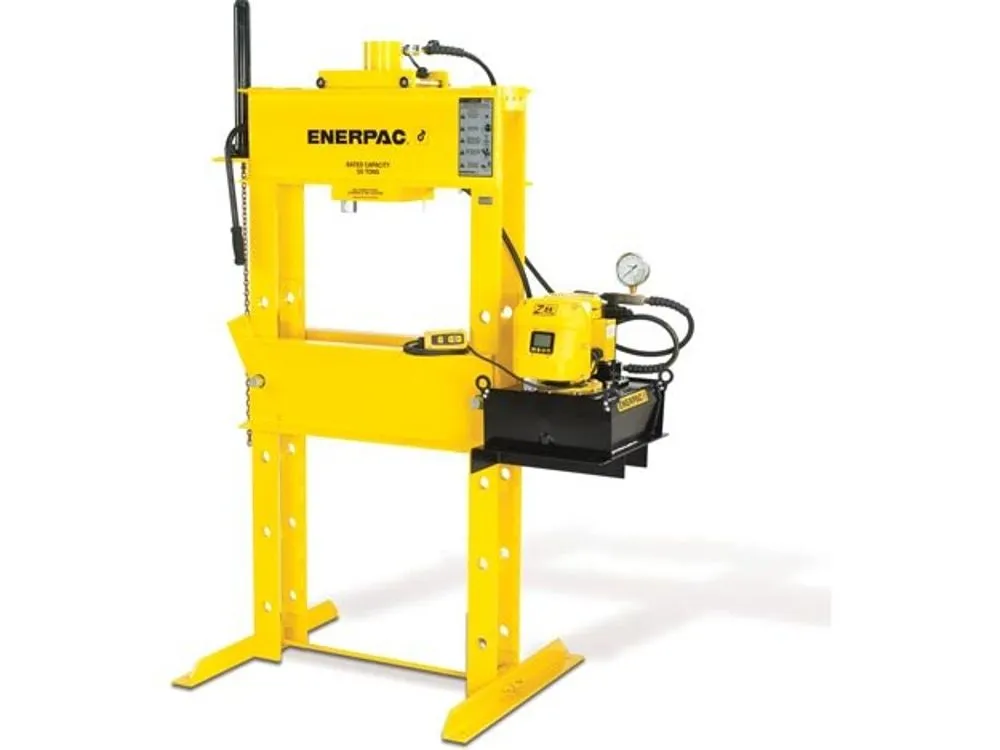

| D | IPE10060 | Electric | Double Acting | Half Frame | 2" | 84 3/4" | 36" | - | 13" | $53,955.59 | |
| D | IPE5060 | Electric | Double Acting | Half Frame | 1.1" | 84 3/4" | 36" | - | 13" | $38,769.84 | |

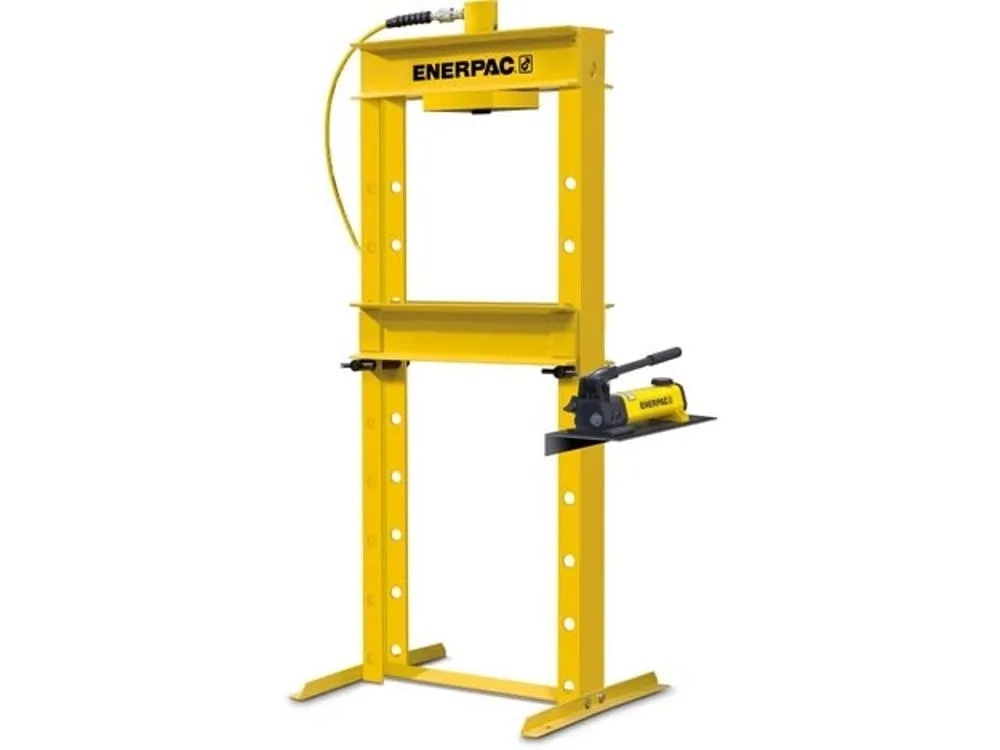

| E | IPH1240 | Manual | Single Acting | Half Frame | 10" | 52" | - | - | 10" | $5,074.96 | |
| A | IPA10023 | Air | Single Acting | H Frame | 1 1/2" | 84 3/4" | 36" | - | 10" | $41,284.46 |
