| Item | Hydraulic Cylinder |
|---|---|
| Body Material | Steel |
| Body Thread | 2 1/8"-16 |
| Cylinder Type | Threaded Body |
| Dimension A | 3.37" |
| Dimension B | 2 4/5" |
| Dimension C1 | 0.67" |
| Dimension D1 | 2.02" |
| Dimension E | 0.71" |
| Dimension E1 | 0.67" |
| Dimension F | 1.87" |
| Dimension L Retract | 0.65" |
| Dimension M Extend | 0.39" |
| Dimension P | 0.26" |
| Dimension S | 0.62" |
| Dimension T | 0.47" |
| Effective Pull Area | 0.82 sq. in. |
| Effective Push Area | 1.22 sq. in. |
| Extended Height | 3.39" |
| Function | Double Acting |
| Material | Steel |
|---|---|
| Material Of Construction | Steel |
| Max. Cylinder Capacity Advance | 6110 lbs. |
| Max. Cylinder Capacity Retract | 4080 lbs. |
| Mounting Style | Threaded Body |
| Oil Capacity Pull | 0.48 cu. in. |
| Oil Capacity Push | 0.72 cu. in. |
| Outside Dia. | 2.5" |
| Plunger Thread Size | 3/8"-16 |
| Plunger Type | Solid |
| Pressure Range | 580 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Push Capacity @ 5000 Psi | 6110 lbf. |
| Retracted Height | 2 4/5" |
| Seal Material | Polyurethane, Buna N |
| Single Acting/double Acting | Double Acting |
| Stroke | 0.59" |
| Stroke Length | 1/2" |
| Type | Threaded Body |
| Height (cm) | 9.65 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 11.94 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.1205 |
| Style | Model | Retracted Height | Outside Dia. | Stroke | Dimension A | Dimension D1 | Dimension E | Dimension F | Max. Cylinder Capacity Advance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

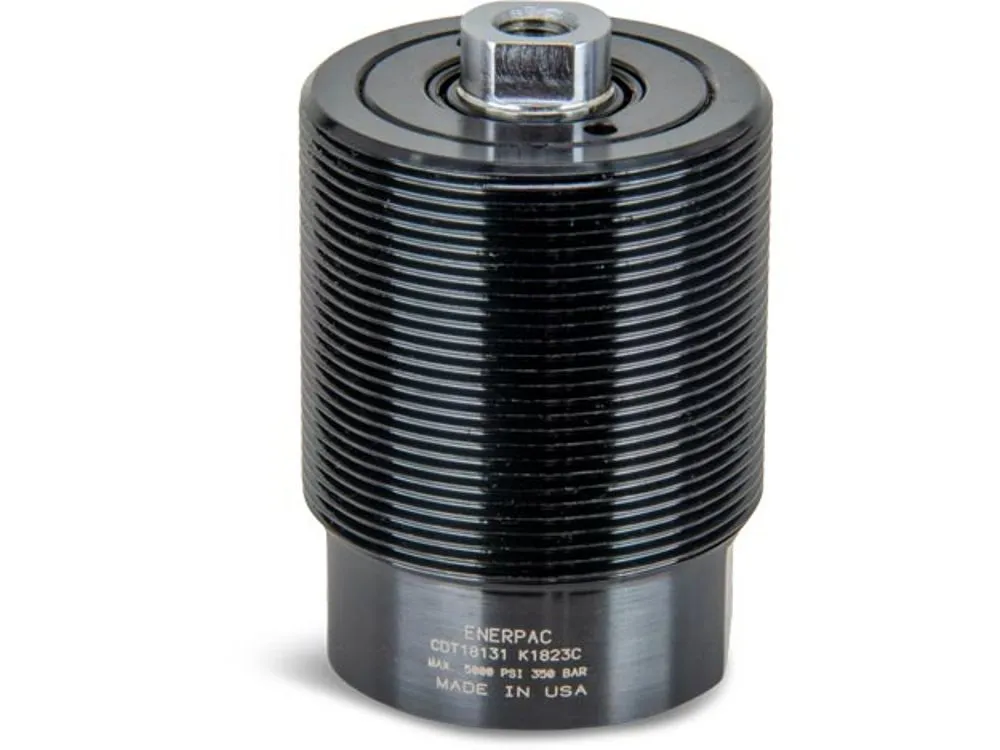

| A | CDT18131 | 2 17/25" | 1.875" | 0.51" | 3.19" | 1.73" | 0.63" | 1.61" | 3900 lbs. | $508.60 | |
| B | CDT18251 | 3.23" | 1.875" | 0.98" | 4.21" | 1.73" | 0.63" | 1.61" | 3900 lbs. | $555.01 | |

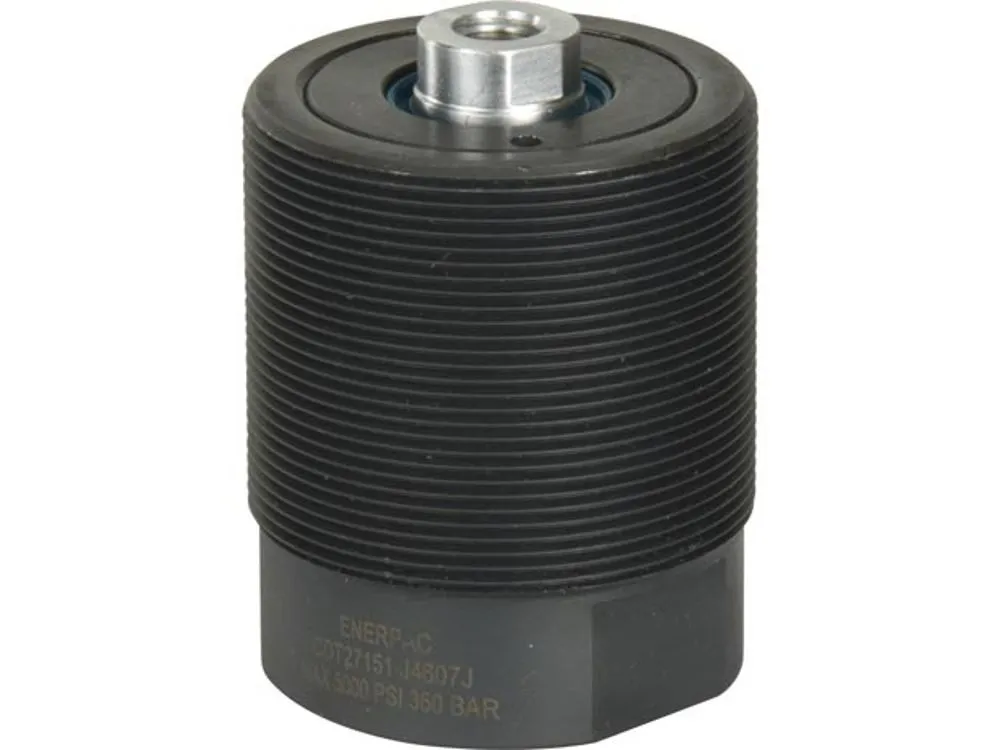

| C | CDT27251 | 3.23" | 2.5" | 0.98" | 4 1/5" | 2.02" | 0.71" | 1.87" | 6110 lbs. | $722.77 |
