| Item | Male Elbow, 90 Degrees |
|---|---|
| Application | Air, Chemicals, Non-Potable Water, Pharmaceutical |
| Barb Size | 1" |
| Barb Style | Single Barb |
| Basic Material | Plastic |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Polyvinylidene Chloride |
| Color | White |
| Connection Type | Barbed x MNPT |
| Fitting Material | PVDF |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 1" |
| Fitting Side B Connection Type | MNPT |
|---|---|
| Fitting Side B Pipe Size | 1" |
| Hex Size | 1.383" |
| Max. Pressure | 260 psi |
| Maximum Operating Pressure | 260 psi @ 70°F |
| Maximum Operating Temperature | 226°F |
| Minimum Operating Temperature | 80°F |
| Pipe Size | 1" |
| Resistance Properties | Chemical Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Temp. Range | -80°F to +226°F |
| Standards | ROHS, USP CLASS VI |
| Height (cm) | 5.59 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 12.7 |
| HS Code | 3917400090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1868 |
| Style | Model | Pipe Size | Barb Size | Fitting Side A Connection Type | Color | Fitting Material | Fitting Side B Connection Type | Fitting Side A Tube Inner Diameter | Fitting Side B Pipe Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | L1032-1BN | - | 1/16" | UNF | Black | Nylon | Barbed | - | - | 10 | $20.63 | |
| B | L16-16BN | 1" | 1" | Barbed | Black | Nylon | MNPT | 1" | 1" | 10 | $33.74 | |
| B | L4-5BN | 1/4" | 5/16" | Barbed | Black | Nylon | MNPT | 5/16" | 1/4" | 10 | $20.06 | |
| B | L6-5BN | 3/8" | 5/16" | Barbed | Black | Nylon | MNPT | 5/16" | 3/8" | 10 | $23.16 | |
| B | L8-4BN | 1/2" | 1/4" | Barbed | Black | Nylon | MNPT | 1/4" | 1/2" | 10 | $22.16 | |
| A | L12-12NK | 3/4" | 3/4" | Barbed | White | PVDF | MNPT | 3/4" | 3/4" | 5 | $77.16 | |

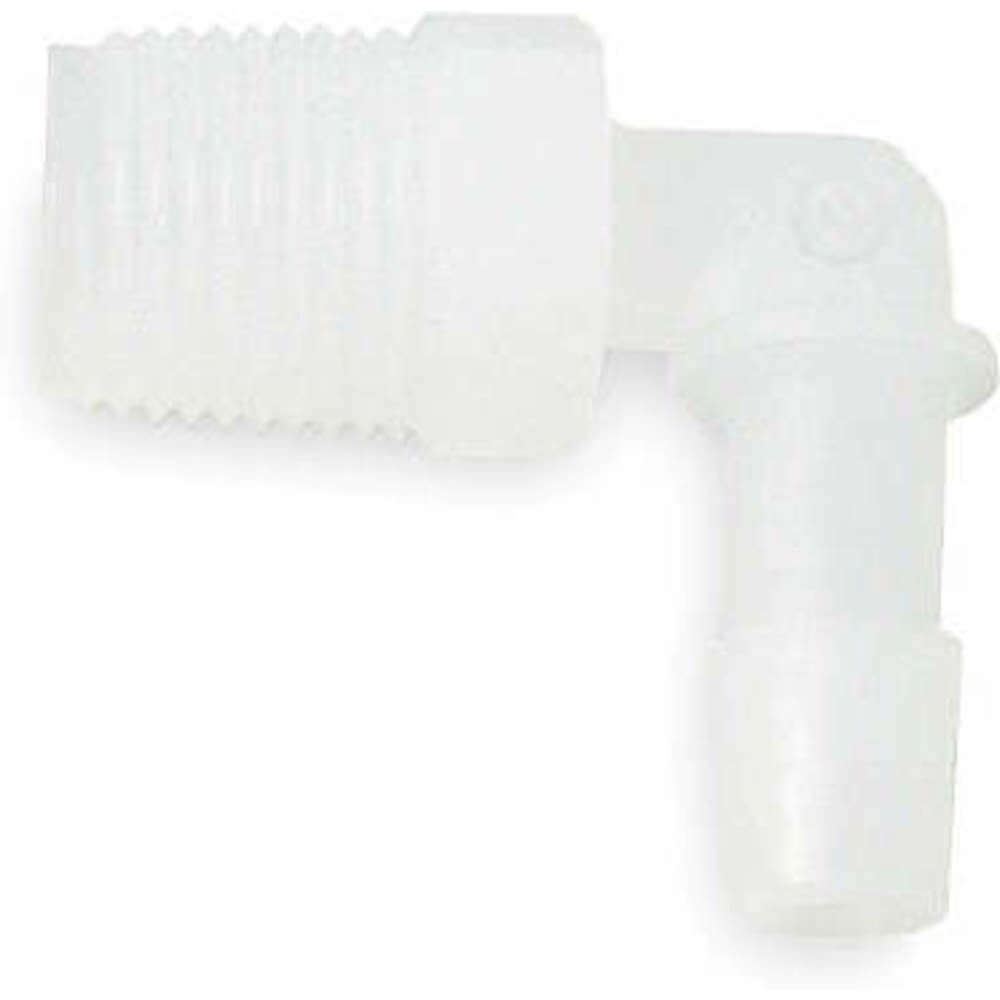

| C | L4-4NK | 1/4" | 1/4" | Barbed | White | PVDF | MNPT | 1/4" | 1/4" | 5 | $40.77 |
