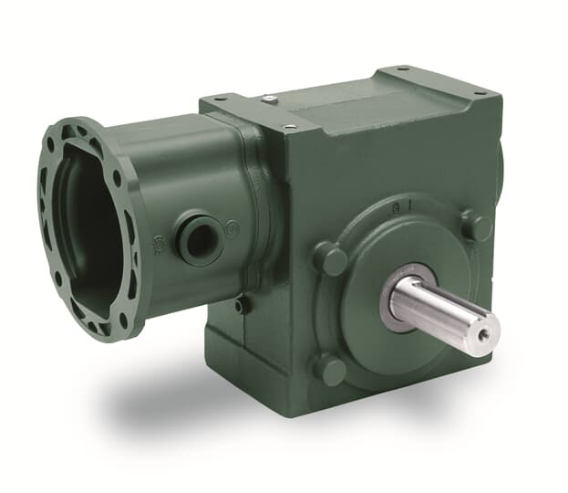

| Item | Reducer |
|---|---|
| Base To Output Center Height | 2.87" |
| Case Size | 26 |
| Center Distance | 2.63" |
| Center To End Of Shaft Distance | 5.63" |
| Color | Green |
| Frame Size | 180 |
| Gear Box | 26 |
| Gear Ratio | 10 |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Hp Rating Input | 4 83/100 hp |
| Hp Rating Output | 4.37 hp |
| Input Flange | 180TC |
| Input Style | 3 Piece Coupled |
| Lubrication Type | PAG, Standard Temperature |
| Mfr. Series | Tigear II Series |
| Motor Compatibility | NEMA Motor, 180TC Frame |
| Mounting Bolt Pattern Length | 6.38" |
| Mounting Bolt Pattern Width | 3.38" |
|---|---|
| Nominal Ratio | 10 |
| Output Shaft Center To Input Motor Mounting Face Distance | 9 14/25" |
| Output Style | Right |
| Output Type | Right Solid B |
| Overhung Load | 1610 lbf. |
| Paint Type | Standard |
| Rated Torque Output | 1576 lbs.-in. |
| Ratio | 10:1 |
| Seal Type | Single Lip Contact |
| Shaft Dia. | 1 1/4" |
| Shaft Dia. Output | 1 1/8" |
| Shaft Key (in.) | No |
| Shaft Length | No |
| Shaft Length Output | 2.67" |
| Shaft Output Type | Right Solid B |
| Suitable For Washdown | No |
| Thermal Hp Rating | 5.61 hp |
| Height (cm) | 23.88 |
|---|---|
| Length (cm) | 28.45 |
| Width (cm) | 27.94 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 31.05 |
| Style | Model | shaft dia. | gear ratio | output style | ratio | frame size | output type | finish | center distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 26A05LR14 | 1 1/4" | 5 | Left, Right | 5:1 | 140 | Double Solid | - | 2.63" | $2,284.30 | |
| A | 26A10LR14 | 1 1/4" | 10 | Left, Right | 10:1 | 140 | Double Solid | - | 2.63" | $2,284.30 | |
| A | 26A20LR14 | 1 1/4" | 20 | Left, Right | 20:1 | 140 | Double Solid | - | 2.63" | $2,284.30 | |
| A | 26A40LR14 | 1 1/4" | 40 | Left, Right | 40:1 | 140 | Double Solid | - | 2.63" | $2,284.30 | |
| - | 26A07LR14WP | 1 1/4" | - | Left, Right | 7:1 | - | - | White Epoxy | 2.63" | $2,447.13 | |
| - | 26A15LR18WP | 1 1/4" | - | Left, Right | 15:1 | - | - | White Epoxy | 2.63" | $2,573.04 | |
| A | 26A40LR56 | 1 1/4" | 40 | Left, Right | 40:1 | 56 | Double Solid | - | 2.63" | $2,284.30 |
