| Item | Multi-Stage Booster Pump |
|---|---|
| Amps | 5.6/2.8A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 23 to 6 GPM @ 148 to 328 ft. |
| Best Efficiency Flow Rate @ Head | 16 GPM @ 240 ft. |
| Best Efficiency Flow Rate @ Psi | 16 GPM @ 104 Psi |
| Best Efficiency Pressure | 104 psi |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/4" |
| Connector Size | 1/2" |
| Connector Type | BSP |
| Diffuser Material | Stainless Steel |
| Discharge Flange Size | 1 1/4" |
| Discharge Type | Flange |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 100 Psi | 16 GPM |
| Flow Rate @ 120 Psi | 12 GPM |
| Flow Rate @ 140 Psi | 4 GPM |
| Flow Rate @ 60 Psi | 22 GPM |
| Flow Rate @ 70 Psi | 20.5 GPM |
| Flow Rate @ 80 Psi | 19 GPM |
| Flow Rate @ 90 Psi | 17.5 GPM |
| For Media Type | Non-Abrasive Liquids, Water |
| For Use With Potable Systems | No |
| Frame | 56C |
| Frequency | 60 Hz |
| Height | 28 3/8" |
| Housing Material | Stainless Steel |
| Hp | 2 hp |
| Hp - Pumps | 2 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 1 1/4" |
| Inlet Type | Flanged |
| Intake Size | 1 1/4" |
| Intake Type | Flange |
|---|---|
| Length | 9 7/8" |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 245 psi |
| Max. Dia. Solids | 0.07" |
| Max. Media Temp. | 248°F |
| Max. Pressure | 148 psi |
| Min. Ambient Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56C |
| Motor Speed | 3450 RPM |
| Motor Type | Three Phase |
| Mounting Orientation | Vertical |
| No. Of Stages | 11 |
| Number Of Stages | 11 |
| Number Of Stages - Pumps | 11 |
| Outlet Size | 1 1/4" |
| Overall Height | 28.38" |
| Overall Length | 9 22/25" |
| Overall Width | 9" |
| Phase | 3 |
| Pump Housing Material | Stainless Steel |
| Pump Mounting Position | Horizontal |
| Pumping Application | City Water Mains, Cooling Water Systems, Irrigation |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | EPDM, Silicon Carbide, Stainless Steel |
| Seal Type | Balanced Cartridge |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 148 psi |
| Shut Off Pressure (maximum) | 148 psi |
| Solid Diameter (maximum) | 0.07" |
| Stages | 11 |
| Suction Lift | 0 ft. |
| Type | Vertical Multi Stage |
| Voltage | 208/230/460V AC |
| Wetted Material | EPDM, Silicon Carbide, Stainless Steel |
| Width | 9" |
| Height (cm) | 72.09 |
|---|---|
| Length (cm) | 25.1 |
| Width (cm) | 22.86 |
| HS Code | 8413702040 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 35.955 |
| Style | Model | Hp | Phase | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Shut Off Pressure | Pump Housing Material | Number Of Stages | Connection Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5UWH8 | 3/4 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | $1,660.28 | |
| B | 5UWJ2 | 1 1/2 hp | 1 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | $2,372.05 | |

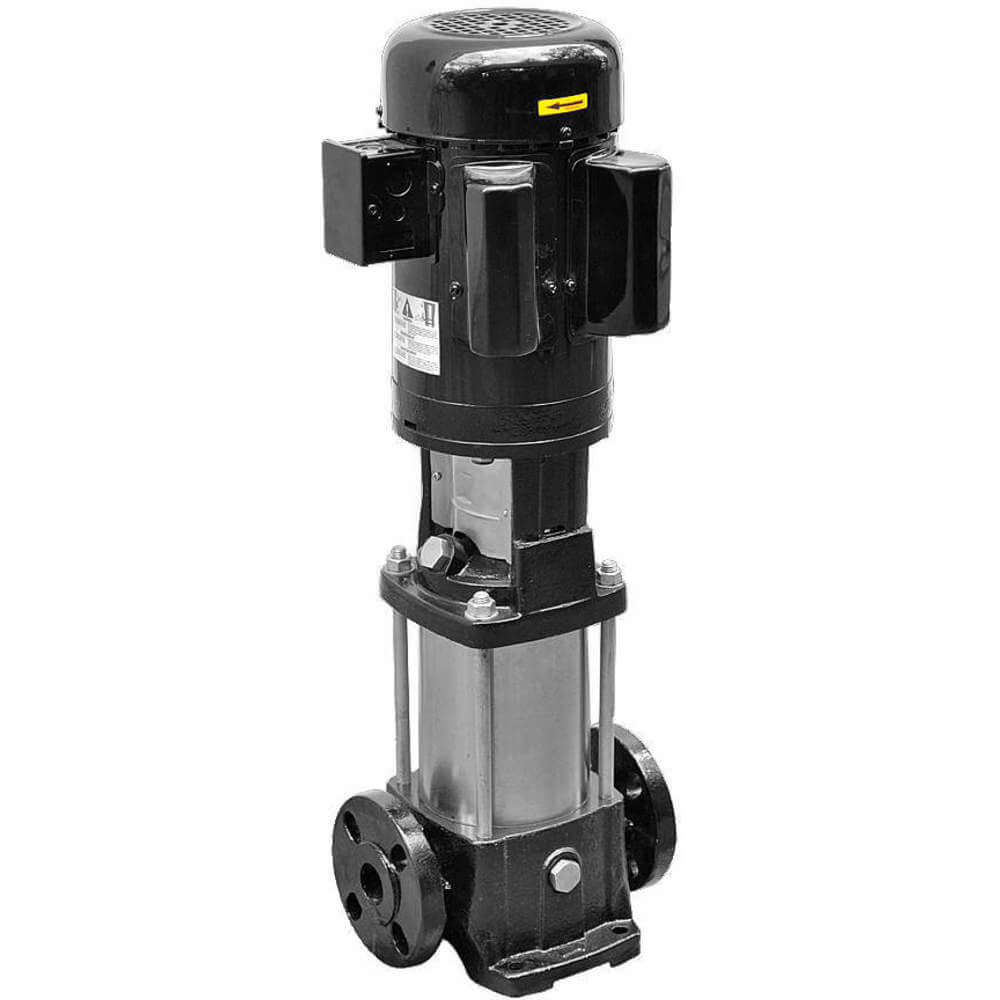

| C | 5UWJ3 | 2 hp | 1 | 1 1/4" | 1 1/4" | 148 psi | Cast Iron | 11 | Flanged | $2,957.90 | |

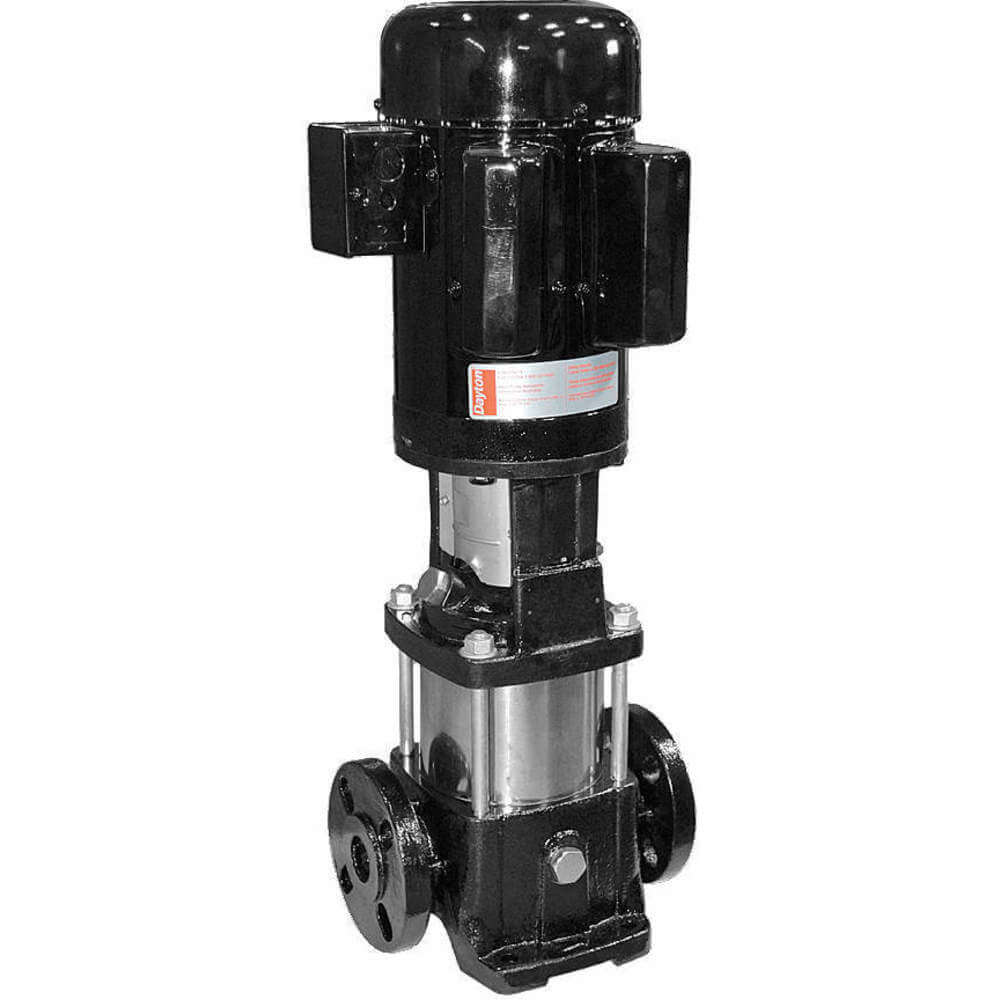

| D | 5UWJ5 | 2 hp | 1 | 1 1/4" | 1 1/4" | 70 psi | Cast Iron | 5 | Flanged | $2,687.09 | |
| E | 5UWJ7 | 1 hp | 3 | 1 1/4" | 1 1/4" | 66 psi | Cast Iron | 5 | Flanged | $1,911.92 | |

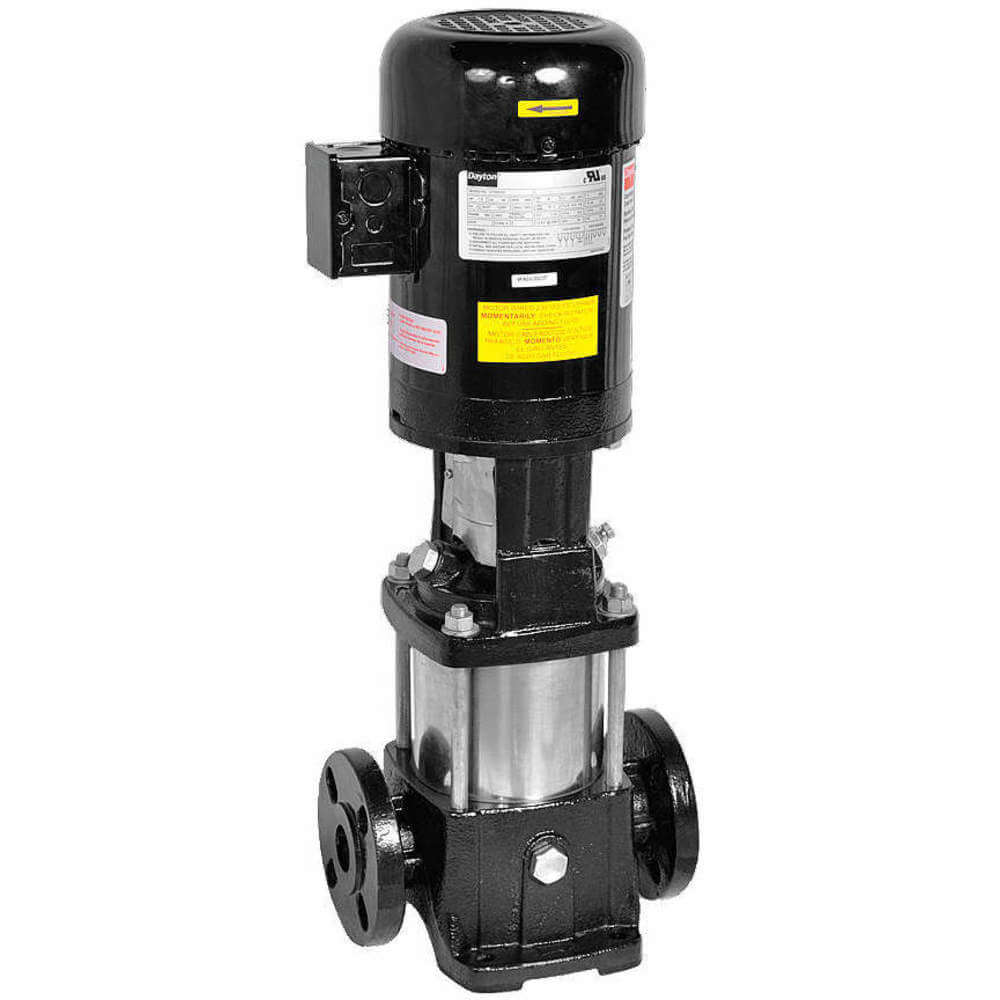

| F | 5UWJ8 | 1 1/2 hp | 3 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | $2,405.10 | |

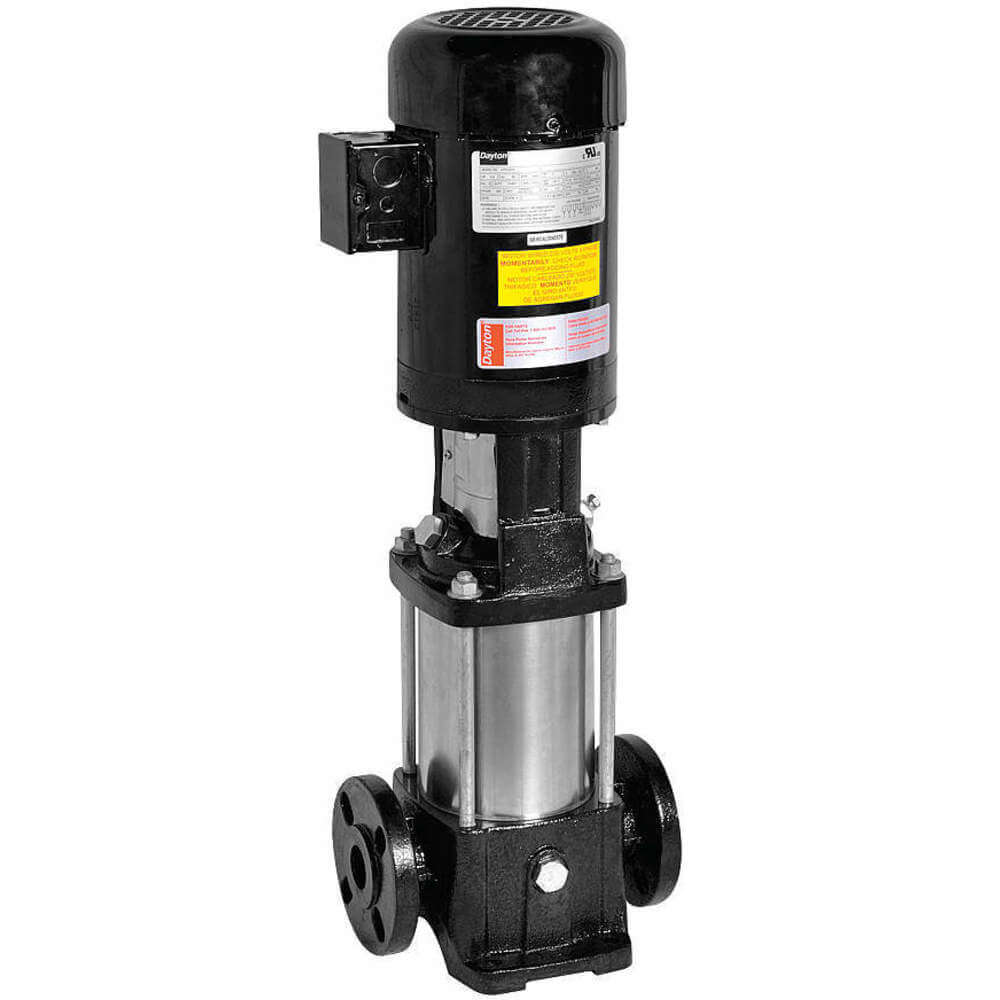

| G | 5UWJ9 | 2 hp | 3 | 1 1/4" | 1 1/4" | 148 psi | Cast Iron | 11 | Flanged | $2,502.49 |
