| Item | Auger Drive Motor |
|---|---|
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 61.2% |
| Frame | 56YZ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 8/4A |
| Hp | 1/2 hp |
| Includes | Gasketed Conduit Box And Capacitor Cover, Shaft Extension Beyond Fan Guard For Manual Cranking |
| Ins. Class | Class B |
| Length Less Shaft | 9 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 61.2% |
| Number Of Speeds | 1 |
| Overall Length | 11 9/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 3/4" |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 43.18 |
| Width (cm) | 24.38 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 12.87 |
| Style | Model | Hp | Motor Mounting Type | Frame | Motor Service Factor | Motor Shaft Design | Service Factor | Mounting Type | Frame Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

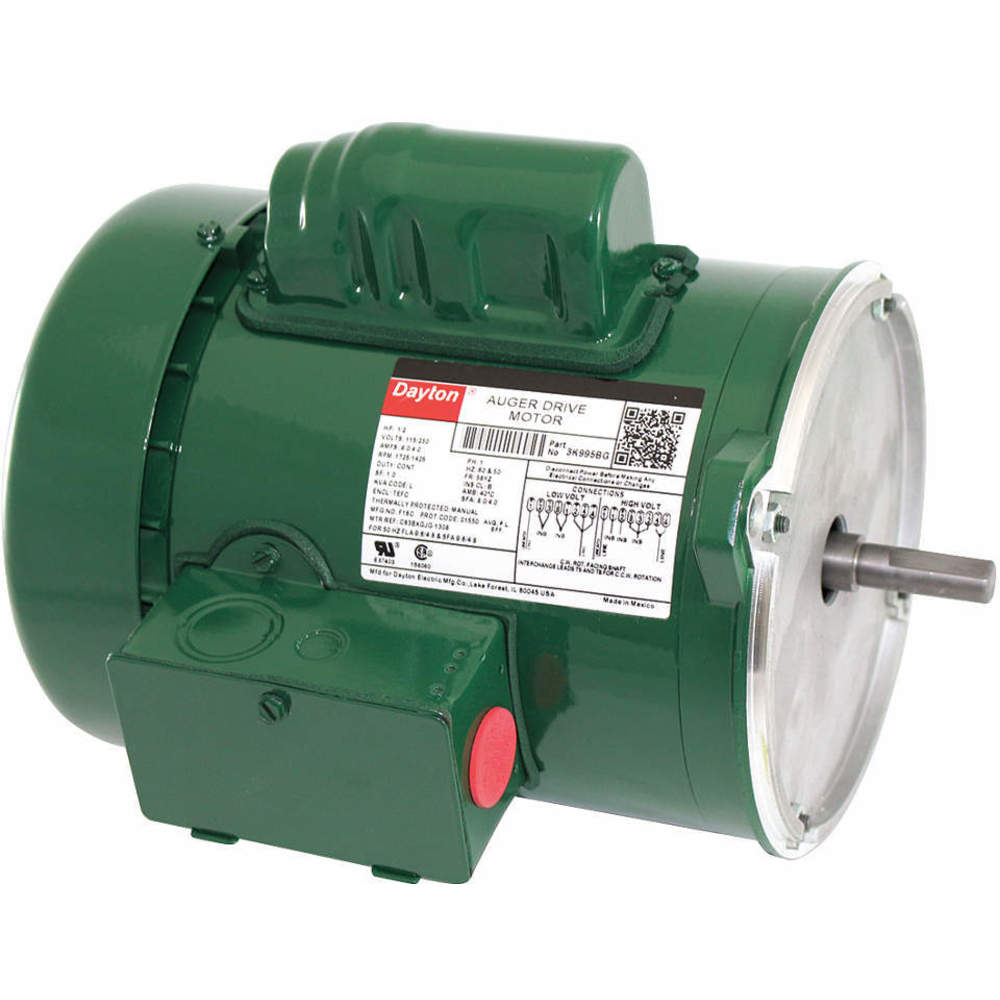

| A | 3K995 | 1/2 hp | Face | 56YZ | 1 | Flat | 1 | Flanged | Steel | $443.39 | |
| B | 3K996 | 3/4 hp | Face | 56YZ | 1 | Flat | 1 | Flanged | Steel | $504.25 | |

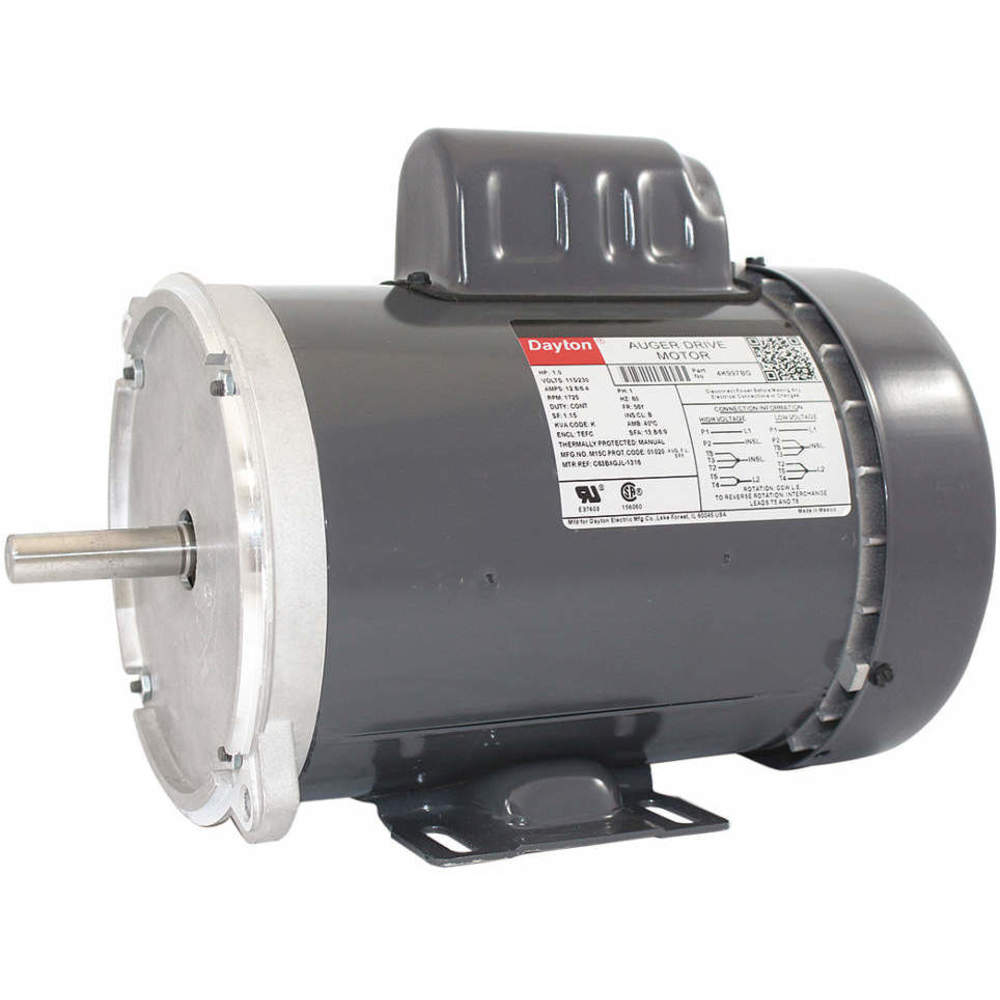

| C | 4K997 | 1 hp | Face, Base | 56Y | 1.15 | Keyed | 1.15 | Face/Base | Rolled Steel | $612.17 | |

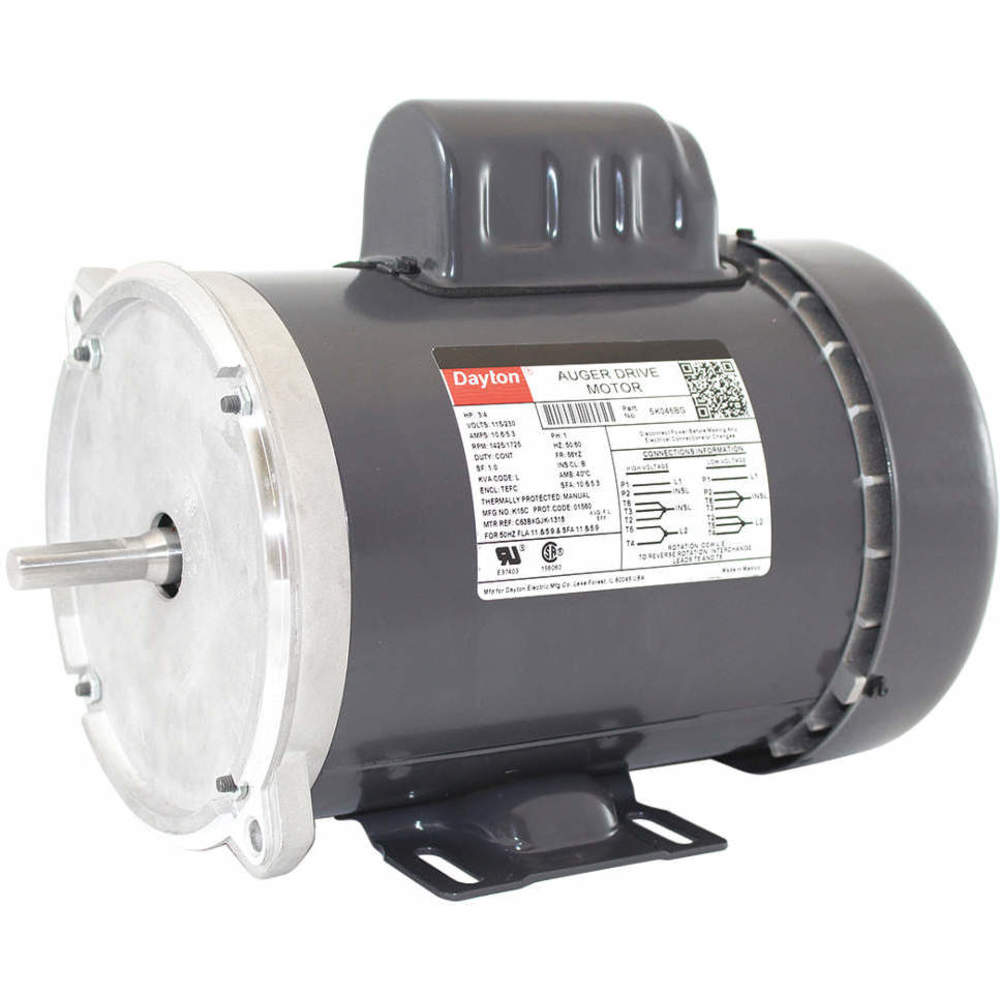

| D | 5K046 | 3/4 hp | Face, Base | 56YZ | 1 | Flat | 1 | Face/Base | Steel | $612.99 |
