| Item | Belt Drive Motor |
|---|---|
| Ambient Temp. | 60°C |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 68.9% |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Full Load Amps | 4.3-4.2/8.3A |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Length Less Shaft | 8 7/8" |
| Max. Ambient Temp. | 140°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
|---|---|
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Stud Pattern | 4 1/8" x 4 1/8" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68.9% |
| Number Of Speeds | 1 |
| Overall Length | 10 3/4" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 8 3/8" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Height (cm) | 24.13 |
|---|---|
| Length (cm) | 35.81 |
| Width (cm) | 20.83 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 12.15 |
| Style | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Type | Nameplate Rpm | Frame | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1AGG3 | 115/208-230V | 1/2 hp | 7.2/3.6A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | $381.09 | |

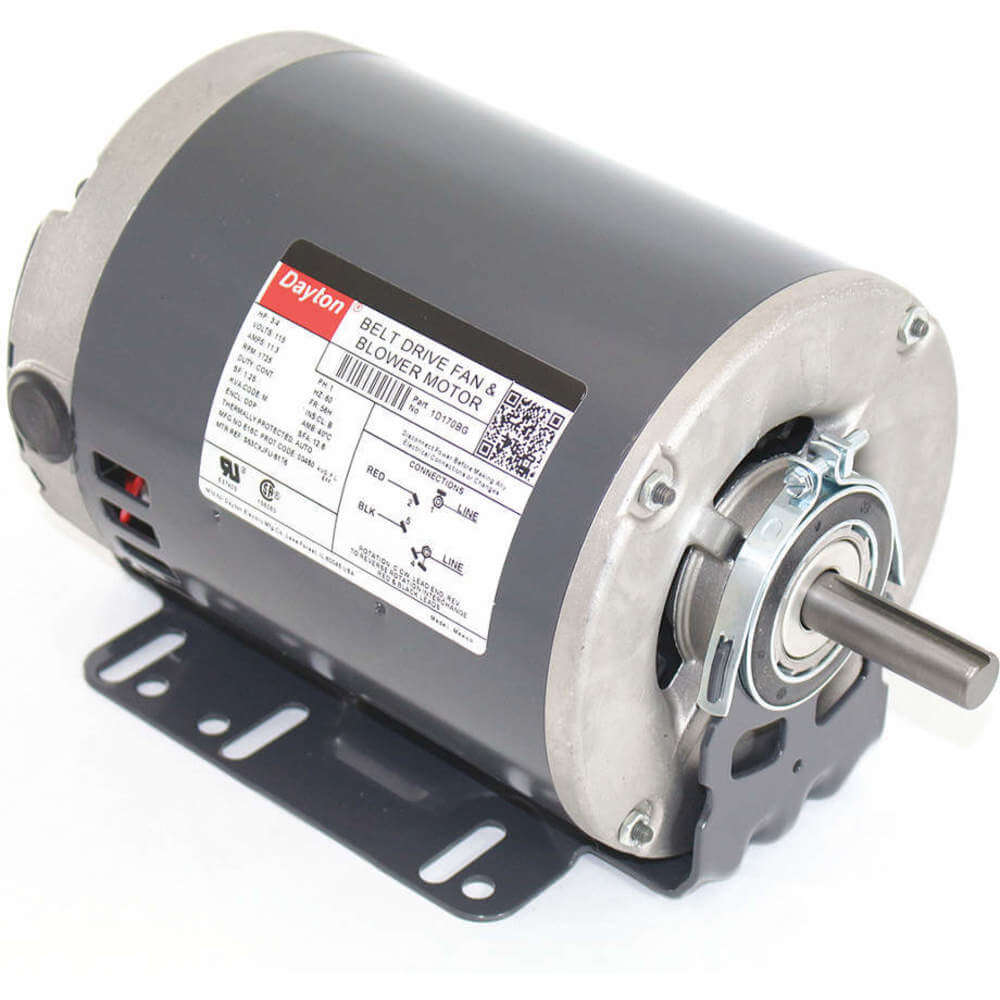

| B | 1D170 | 115V AC | 3/4 hp | 11.3A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | $531.00 | |

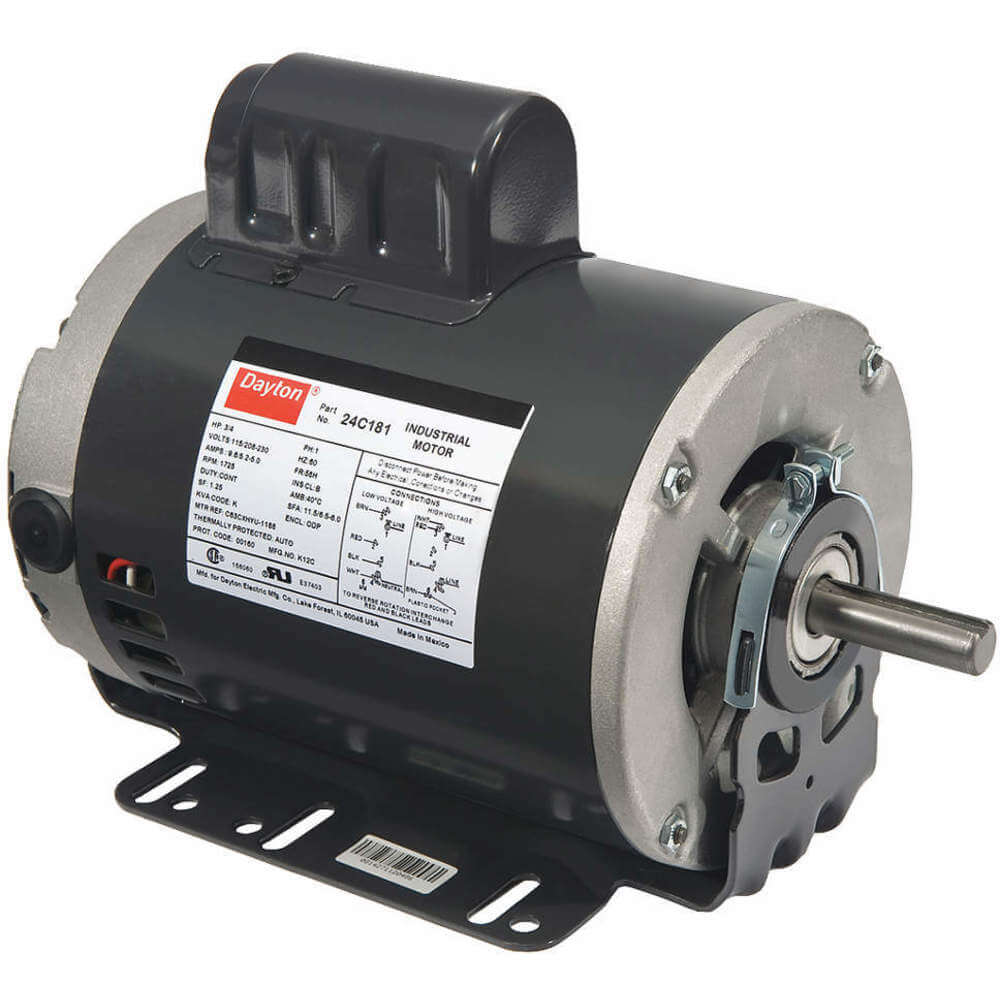

| C | 24C180 | 115/208-230V | 1/2 hp | 7.7/3.8-3.7A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | $530.99 | |
| C | 24C181 | 115/208-230V | 3/4 hp | 9.8/5.2-5A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | $542.92 | |

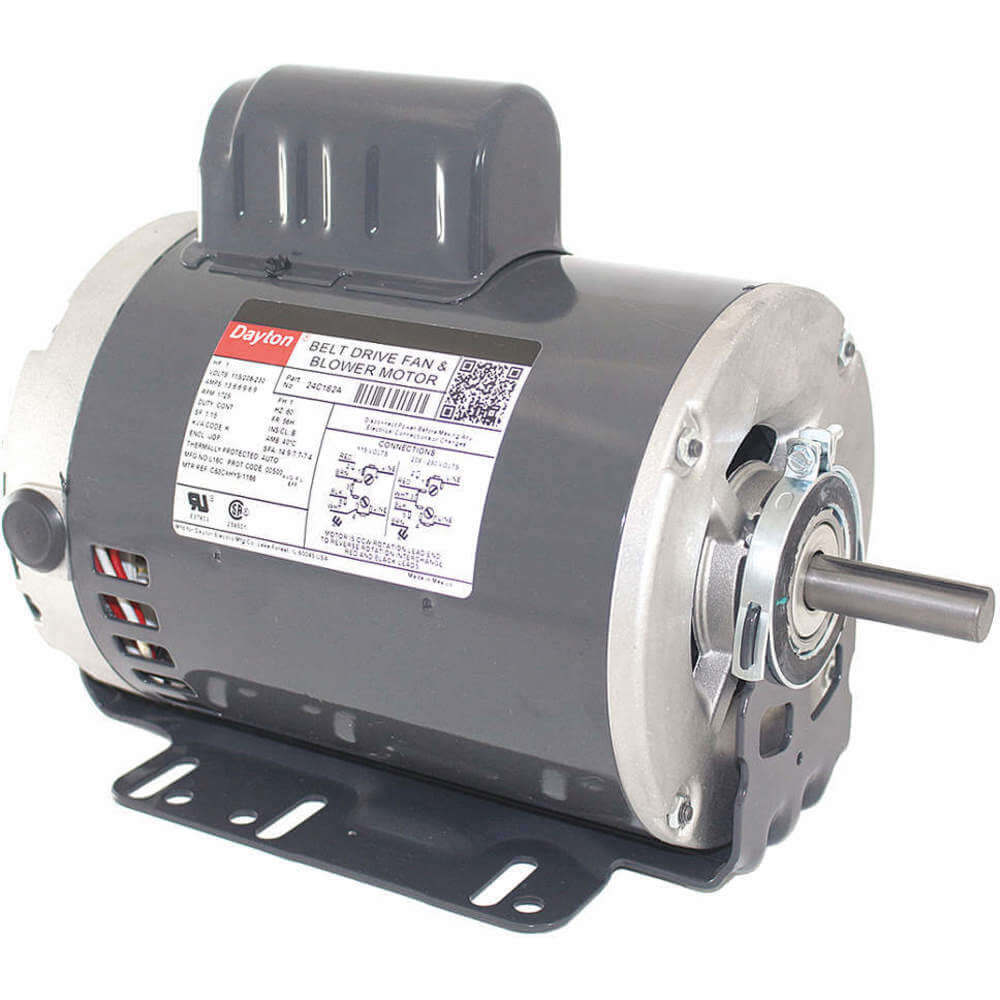

| D | 24C182 | 115/208-230V | 1 hp | 13.6/6.9A | Cradle Base | 1.15 | Capacitor Start | 1725 RPM | 56H | $765.55 | |
| E | 3K199 | 115/230V AC | 1/2 hp | 7.7/3.8A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | $562.78 | |
| F | 3K617BG | 115/208-230V | 3/4 hp | 11.2/5.6A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | $453.31 |
