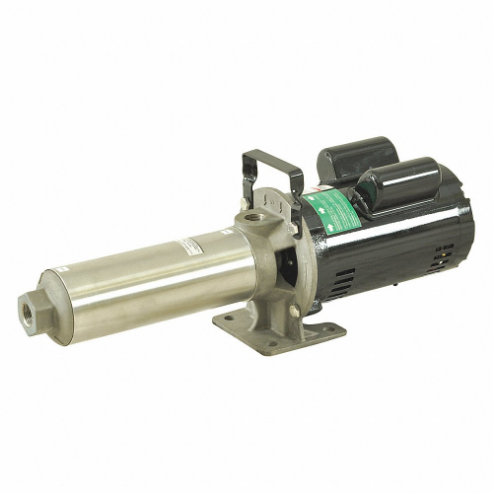

| Item | Multi-Stage Booster Pump |
|---|---|
| Amps | 7.8/3.9A |
| Bearing Type | Ball |
| Compatible Discharge Pipe Size | 3/4" |
| Compatible Intake Pipe Size | 3/4" |
| Compatible With Media Type | Water |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 9.6 GPM |
| Flow Rate @ 100 Psi | 2 GPM |
| Flow Rate @ 120 Psi | 0 GPM |
| Flow Rate @ 20 Psi | 8 GPM |
| Flow Rate @ 30 Psi | 7.5 GPM |
| Flow Rate @ 40 Psi | 7 GPM |
| Flow Rate @ 50 Psi | 6.4 GPM |
| Flow Rate @ 60 Psi | 5.7 GPM |
| Flow Rate @ 70 Psi | 4.9 GPM |
| Flow Rate @ 80 Psi | 4 GPM |
| Flow Rate @ 90 Psi | 3 GPM |
| For Media Type | Water |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 304, Grade 316 |
| Height | 8 3/4" |
| Housing Material | Stainless Steel |
| Hp | 1/2 hp |
| Hp - Pumps | 1/2 hp |
| Impeller Design | Closed |
| Impeller Material | Noryl |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 3/4" |
| Intake And Discharge Size | 3/4" |
| Intake Size | 3/4" |
| Length | 22 5/8" |
| Manufacturer Warranty Length | 1 yr. |
|---|---|
| Max. Ambient Temp. | 149°F |
| Max. Case Pressure | 300 psi |
| Max. Media Temp. | 140°F |
| Max. Pressure | 120 psi |
| Max. Suction Lift | 10 ft. |
| Media Type | Water |
| Min. Ambient Temp. | 65°F |
| Motor Ambient Temperature (maximum) | 149°F |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3450 RPM |
| Motor Type | Capacitor Start |
| Mounting Orientation | Horizontal |
| No. Of Stages | 8 |
| Number Of Stages | 8 |
| Number Of Stages - Pumps | 8 |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Overall Height | 8 3/4" |
| Overall Length | 22.63" |
| Overall Width | 6 3/4" |
| Phase | 1 |
| Priming | Self Priming |
| Pump Housing Material | Stainless Steel |
| Pumping Application | Filtration |
| Rpm (maximum) | 3450 RPM |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Self Priming | Yes |
| Shut Off Pressure | 120 psi |
| Shut Off Pressure (maximum) | 120 psi |
| Stages | 8 |
| Suction Lift | 10 ft. |
| Voltage | 115/230V AC |
| Wetted Material | Stainless Steel, Carbon Ceramic, Noryl, Nylon, Polycarbonate, Viton |
| Width | 6 3/4" |
| Standards | CULUS LISTED |
| Height (cm) | 22.22 |
|---|---|
| Length (cm) | 57.48 |
| Width (cm) | 17.14 |
| Country Of Origin | IN |
|---|---|
| Weight (kg) | 21.78 |
| Style | Model | Hp | Phase | Shut Off Pressure | Pump Housing Material | Number Of Stages | Compatible Discharge Pipe Size | Compatible Intake Pipe Size | Flow Rate @ 50 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 96061502 | 1 hp | 1 | 88 psi | Stainless Steel | 4 | 1" | 1 1/4" | 19 GPM | $2,187.55 | |
| A | 96061503 | 1 1/2 hp | 1 | 111 psi | Stainless Steel | 5 | 1" | 1 1/4" | 23.5 GPM | $2,500.00 | |
| A | 96061504 | 2 hp | 1 | 135 psi | Stainless Steel | 6 | 1" | 1 1/4" | 25 GPM | $2,791.66 | |
| A | 96061512 | 1 hp | 3 | 88 psi | Stainless Steel | 4 | 1" | 1 1/4" | 19 GPM | $2,250.00 | |
| A | 96061513 | 1 1/2 hp | 3 | 111 psi | Stainless Steel | 5 | 1" | 1 1/4" | 23.5 GPM | $2,458.34 | |
| A | 96061514 | 2 hp | 3 | 135 psi | Stainless Steel | 6 | 1" | 1 1/4" | 25 GPM | $2,528.76 | |
| A | 96063001 | 1 hp | 1 | 69 psi | Stainless Steel | 3 | 1" | 1 1/4" | 28 GPM | $2,326.96 |
