| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 89.8% |
| Efficiency Group | Energy |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.9-2.8/1.4A |
| Hp | 3/4 hp |
| Includes | Shaft Key, Shaft Slinger |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 10" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Rolled Steel |
|---|---|
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.1% |
| Overall Length | 11 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
| Motor Thermal Protection | None |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E47479) |
| Height (cm) | 27.18 |
|---|---|
| Length (cm) | 49.02 |
| Width (cm) | 28.96 |
| HS Code | 8501514040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 14.4 |
| Style | Model | Voltage | Phase | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

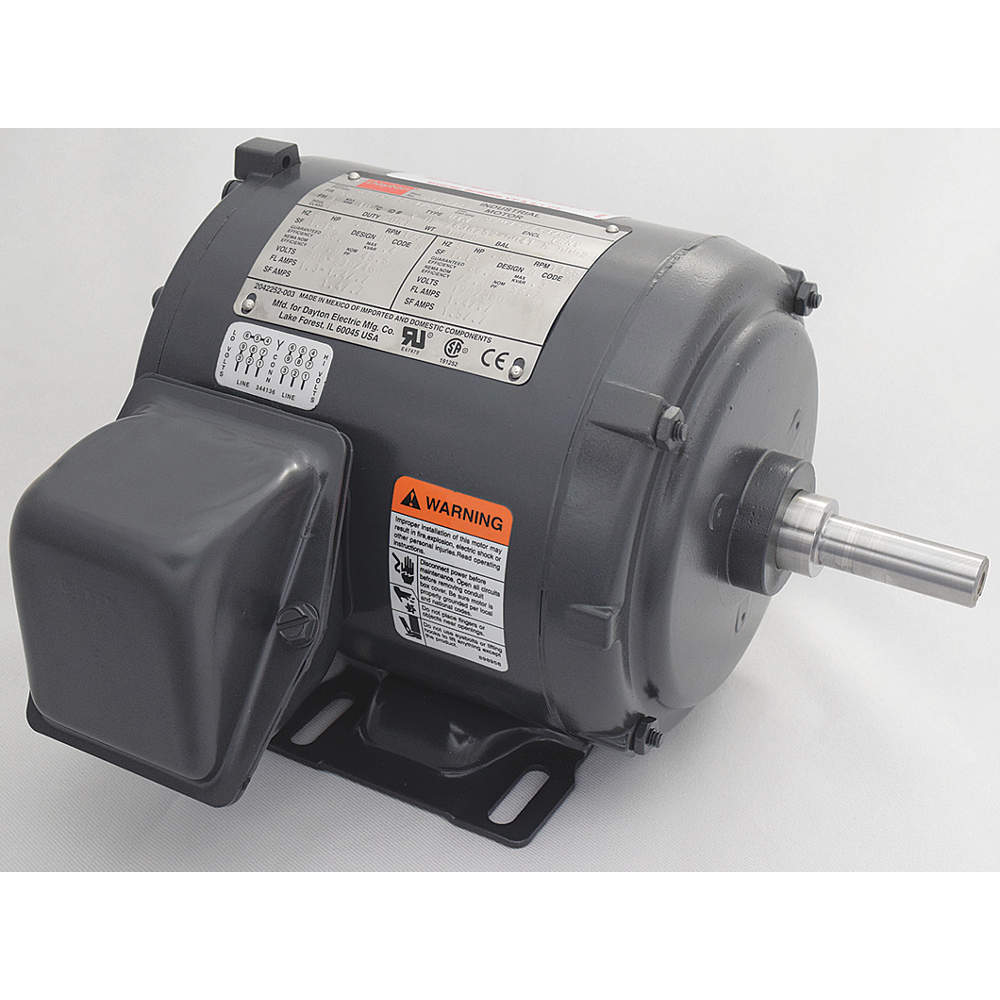

| A | 2N863 | 230/460V AC | 3 | 1770 RPM | 1/4 hp | 50/60 Hz | 1.4/0.7A | Rigid Base | Three Phase | $403.48 | |
| B | 3N349 | 208-230/460V AC | 3 | 1725 RPM | 1/4 hp | 60 Hz | 1.1/0.5A | Rigid Base | Three Phase | $343.94 | |
| B | 3N350 | 208-230/460V AC | 3 | 1725 RPM | 1/3 hp | 60 Hz | 1.3/0.7A | Rigid Base | Three Phase | $372.75 | |

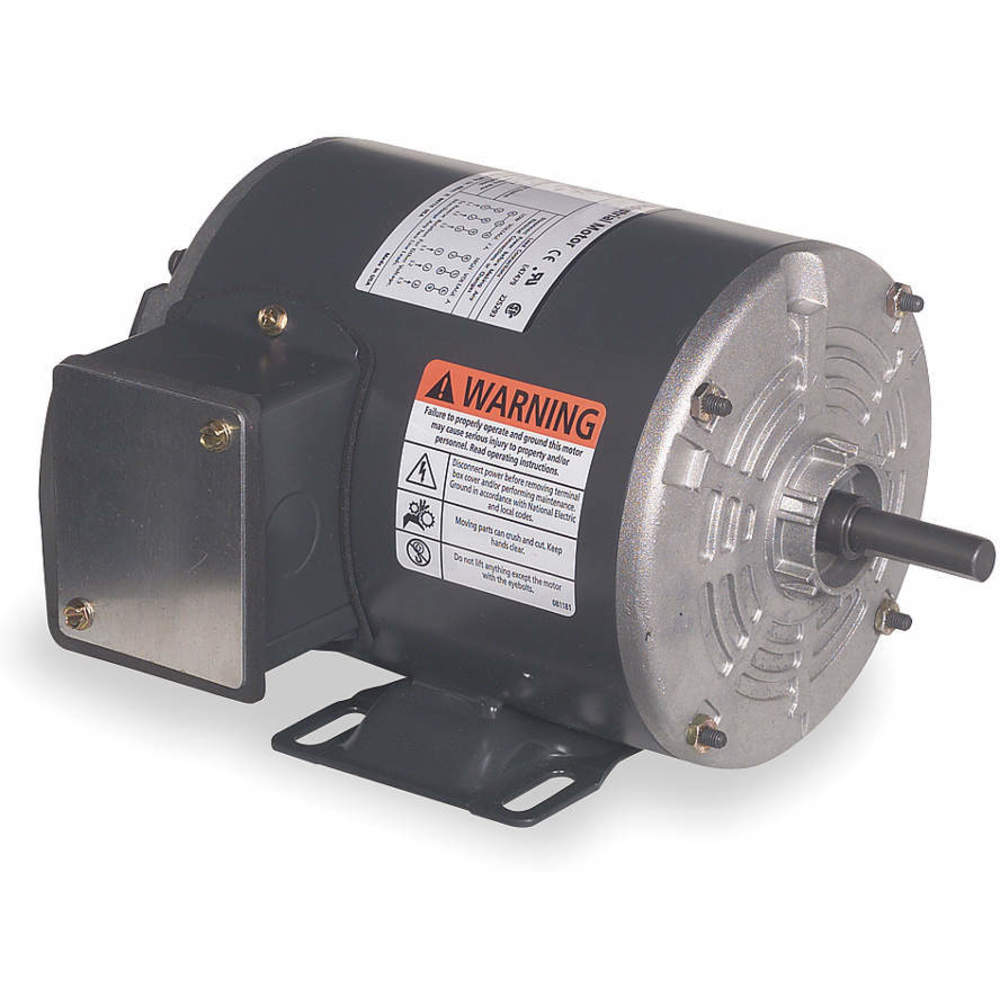

| B | 3N694 | 208-230/460V AC | 3 | 1765 RPM | 1/3 hp | 60 Hz | 1.5-1.4/0.7A | Rigid Base | Three Phase | $653.54 | |
| C | 3N695 | 208-230/460V AC | 3 | 1755 RPM | 1/2 hp | 60 Hz | 1.9/1.8-1A | Rigid Base | Three Phase | $495.32 | |
| D | 3N854 | 208-230/460V AC | 3 | 3450 RPM | 1/3 hp | 50/60 Hz | 1.2-1.1/0.6A | Rigid Base | Three Phase | $454.24 | |
| E | 5GD53 | 115/208-230V AC | 1 | 1725 RPM | 1/6 hp | 60 Hz | 4.3/2.1-1.9A | Face | Capacitor Start | $333.66 |
