| Item | Belt Drive Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.3A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 7/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
|---|---|
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 8 15/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 6 15/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Standards | UL RECOGNIZED (E37403) AND CSA CERTIFIED (258501) |
| Height (cm) | 19.56 |
|---|---|
| Length (cm) | 29.97 |
| Width (cm) | 20.07 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 5.535 |
| Style | Model | Voltage | Hp | Motor Type | No. Of Speeds | Service Factor | Nameplate Rpm | Frame | Frame Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1AGG1 | 115/208-230V AC | 1/4 hp | Capacitor Start | 1 | 1.35 | 1725 RPM | - | Steel | $420.22 | |
| A | 1AGG2 | 115/208-230V AC | 1/3 hp | Capacitor Start | 1 | 1.35 | 1725 RPM | 48Z | Steel | $543.40 | |

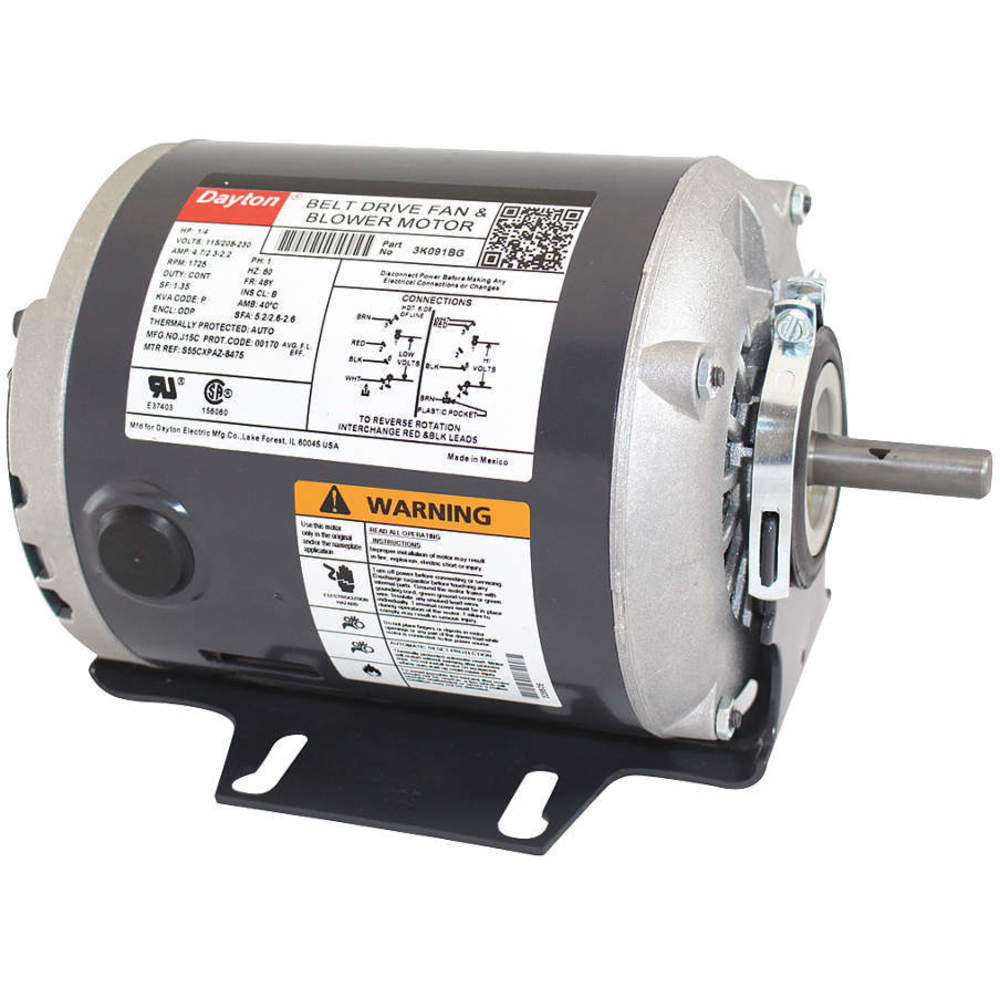

| B | 3K091 | 115/208-230V AC | 1/4 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Rolled Steel | $354.36 | |

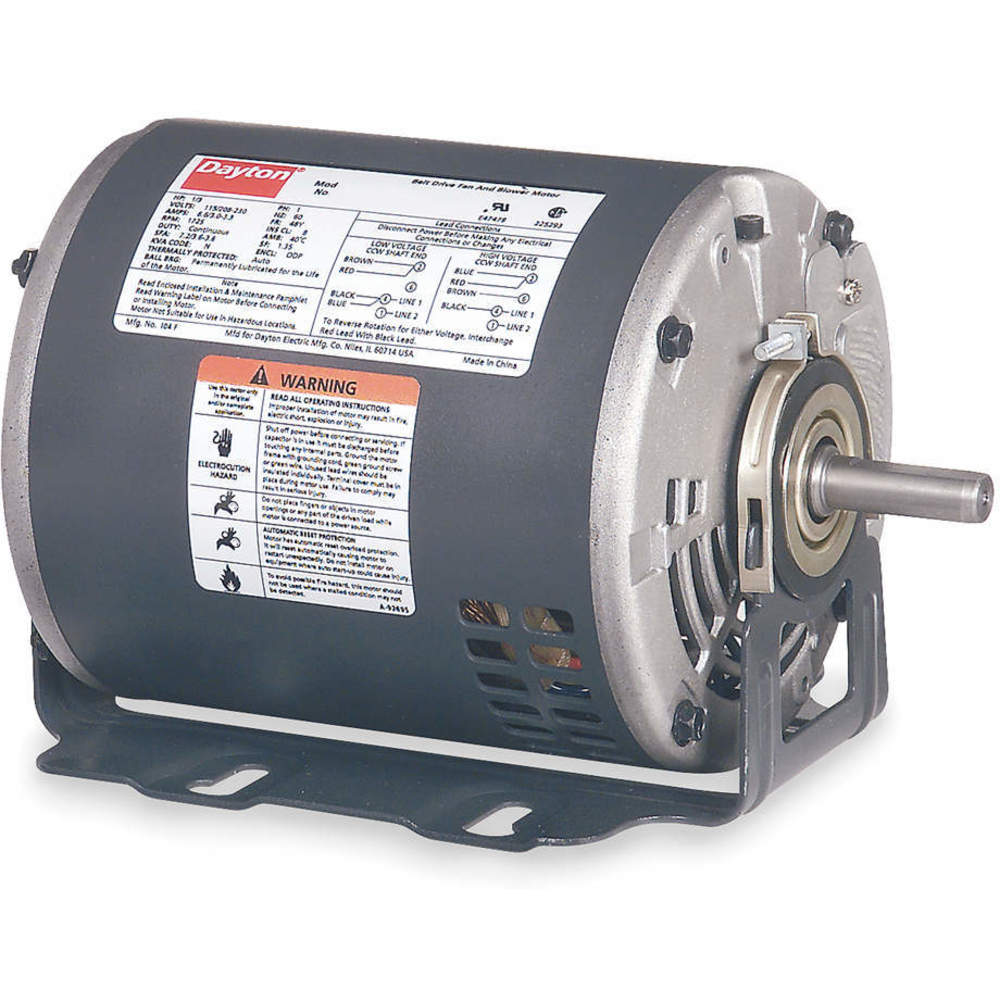

| C | 3K371 | 115V AC | 1/3 hp, 1/9 hp | Split Phase | 2 | 1.35 | 1725/1140 RPM | 48 | Rolled Steel | $409.45 | |

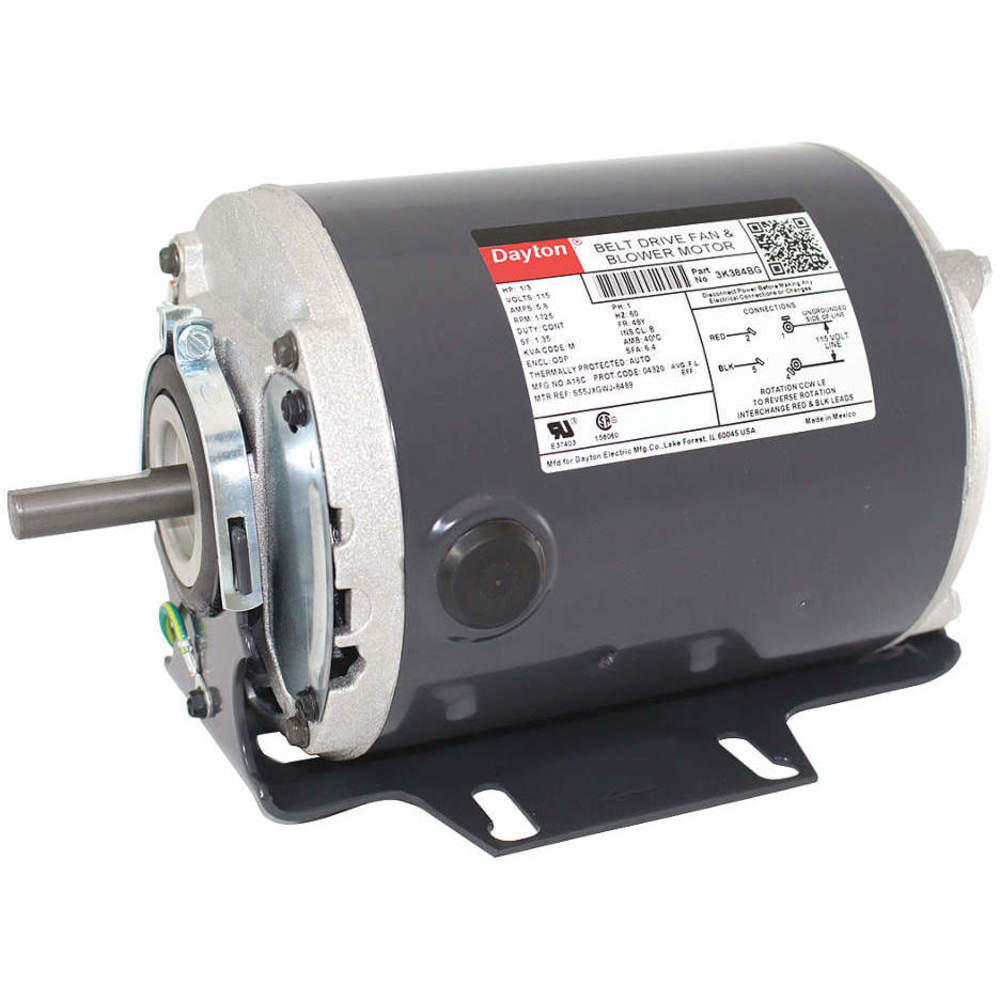

| D | 3K384 | 115V AC | 1/3 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Steel | $330.65 | |

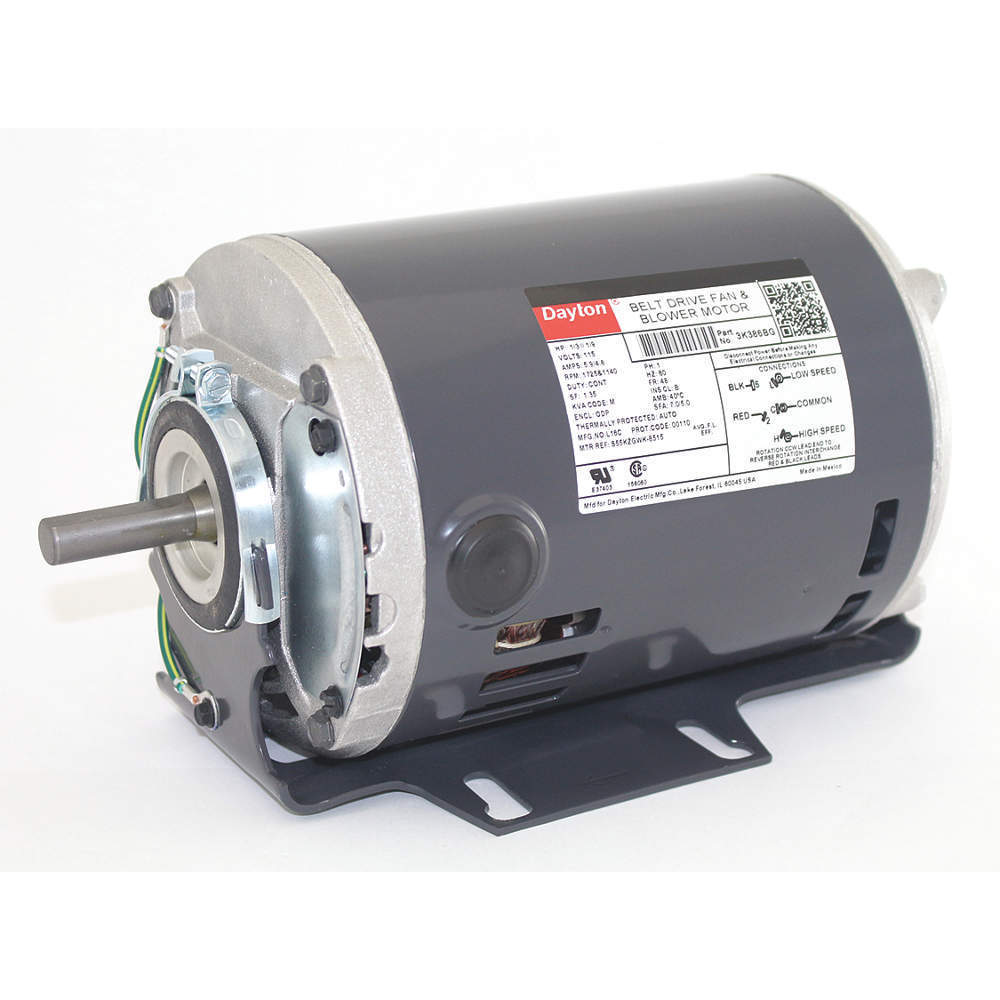

| E | 3K386 | 115V AC | 1/3 hp, 1/9 hp | Split Phase | 2 | 1.35 | 1725/1140 RPM | 48 | Rolled Steel | $429.68 | |
| F | 3K613 | 115/208-230V AC | 1/6 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Rolled Steel | $408.22 |
