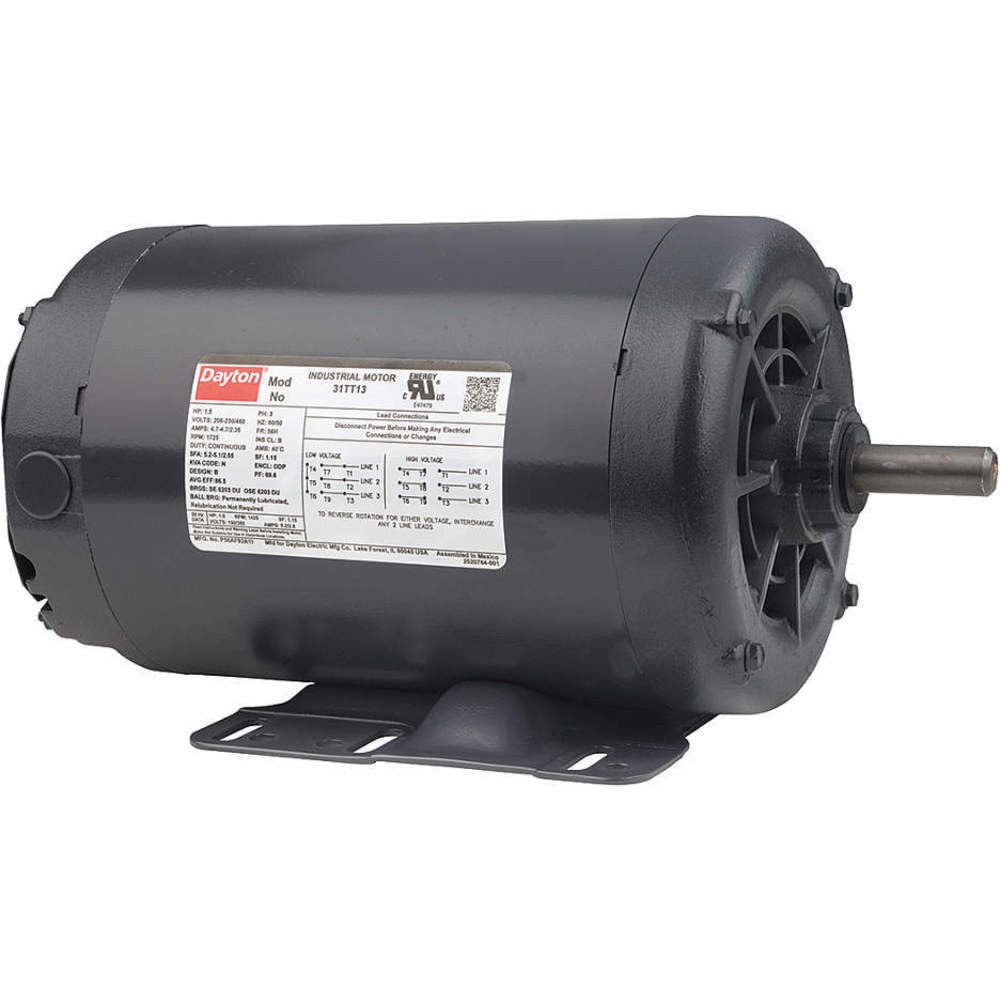

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 81.1% |
| Efficiency Group | Premium |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.5/1.3A |
| Green Certification Or Other Recognition | Energy Aware |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 9 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
|---|---|
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.1% |
| Overall Length | 11 5/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
| Motor Thermal Protection | None |
| Standards | UL RECOGNIZED FOR US AND CANADA (E47479) |
| Height (cm) | 27.43 |
|---|---|
| Length (cm) | 34.29 |
| Width (cm) | 23.88 |
| HS Code | 8501514040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 13.8825 |
| Style | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Frame | Efficiency | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 30PT92 | 230/460V AC | 3450 RPM | 1 hp | 3/1.5A | 1.15 | 56 | 77% | 10 3/16" | $431.44 | |
| A | 30PT93 | 230/460V AC | 3450 RPM | 1 1/2 hp | 4.2/2.1A | 1.15 | 56 | 84% | 11 3/16" | $529.49 | |
| A | 31TT12 | 230/460V AC | 1725 RPM | 1 hp | 3/1.5A | 1.15 | 56 | 83.5% | 11 11/16" | $843.59 | |
| B | 31TT16 | 230/460V AC | 1140 RPM | 3/4 hp | 3.5/1.8A | 1.25 | 56H | 81.7% | 14" | $1,056.44 |
