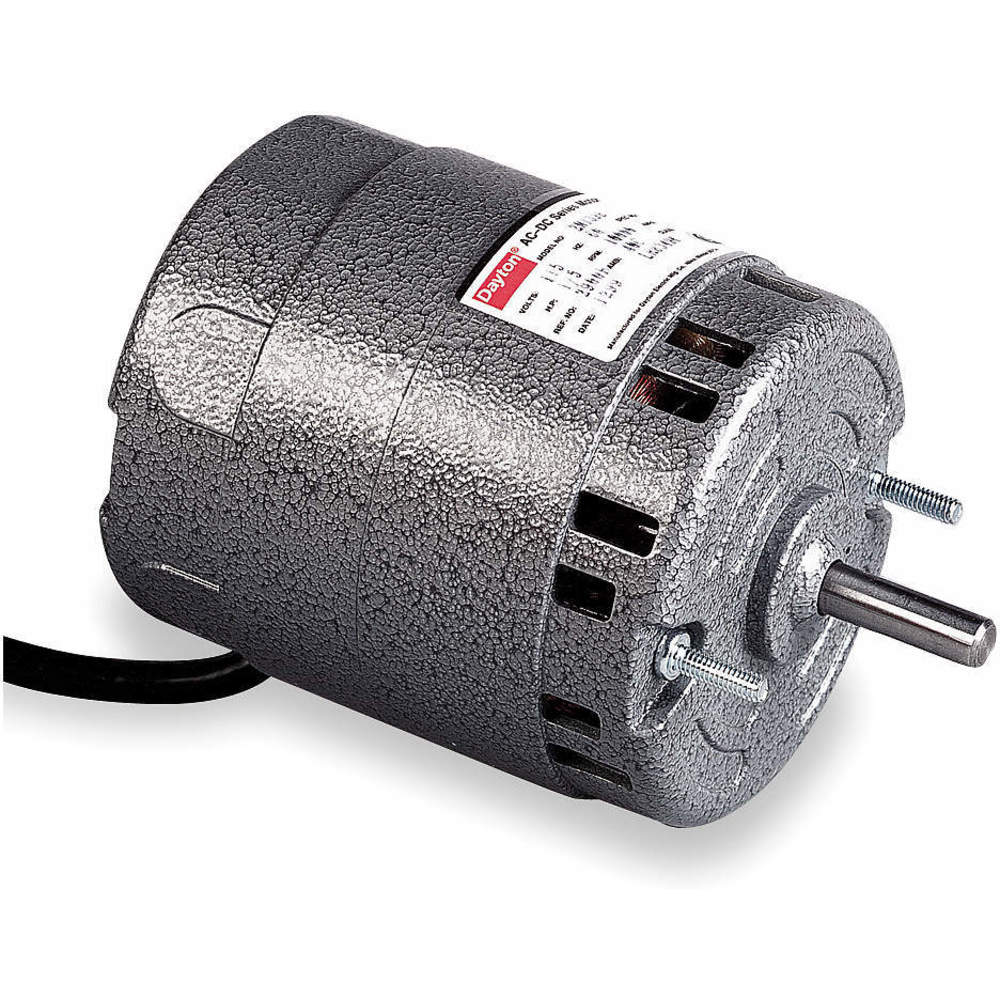

| Item | Universal AC/DC Motor |
|---|---|
| Average Brush Life | 300 hrs. |
| Bearing Type | Sleeve |
| Body Dia. | 3 3/8" |
| Conduit Box Position | F1 |
| Finish | Unfinished |
| Frame | Non Standard |
| Frequency | 60 Hz |
| Full Load Amps | 2.9A |
| Hp | 1/5 hp |
| Insulation Class | Class F |
| Length | 5 1/2" |
| Length Less Shaft | 4 1/2" |
| Motor Application | Universal AC/DC Motor |
| Motor Bearings | Sleeve |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Type | Standard |
| Mounting Type | Face |
| Nameplate Rpm | 10000 RPM |
| No. Of Speeds | 1 |
| O.c Mounting | 2 7/16" |
| Overall Length | 5 1/2" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 1" |
| Standards | Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Motor Thermal Protection | None |
| Height (cm) | 9.4 |
|---|---|
| Length (cm) | 16.26 |
| Width (cm) | 10.16 |
| HS Code | 8501202000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.395 |
| Style | Model | Hp | Nameplate Rpm | Mounting Type | Overall Length | Shaft Dia. | Bearing Type | Shaft Length | Length Less Shaft | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2M057 | 1/15 hp | 5000 RPM | Hole | 5 5/16" | 5/16" | Ball | 7/8" | 4 7/16" | $202.94 | |
| B | 2M145 | 1/2 hp | 10000 RPM | Hole | 7.437" | 3/8" | Ball | 1 1/4" | - | $462.37 | |

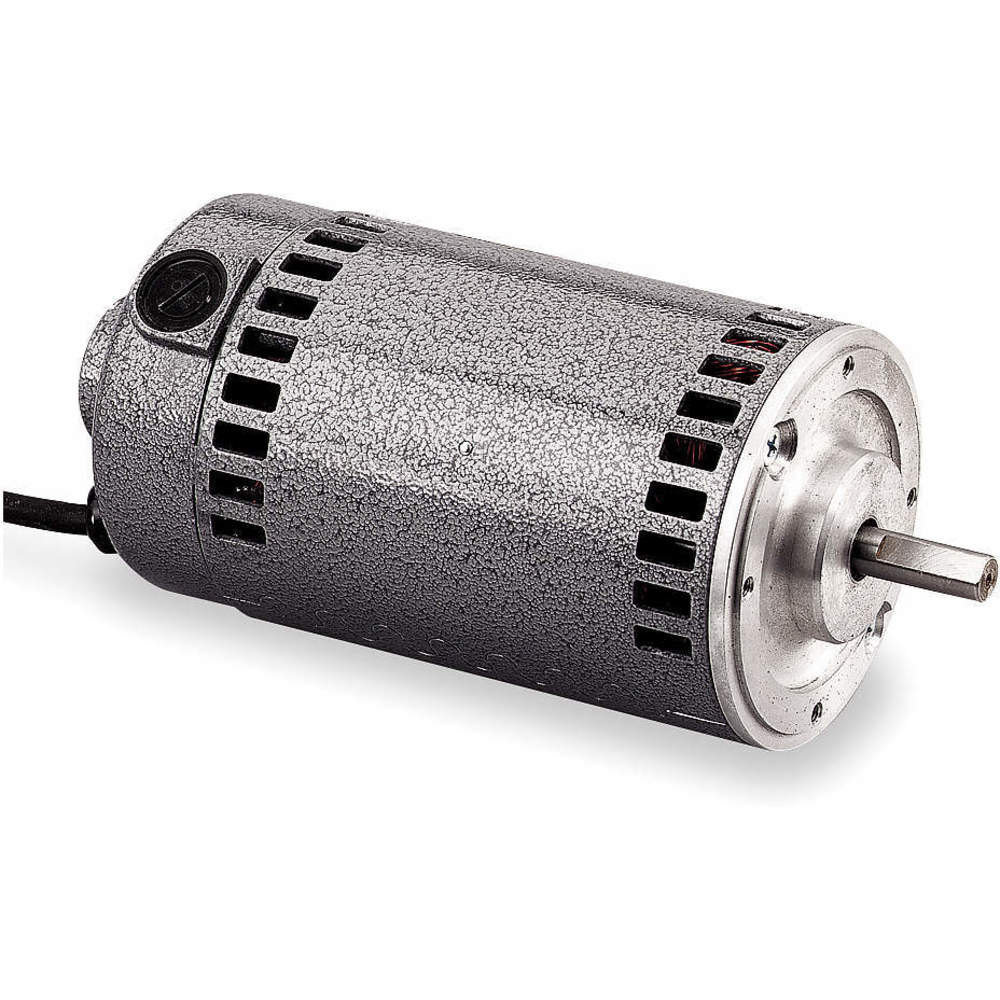

| C | 2M191 | 1 hp | 10000 RPM | Face | 9" | 7/16" | Ball | 1 1/4" | 9 5/8" | $659.99 | |
| - | 9DF26 | - | - | - | - | - | - | - | - | $230.91 |
