| Item | General Purpose Farm Duty Motor |
|---|---|
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 67.7% |
| Finish | Enamel |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11.4/5.7A |
| Hp | 3/4 hp |
| Includes | Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base |
| Ins. Class | Class B |
| Length Less Shaft | 10 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 67.7% |
| Overall Length | 11 15/16" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 29.21 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.5 |
| Style | Model | Hp | Motor Design | Frame | Overall Length | Shaft Length | Efficiency | Capacitor Required | Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

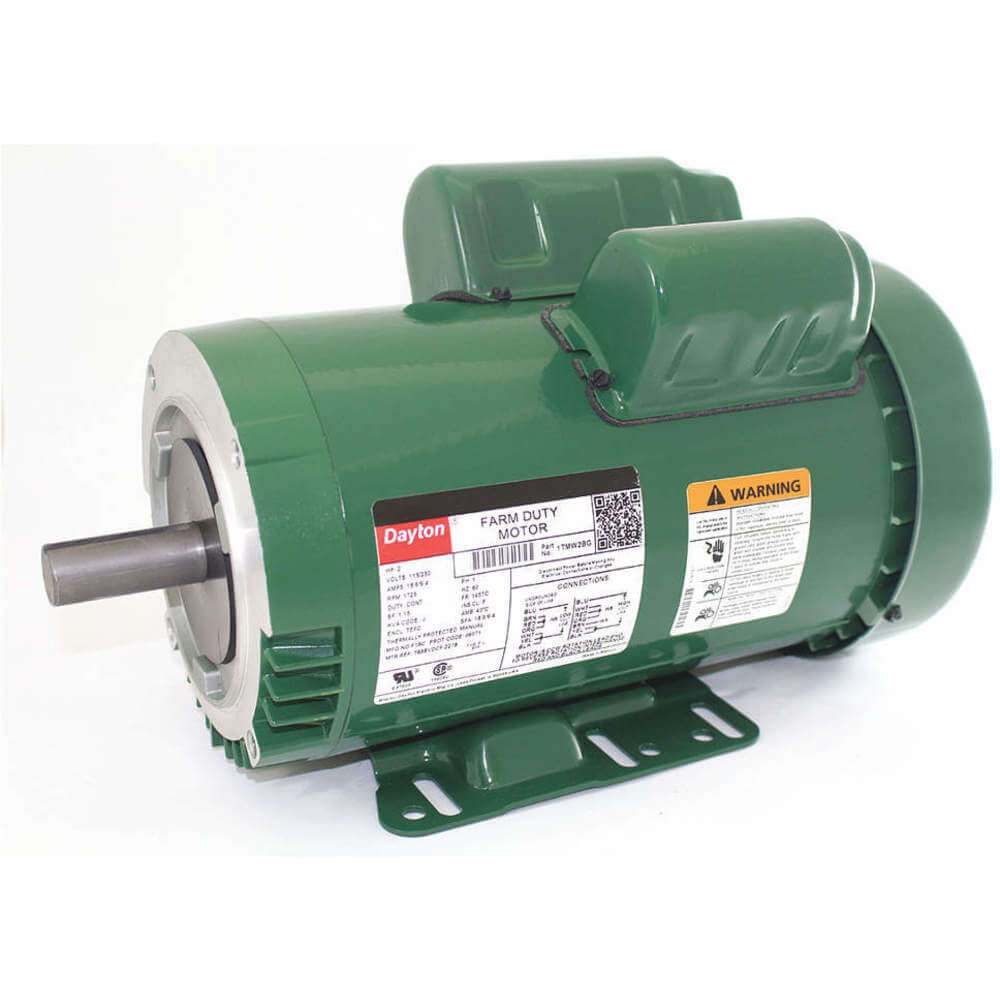

| A | 1TMW2BG | 2 hp | Capacitor Start/Run | 145TC | 14 7/16" | 2 1/8" | 81.5% | Yes | 115/230V AC | $1,169.10 | |

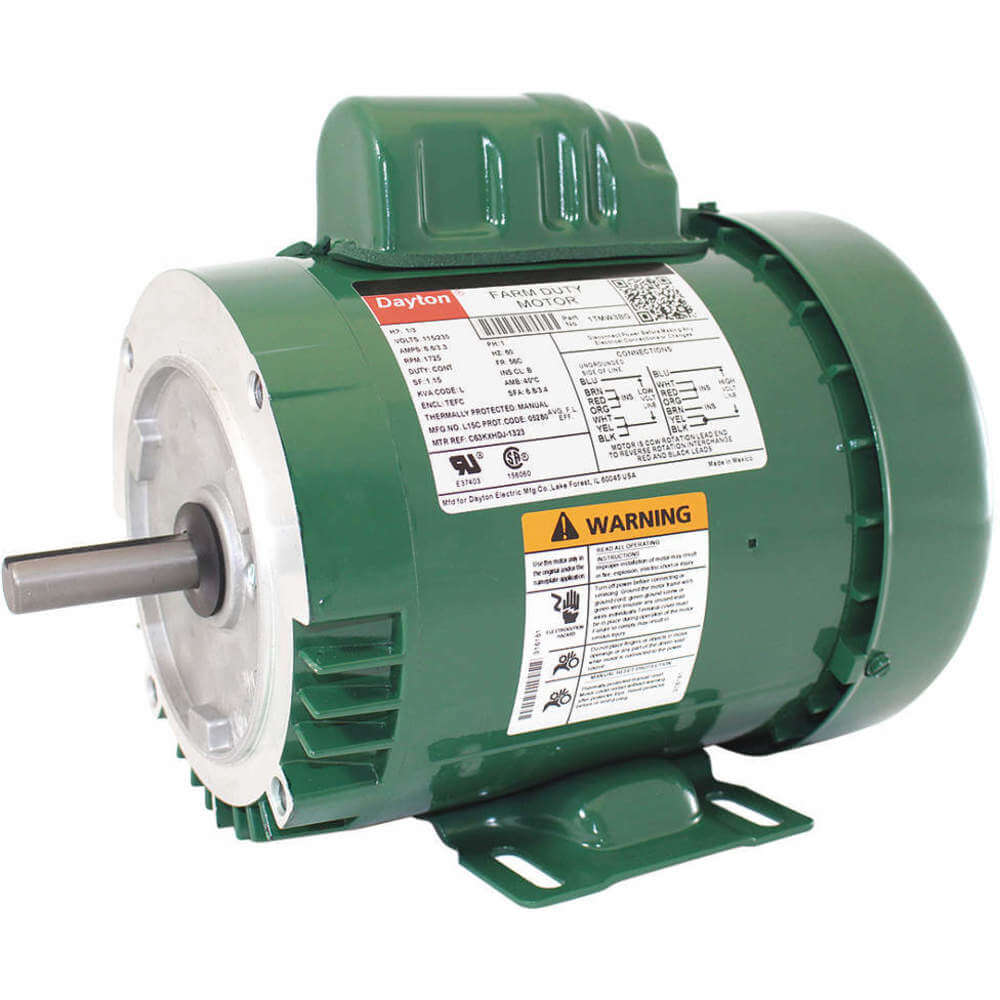

| B | 1TMW3 | 1/3 hp | Capacitor Start | 56C | 10 7/8" | 1 7/8" | 57.5% | Included | 115/230V AC | $669.25 | |

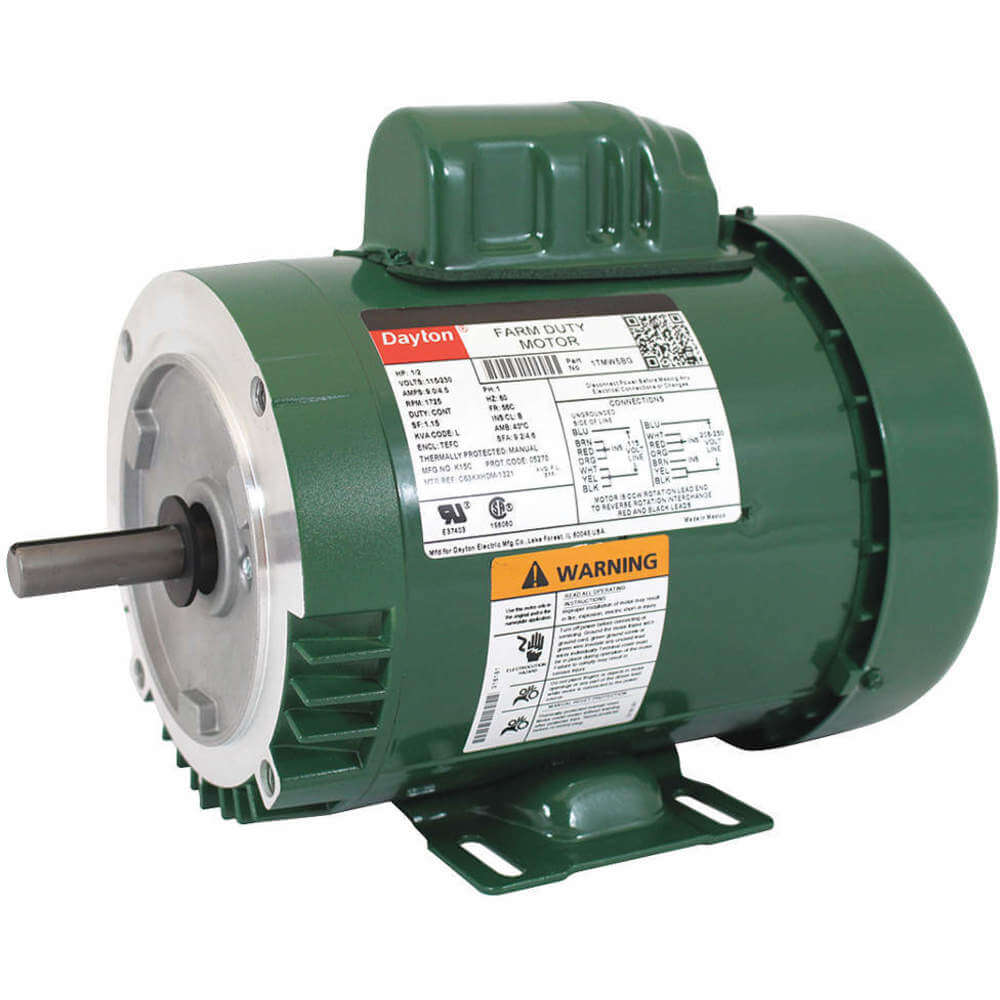

| C | 1TMW5 | 1/2 hp | Capacitor Start | 56C | 11 3/8" | 1 7/8" | 62% | Included | 115/230V AC | $556.01 | |

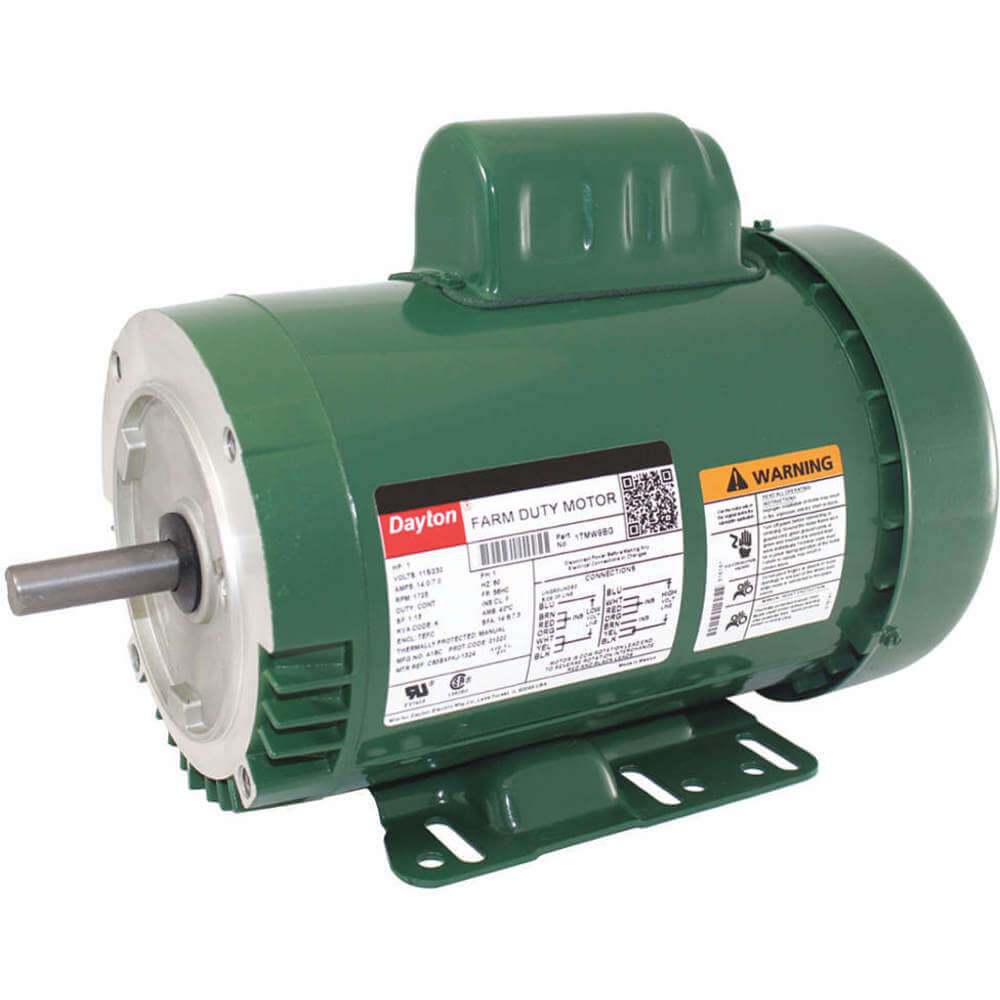

| D | 1TMW9 | 1 hp | Capacitor Start | 56HC | 12 7/8" | 1 7/8" | 69% | Included | 115/230V AC | $823.96 | |

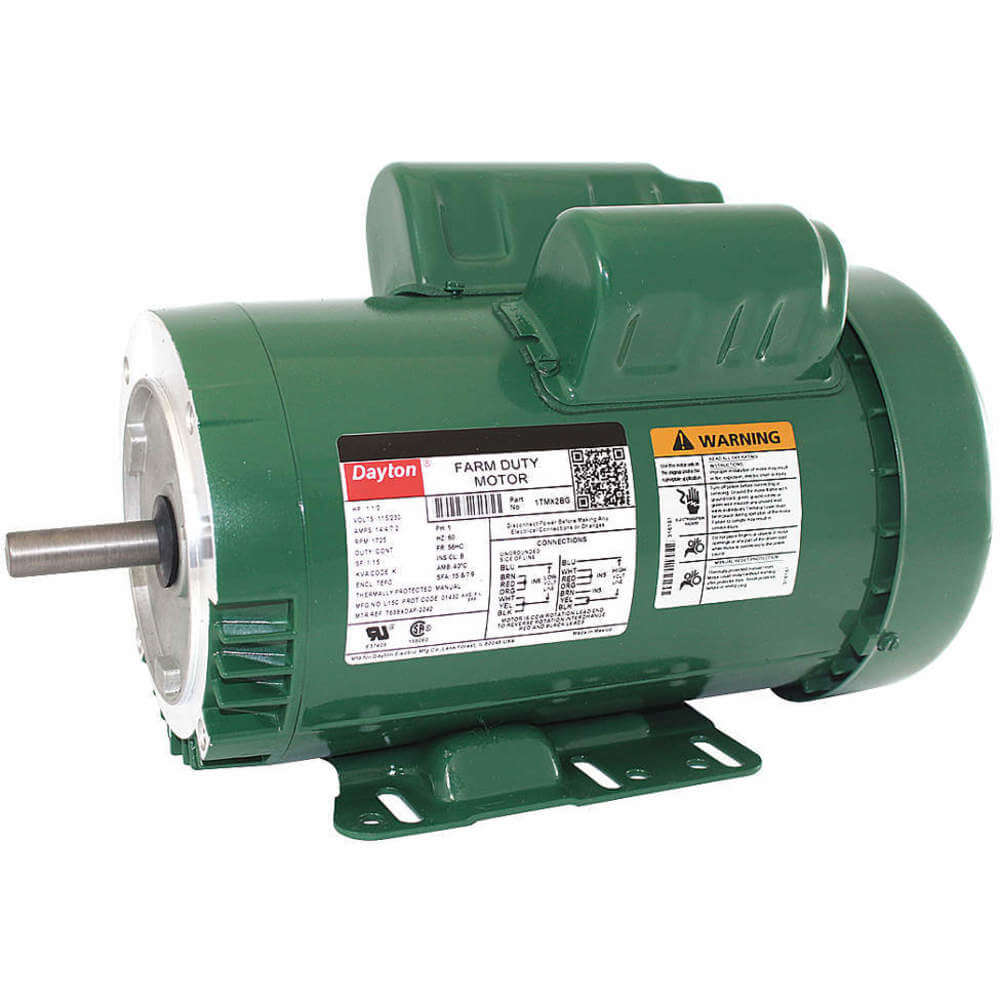

| E | 1TMX2 | 1 1/2 hp | Capacitor Start/Run | 56HC | 13 7/8" | 1 7/8" | 81.8% | Included | 115/230V AC | $903.44 |
