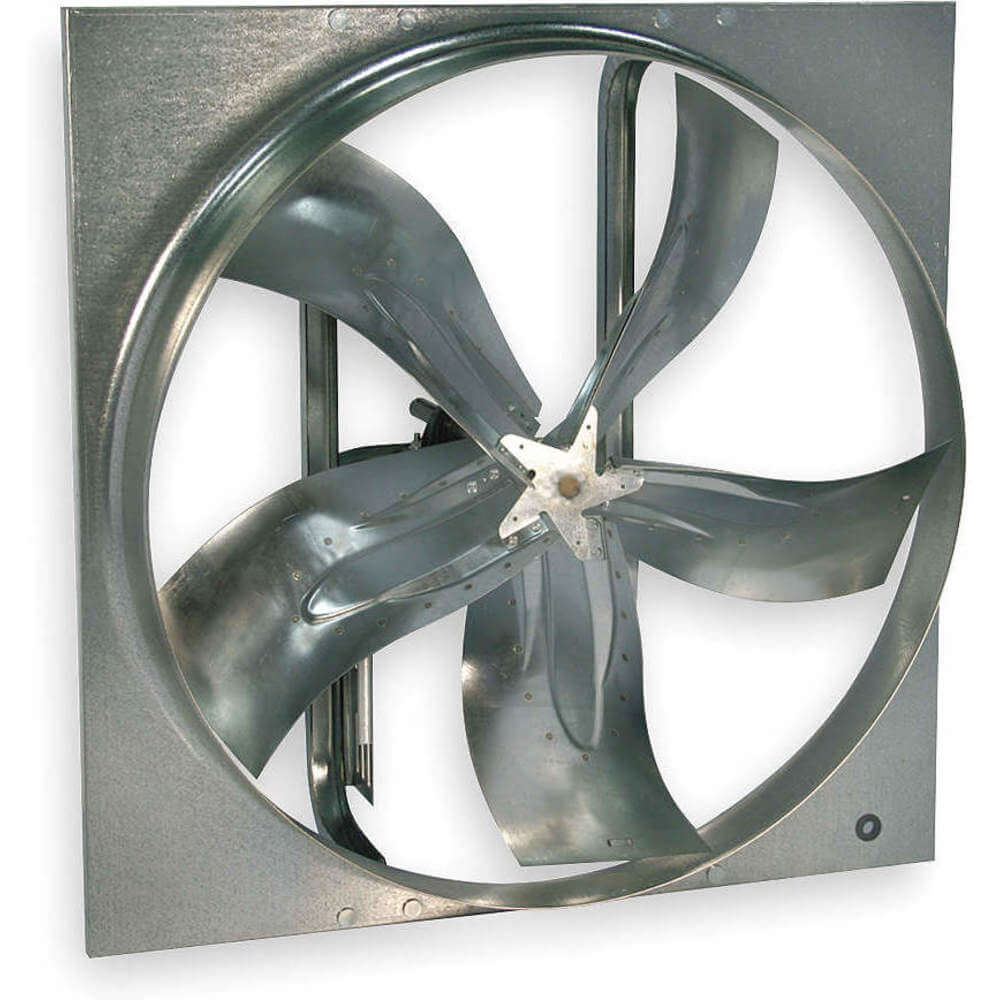

| Item | Exhaust Fan |
|---|---|
| Assembled | Unassembled |
| Bearing Size | 3/4" |
| Bearing Type | Regreaseable Pillow Block |
| Blade Dia. | 24" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Cfm Range | 6039-8734 CFM |
| Dimension A | 28" |
| Dimension D | 1 1/4" |
| Dimension E | 13 5/8" |
| Dimension F | 24 3/8" |
| Drive Package Included | No |
| Drive Package With Motor Included | No |
| Fan Style | Panel |
| Flange Depth | 1 1/4" , 1" |
| Flange Width | 28" |
| For Cut-out Diameter | 26 1/2" |
| For Cut-out Height | 26 1/2" |
| For Cut-out Width | 26 1/2" |
| For Maximum Motor Horsepower | 1 1/2 hp |
| For Maximum Motor Speed | 1065 RPM |
| For Minimum Motor Horsepower | 1/3 hp |
| For Minimum Motor Speed | 643 RPM |
| Frame Finish | ZincPlated |
| Frame Material | Steel |
| Guard Type | Not Available |
| Height | 28" |
| Hp | 1/3 hp to 1 1/2 hp |
| Includes Drive Package With Motor | No |
|---|---|
| Includes Motor | No |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 18" |
| Maximum Airflow | 10002 CFM |
| Maximum Static Pressure | 0.75 in. wg |
| Method Of Construction | Stamped |
| Minimum Airflow | 6039 CFM |
| Mounting Location | Wall |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Number Of Blades | 5 |
| Overall Depth | 18" |
| Overall Dia. | 24" |
| Overall Height | 28" |
| Overall Width | 28" |
| Promotion Restriction | Not Eligible For Promotion |
| Propeller Material | Steel |
| Requires | Wall Collar And Shutter For New Installation |
| Rpm Range | 643-930 RPM |
| Shaft Dia. | 3/4" |
| Shaft Diameter | 3/4" |
| Type | Medium Duty Belt Drive Less Drive Package |
| Ventilation Type | Exhaust |
| Venturi Clearance Dia. | 24 3/8" |
| Venturi Depth | 4 3/8" |
| Venturi Dia. | 24 3/8" |
| Width | 28" |
| Height (cm) | 71.12 |
|---|---|
| Length (cm) | 45.72 |
| Width (cm) | 71.12 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 22.05 |
| Style | Model | Propeller Material | Number Of Blades | Cfm Range | Flange Depth | Rpm Range | Blade Dia. | Frame Material | Bearing Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1AHA8 | Aluminum | 6 | 6469-8115 CFM | 1 1/4" | 939-1178 RPM | 24" | Steel | 3/4" | $1,818.31 |
