| Item | Hand Crank Hose Reel |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearings | Permanently Lubricated Self Aligning Pillow Block |
| Color | Blue |
| Drive Type | Hand Crank |
| Drum Width | 18" |
| Duty Rating | Heavy Duty |
| Enclosed | No |
| Fasteners Included | No |
| Features | "A" Frame, Cnc Spun Disc, Heavy Duty Steel Construction, Outlet Riser |
| Finish | Powder Coated |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 18 3/4" |
| Hose Capacity | 175 ft. |
| Hose Included | No |
| Hose Inside Dia. | 3/4" |
| Hose Length | 175 ft. |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Housing Material | Steel |
| Includes | Locking Pin |
| Includes Gooseneck | Yes |
| Includes Hose | No |
| Includes Leader Hose | No |
| Inside Dia. | 3/4" |
| Length | 17 5/8" |
| Max. Operating Pressure | 3000 psi |
| Max. Temp. Range | 275°F |
| Maximum Operating Pressure | 3000 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -40°F |
|---|---|
| Mount Base Height | 15 3/8" |
| Mount Base Width | 23 3/8" |
| Mount Hole Diameter | 1/2" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 10" |
| Mounting Hole Center To Center Width | 21 3/8" |
| Mounting Size | 21.44" x 10" |
| Number Of Mount Holes | 6 |
| Number Of Mounting Holes | 6 |
| Outside Dia. | 1 1/4" |
| Overall Height | 18 3/4" |
| Overall Length | 17 5/8" |
| Overall Width | 23 3/8" |
| Reel Color | Blue |
| Reel Diameter | 6 1/4" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 18" |
| Seal Material | Nitrile |
| Seal Type | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4" |
| Swivel Inlet Thread Size | 3/4" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/4" |
| Swivel Outlet Thread Size | 3/4" |
| Swivel Outlet Type | NPT |
| Type | Heavy Duty Air, Water, Oil, Pressure Washer |
| Width | 23 3/8" |

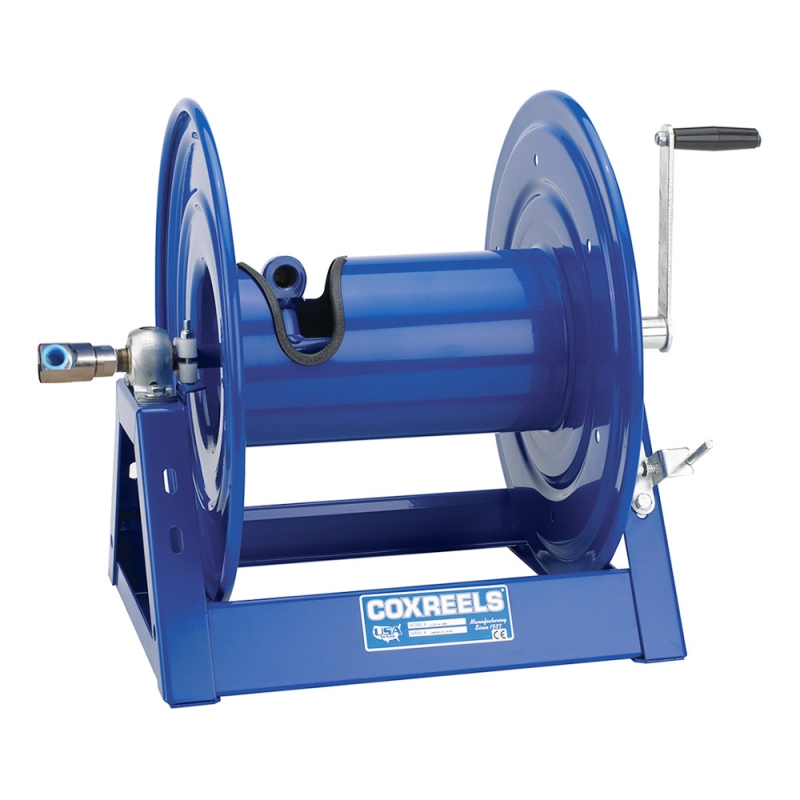

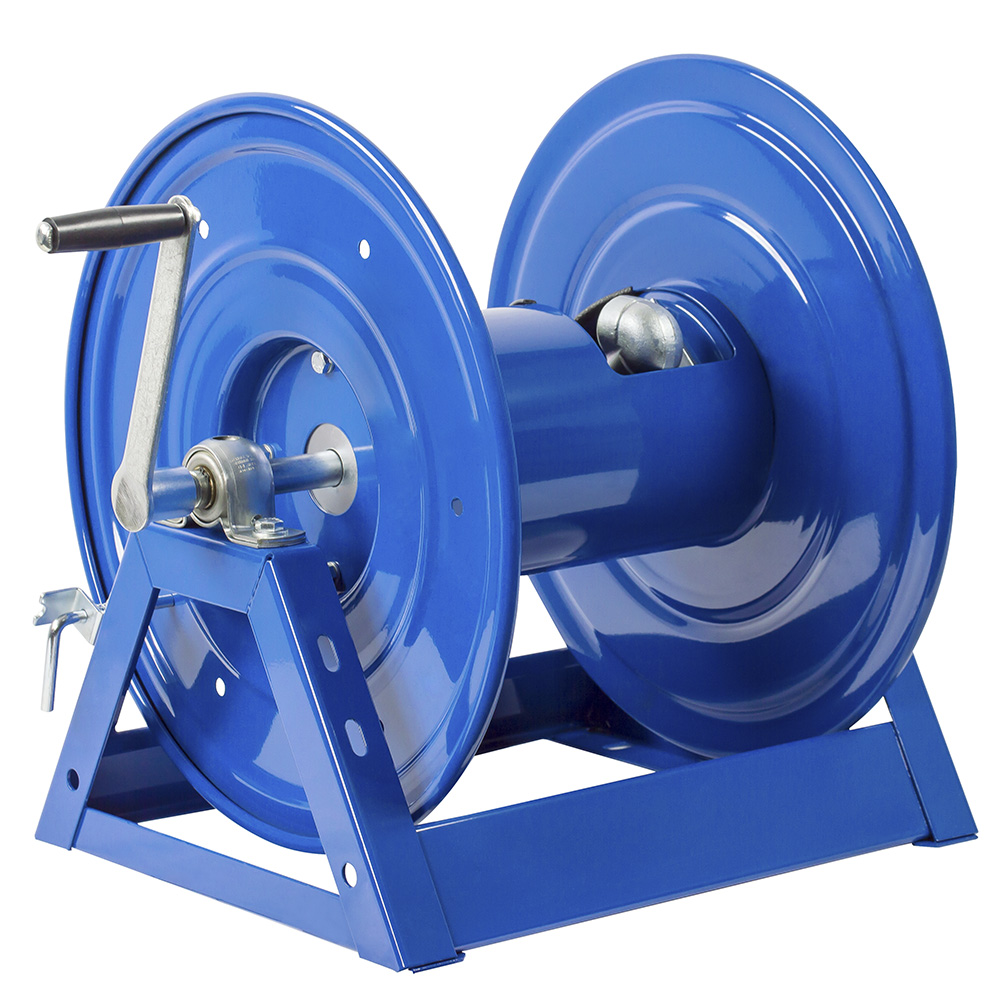

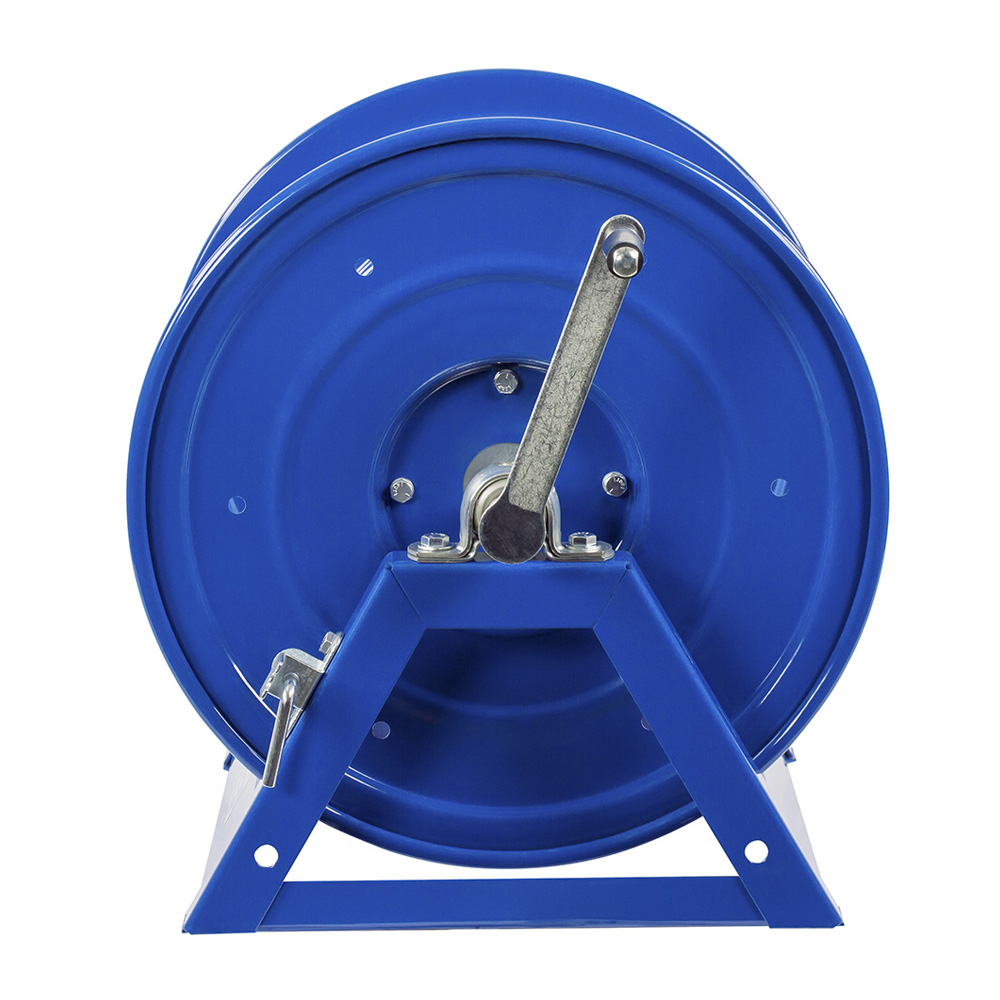

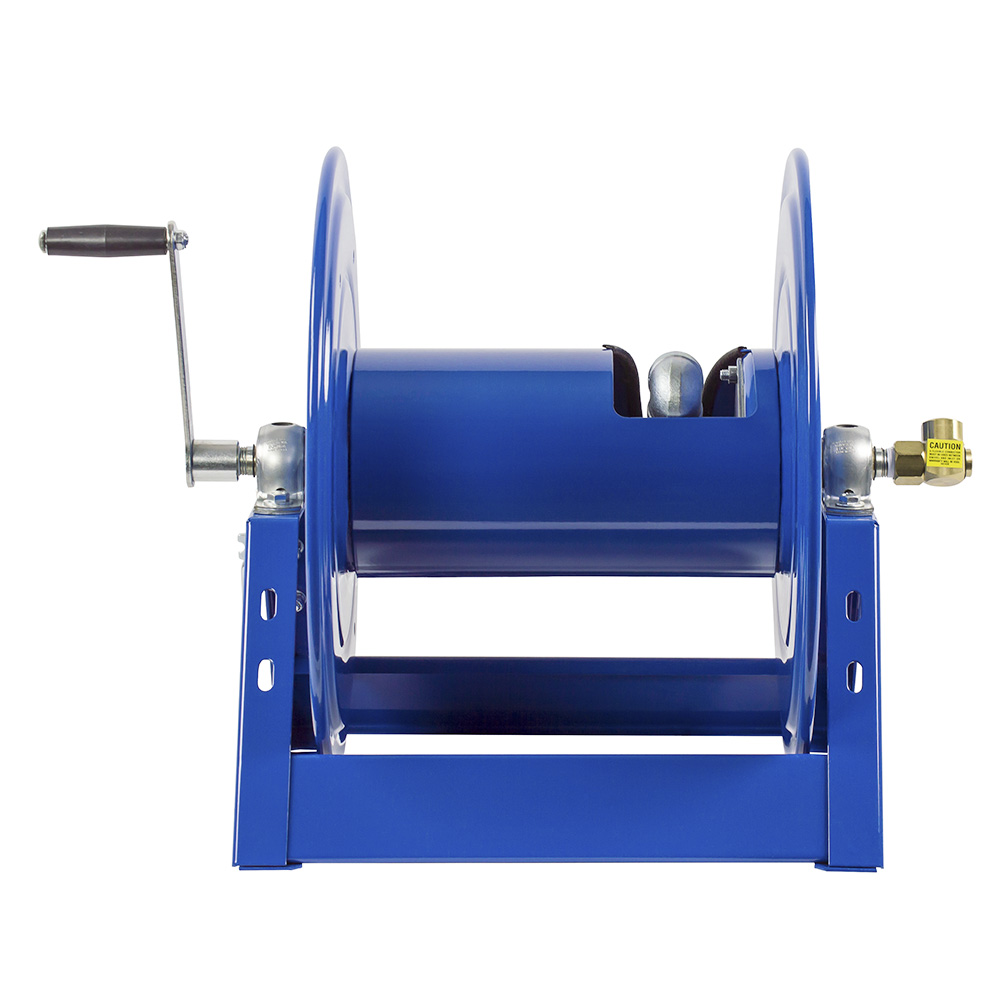

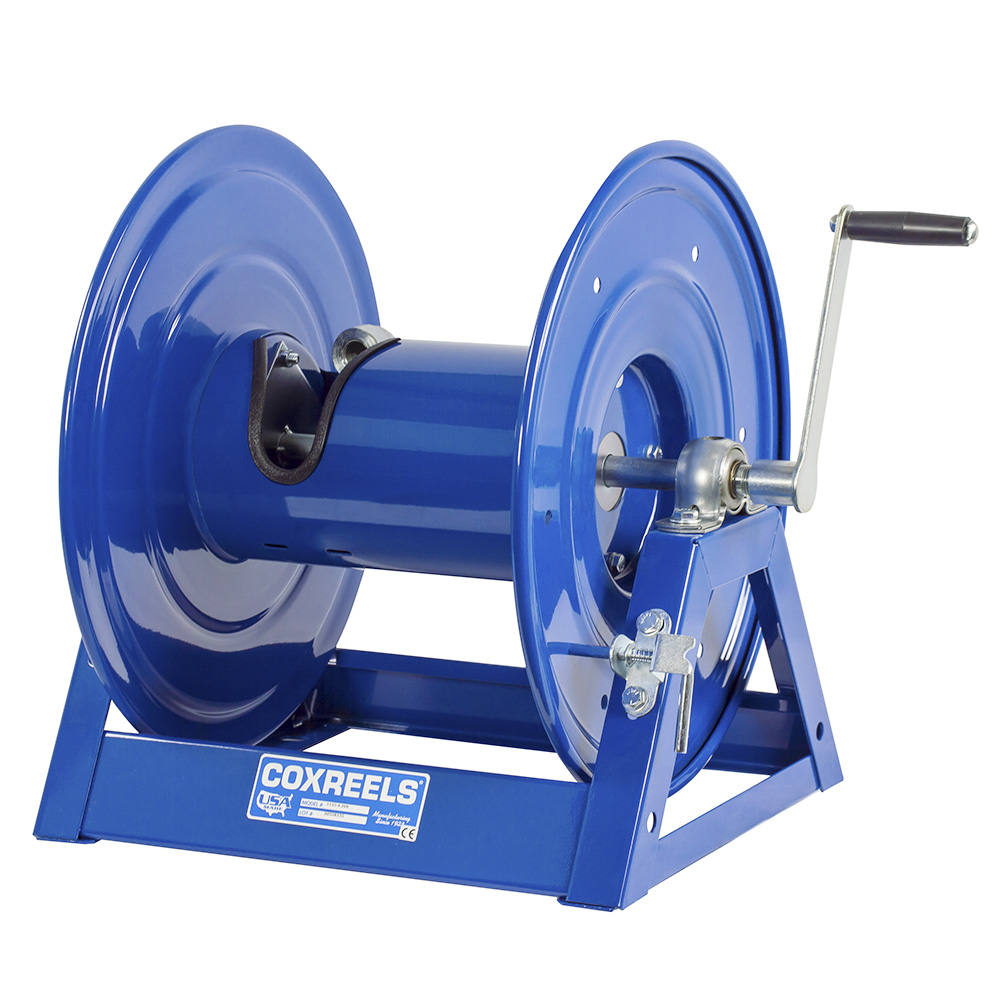

Coxreels 1125-5-175 hand crank hose reel is used for safe storage, transport & dispensing of hoses carrying air, water or chemical in pest control, pressure washing & chemical transfer applications. This reel is manually operated using a hand crank attached to the reel barrel for extending or retracting the attached hose. It is fitted with a gooseneck adapter to prevent kinks during the retraction of long-length hoses. This hose reel can handle a 175 feet hose having a 3/4 inch internal diameter and maximum operating pressure of 3000 psi.
| Height (cm) | 47.62 |
|---|---|
| Length (cm) | 44.78 |
| Width (cm) | 82.25 |
| HS Code | 0674255822283 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 22.5 |
Coxreels 1125-5-175 hose reel can operate in temperatures ranging from -40 to 250 degrees C.
Coxreels 1125-5-175 hose reel has steel construction for structural rigidity. All steel components feature CPC powder coating for chip and corrosion resistance.
Coxreels 1125-5-175 hose reel has six slotted holes on its base for easy installation on a wall, floor or ceiling in various mobile, truck and stationary applications.
| Style | Model | Max. Operating Pressure | Drive Type | Mounting | Hose Capacity | Overall Height | Mounting Size | Hose Length | Inside Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HP1125-4-100 | 5000 psi | Hand Crank | - | - | 18 3/4" | 9.44" x 10" | 250 ft. | 1/2" | $407.87 | |
| A | HP1125-4-100-C | 5000 psi | Hand Crank | - | - | 18 3/4" | 9.44" x 10" | 100 ft. | 1/2" | $610.40 | |
| A | HP1125-4-200 | 5000 psi | Hand Crank | - | - | 18 3/4" | 15.44" x 10" | 200 ft. | 1/2" | $408.80 | |
| A | HP1125-4-200-C | 5000 psi | - | - | - | 18 3/4" | 15.44" x 10" | 200 ft. | 1/2" | $623.47 | |
| A | HP1125-4-325 | 5000 psi | Hand Crank | - | - | 18 3/4" | 21.44" x 10" | 325 ft. | 1/2" | $420.93 | |
| A | HP1125-4-325-C | 5000 psi | Hand Crank | - | - | 18 3/4" | 21.44" x 10" | 325 ft. | 1/2" | $661.73 | |
| A | HP1125-4-450 | 5000 psi | Hand Crank | - | - | 18 3/4" | 27.44" x 10" | 450 ft. | 1/2" | $434.93 |
