| Item | Unloader Valve |
|---|---|
| Adjustable Pressure | Yes |
| Application | Air Compressors |
| Ball Material | Stainless Steel |
| Brass Body | Yes |
| Connection Type | NPT |
| Exhaust Size | 1/4" |
| Inlet Gender | Female |
| Inlet Size | 1/8" |
| Inlet Type | NPT |
| Max. Flow Rate | 14 CFM |
| Max. Temp. | 500°F |
| Maximum Air Flow | 15 CFM |
| Maximum Operating Pressure | 250 psi |
|---|---|
| Minimum Preset Pressure | 95 psi |
| O-ring Material | Silicon, Viton |
| Outlet Gender | Female |
| Outlet Type | NPT |
| Overall Depth | 2 1/4" |
| Overall Length | 3.09" |
| Poppet Material | PTFE |
| Preset Range | 110 psi to 125 psi |
| Pressure | 40 psi to 250 psi |
| Seat Material | Brass |
| Series | NR Series |

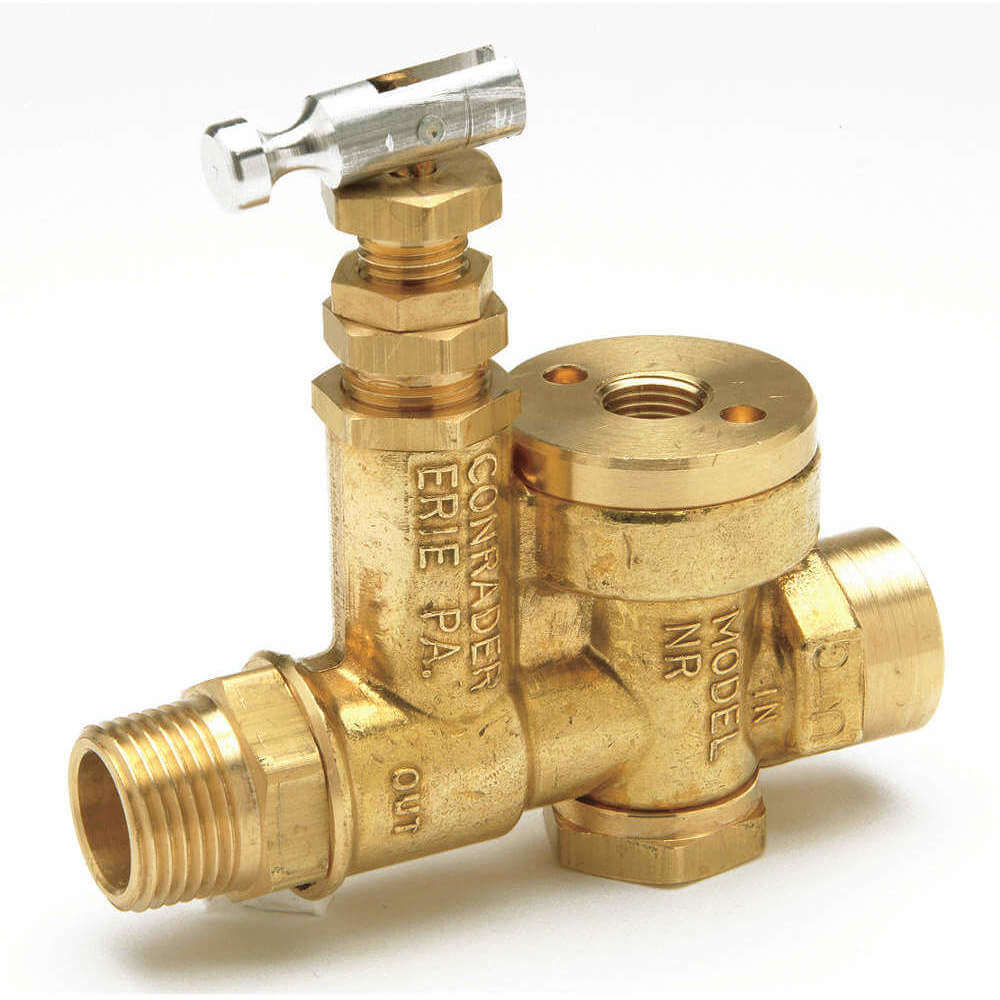

Conrader NRP-A unloader valve maintains pressure levels and prevents system overload by draining air from the compressors and providing a way for draining an air tank manually. It can convert a pressure switch control compressor into a constant speed unloader compressor.
| Height (cm) | 6.86 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 7.62 |
| HS Code | 8481100060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2925 |
40 to 250 psi.
500 degrees F.
14 CFM.
