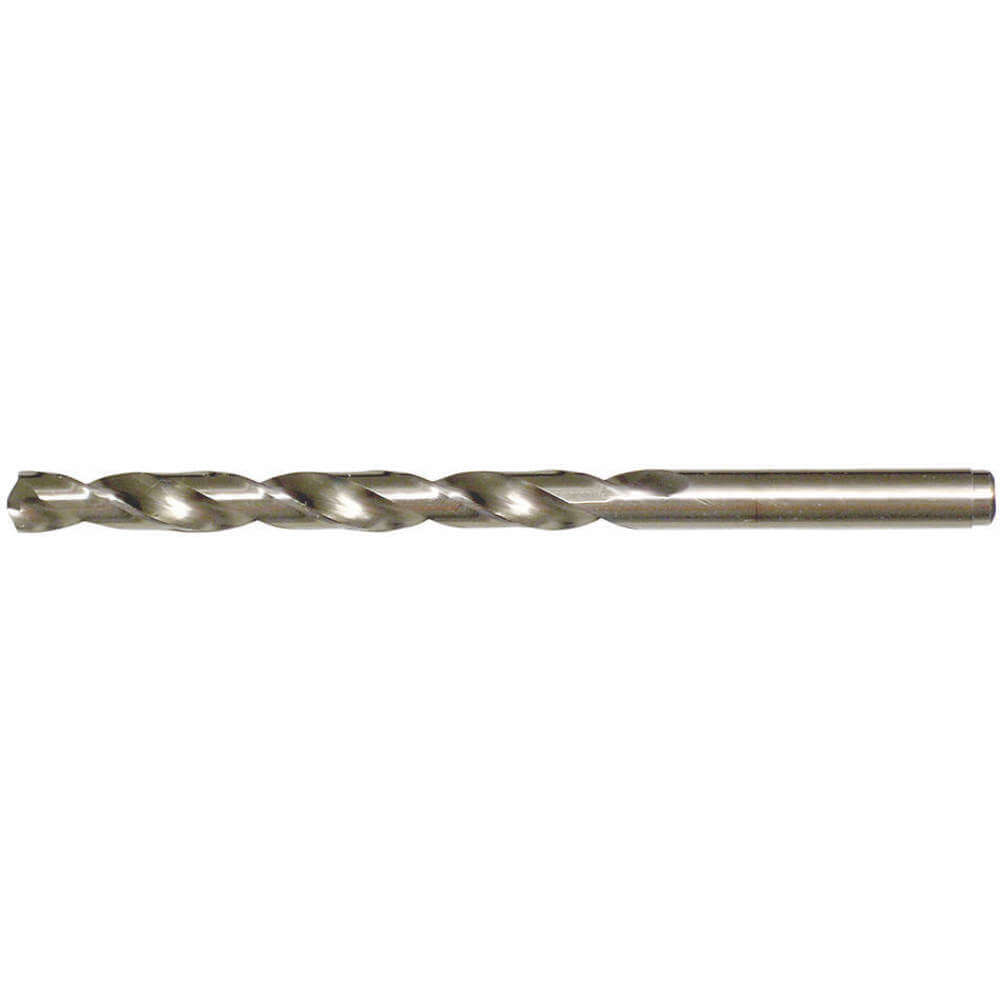

| Item | Jobber Drill Bit |
|---|---|
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0906 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 2.3 mm |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0188 mm |
| Finish | Straw |
| Finish - Machining | Straw, Bronze |
| Flute Length | 27 mm |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| List Number | 550 |
|---|---|
| Material | Cobalt Steel |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 51/64" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 53 mm |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Series | 550 Series |
| Shank Dia. | 2.3 mm |
| Shank Length | 26 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
| standard | DIN 338, NAS 907 TYPE J |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 8.8 |
| Width (cm) | 0.25 |
| HS Code | 8207504030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0045 |
| Style | Model | Decimal Equivalent | Flute Length | Drill Bit Size | Overall Length | Shank Dia. | Max. Drilling Depth | Shank Length | Drill Diameter Tolerance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 46604 | 0.0625 | 7/8" | 1/16" | 1 7/8" | 0.062" | 21/32" | 1" | -0" to +0.0005" | $4.91 | |
| A | 46605 | 0.0781 | 1" | 5/64" | 2" | 0.078" | 3/4" | 1" | -0" to +0.0005" | $4.83 | |
| A | 46606 | 0.0938 | 1 1/4" | 3/32" | 2 1/4" | 0.094" | 15/16" | 1" | -0" to +0.0005" | $5.20 | |
| A | 46607 | 0.1094 | 1 1/2" | 7/64" | 2 5/8" | - | 1 1/8" | 1 1/8" | -0" to +0.0005" | $5.59 | |
| A | 46608 | 0.125 | 1 5/8" | 1/8" | 2 3/4" | 1/8" | 1 7/32" | 1 1/8" | -0" to +0.0005" | $6.01 | |
| A | 46609 | 0.1406 | 1 3/4" | 9/64" | 2 7/8" | 0.141" | - | 1 1/8" | -0" to +0.0007" | $6.56 | |
| A | 46610 | 0.1563 | 2" | 5/32" | 3 1/8" | 0.156" | - | 1 1/8" | -0" to +0.0007" | $7.26 |
