| Item | Pool and Spa Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 6 3/5" |
| Bolt Circle Dia. | 5 13/16" |
| Color | Black |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10/1.8A |
| Height | 11" |
| Hp | 2 hp, 1/4 hp |
| Insulation Class | Class F |
| Length Less Shaft | 10 3/8" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
|---|---|
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450/1725 RPM |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Overall Height | 11" |
| Overall Length | 12 3/4" |
| Phase | 1 |
| Service Factor | 1 |
| Service Factor Amps | 10/1.8A |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 303 |
| Shaft Size | 1/2" |
| Shaft Thread Class | Class 2A |
| Shaft Thread Direction | Right Hand |
| Shaft Thread Size | 3/8"-16 |
| Shaft Thread Type | Coarse |
| Shaft Type | Threaded |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Standards | CSA (LR642), UL (E44549) |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 24.13 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 34 |
| Style | Model | Hp | Nameplate Rpm | Service Factor | Frame | Voltage | Service Factor Amps | No. Of Speeds | Shaft Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

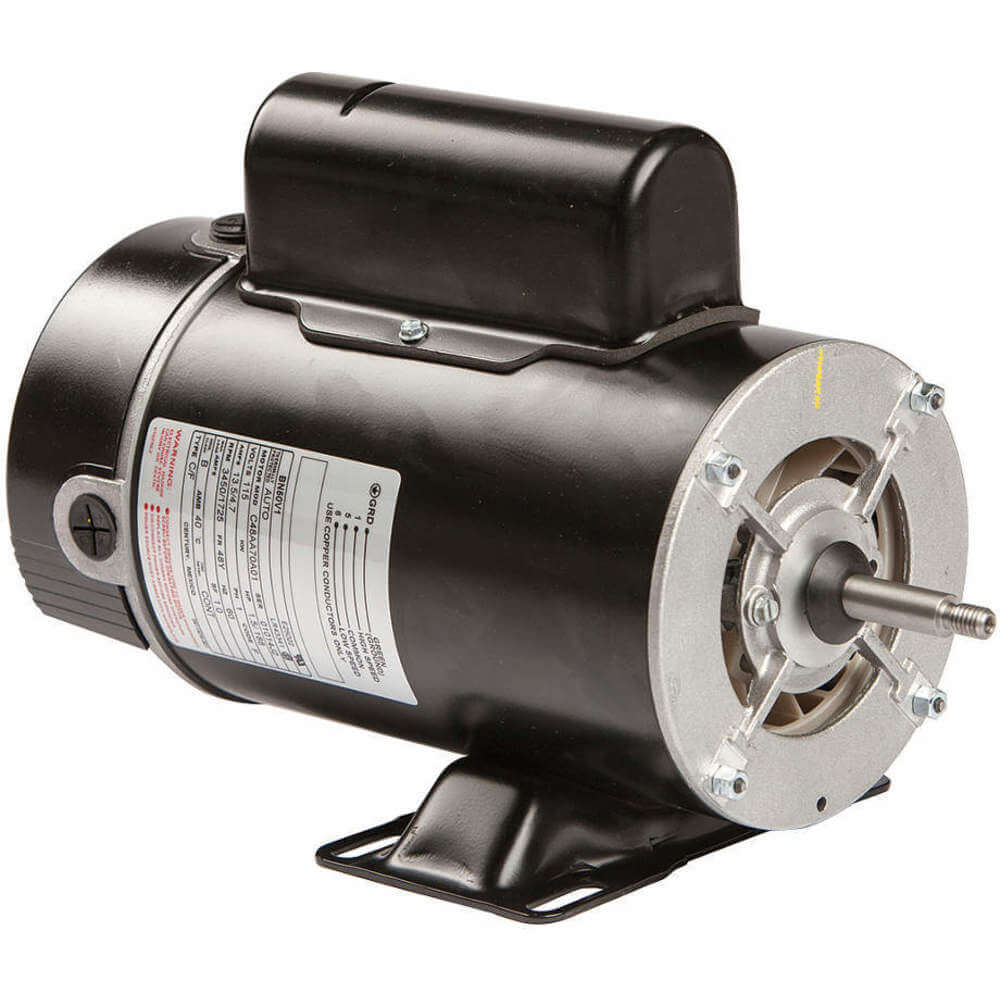

| A | BN50V1 | 1 1/2 hp, 3/16 hp | 3450/1725 RPM | 1 | 48Y | 115V AC | 13.5/4.7A | 2 | Stainless Steel | $682.50 | |
| B | BN34V1 | 1 1/2 hp, 3/16 hp | 3450/1725 RPM | 1 | 48Y | 230V AC | 6.5/2.5A | 2 | Steel | $664.58 | |

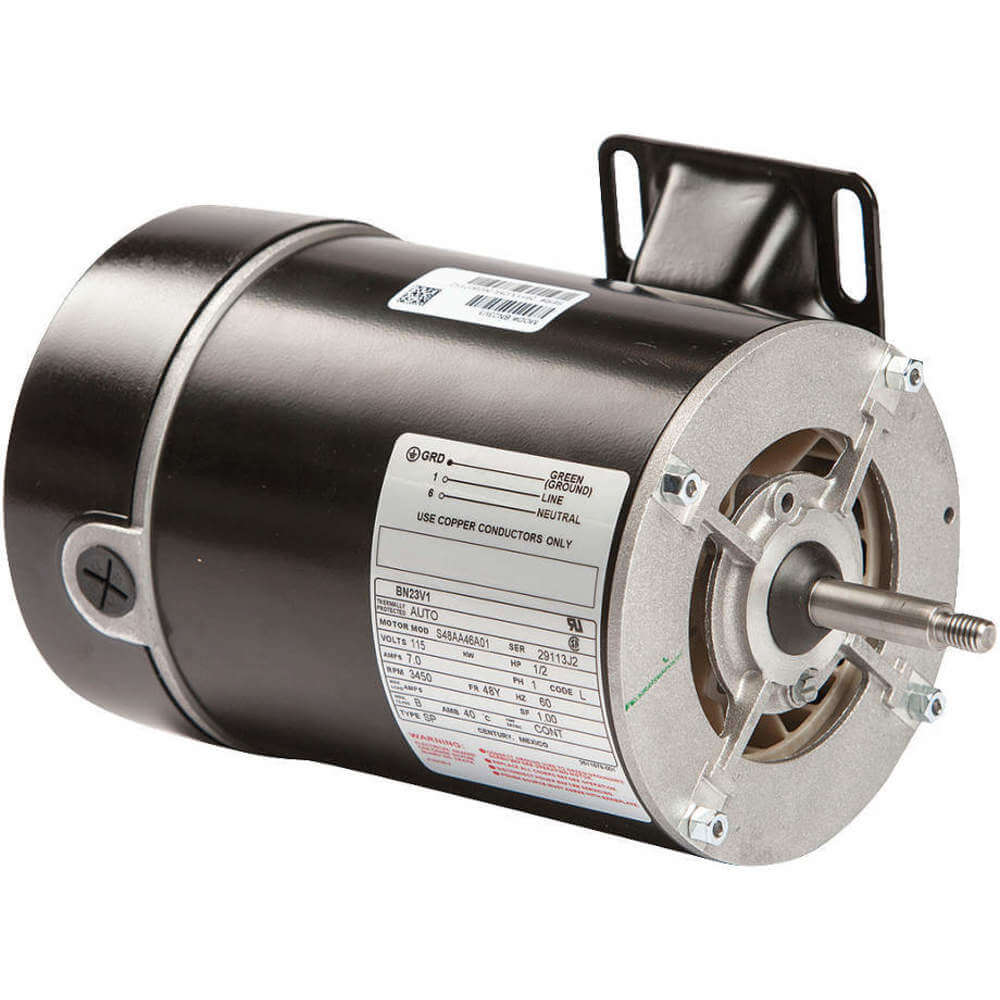

| C | BN23V1 | 1/2 hp | 3450 RPM | 1 | 48Y | 115V AC | 7A | 1 | Stainless Steel | $337.85 | |

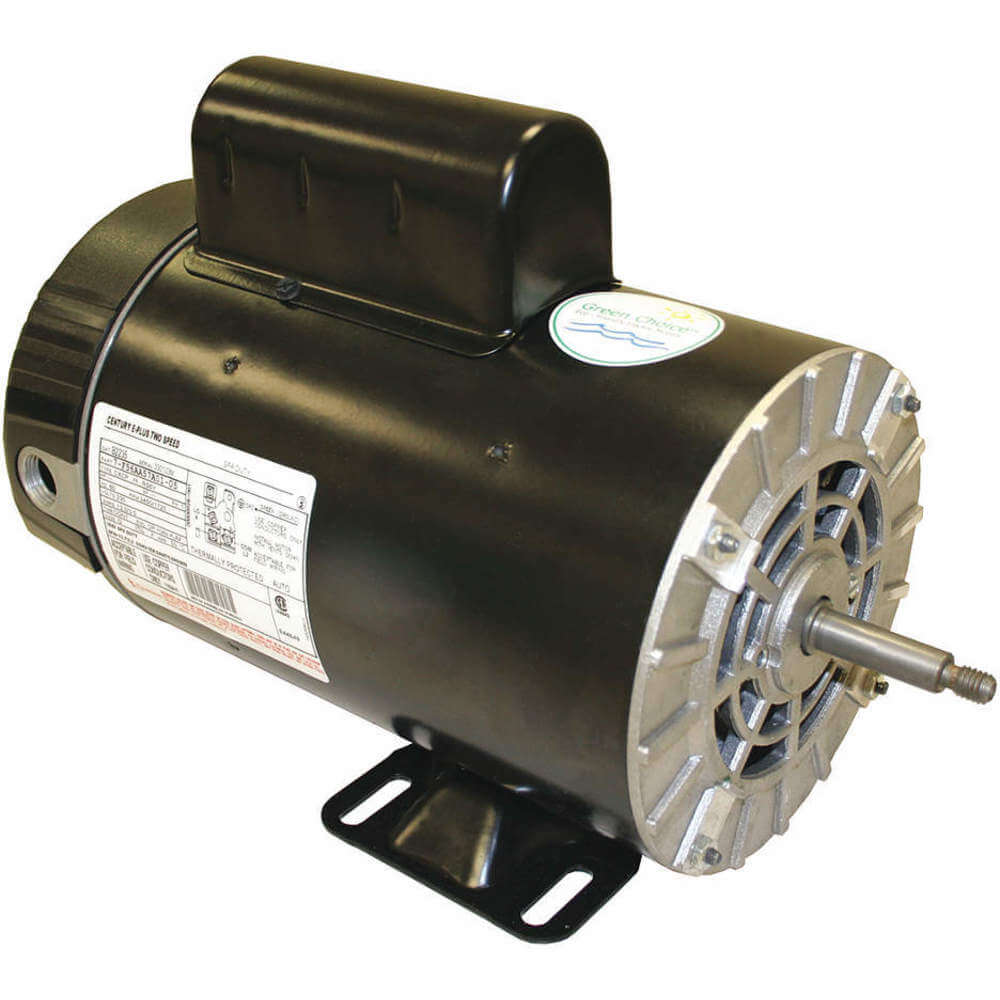

| D | B2235 | 4 hp, 1/3 hp | 3450/1725 RPM | 1 | 56Y | 230V AC | 12/3A | 2 | Stainless Steel | $936.16 | |

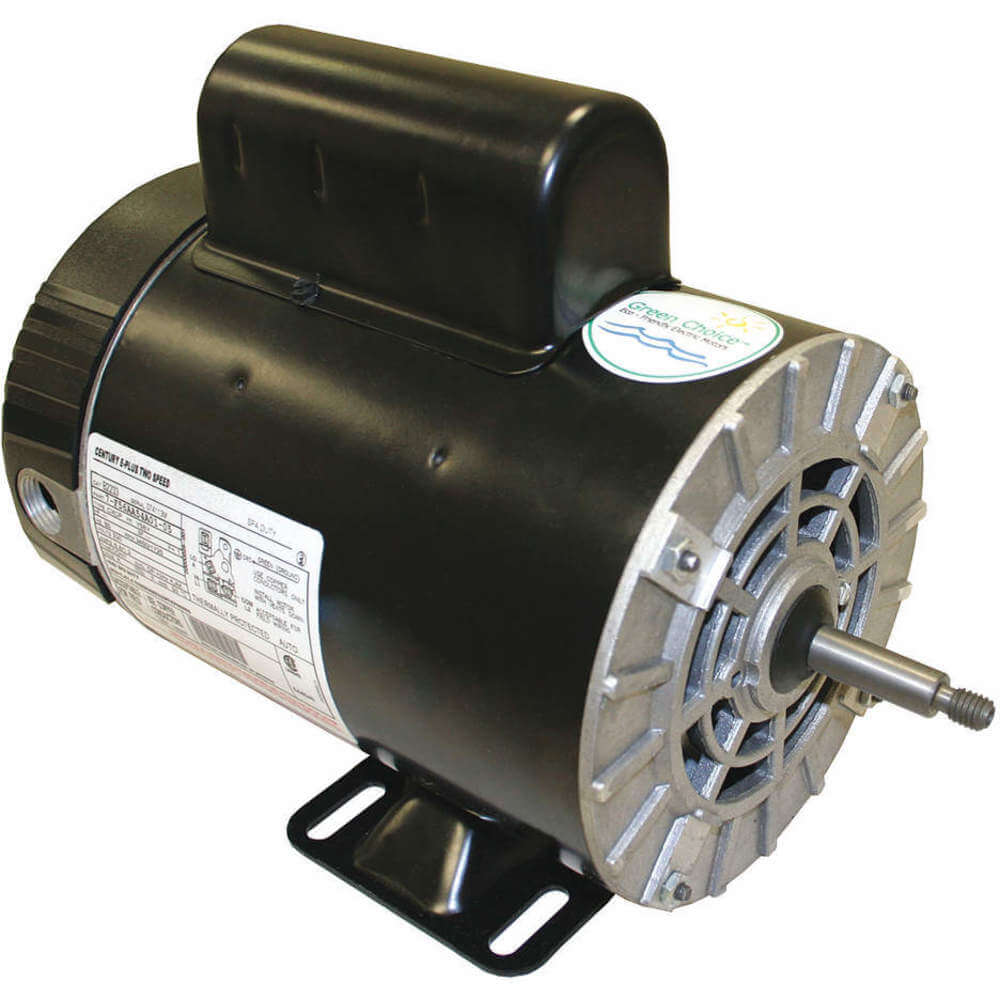

| E | B2233 | 2 hp, 1/6 hp | 3450/1725 RPM | 1 | 56Y | 230V AC | 7.4/1.4A | 2 | Stainless Steel | $785.34 | |
| F | B237 | 4 hp | 3450 RPM | 1 | 56Y | 230V AC | 12A | 2 | Stainless Steel | $843.81 | |

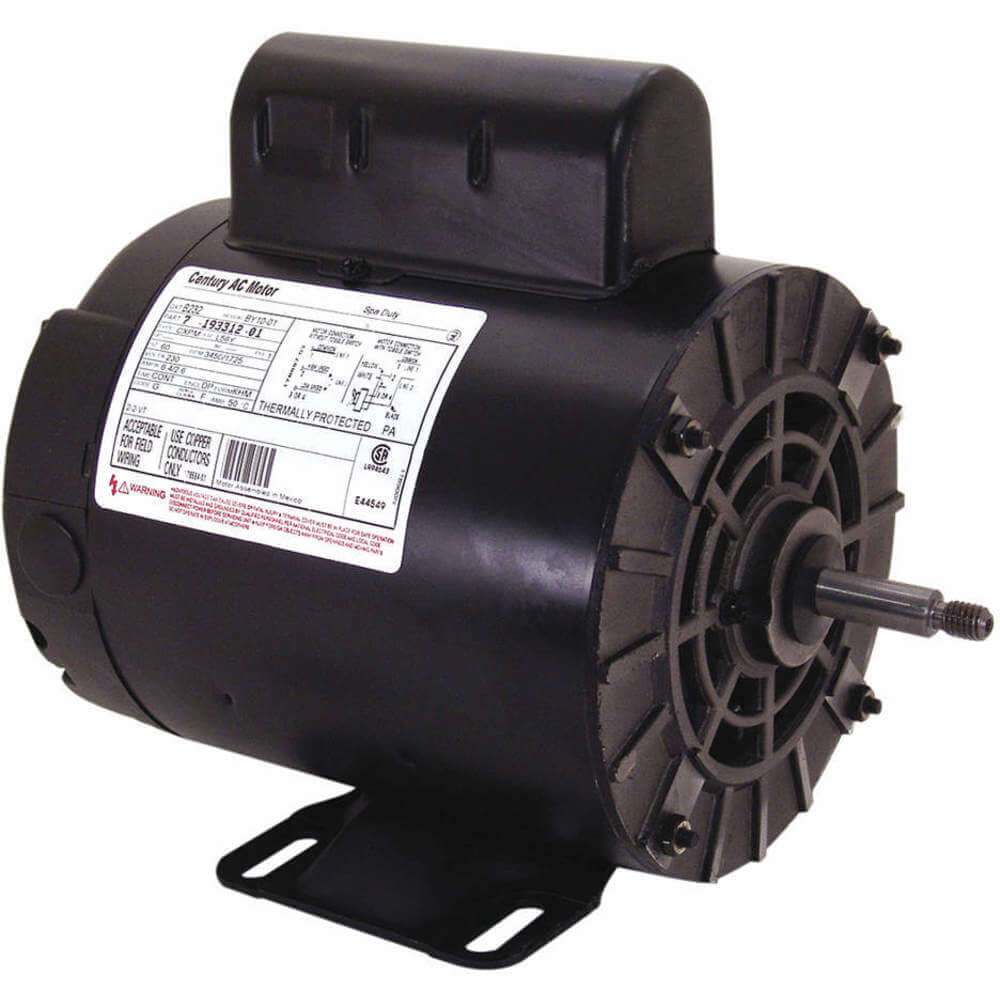

| F | B236 | 5 hp, 5/8 hp | 3450/1725 RPM | 1 | 56Y | 230V AC | 16.4/4.8A | 2 | Stainless Steel | $1,105.72 |
