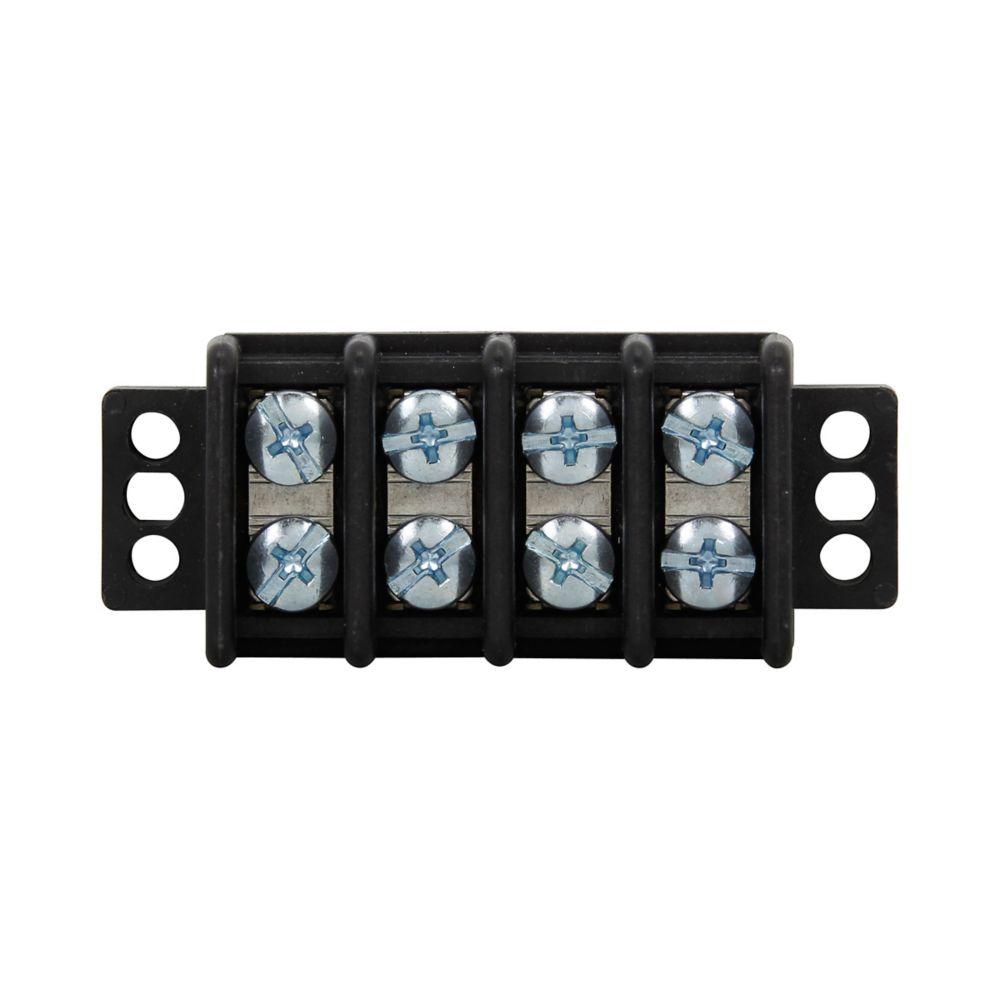

| Item | Terminal Block |
|---|---|
| Amps | 45A |
| Compatible Fuse Series | Family Series: Bussmann Terminal Blocks, TB345 Series |
| Contact Material | Brass |
| Fits Fuse Type | Terminal Block |
| Fuse Current | 45A |
| Fuse Overall Length | 9.43" |
| Height | 0.81" |
| Length | 9.43" |
| Material | Thermoplastic |
| Max. Operating Temp. | 130°C |
| Max. Wire Gauge | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Gauge | 22 AWG |
| Mounting Angle | Straight |
|---|---|
| Mounting Type | Panel , Surface Mount |
| Number Of Positions | 15 |
| Number Of Rows | 2 |
| Packaging | Bulk |
| Pitch | 14/25" |
| Plating | Tin |
| Product Type | Barrier Terminal Blocks |
| Series | TB345 Series |
| Termination Type | Screw |
| Voltage | 600V AC |
| Width | 1.33" |
| Wire Size | 8 AWG to 22 AWG |
| Height (cm) | 2.06 |
|---|---|
| Length (cm) | 23.95 |
| Width (cm) | 3.38 |
|---|---|
| Weight (kg) | 0.0004 |
| Style | Model | Number Of Positions | Mounting Type | Height | Wire Size | Voltage | Max. Wire Gauge | Min. Wire Gauge | Termination Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TB345-02SP | 2 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $3.94 | |
| B | TB345-03 | 3 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $4.64 | |
| A | TB345-04SP | 4 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $7.90 | |
| A | TB345-09 | 9 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $13.92 | |
| A | TB345-09SP | 9 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $17.76 | |
| C | TB345-17SP | 17 | Surface Mount | 0.81" | 8 AWG to 22 AWG | 600V AC | 8 AWG | 22 AWG | Screw | $31.44 |
