BUSSMANN

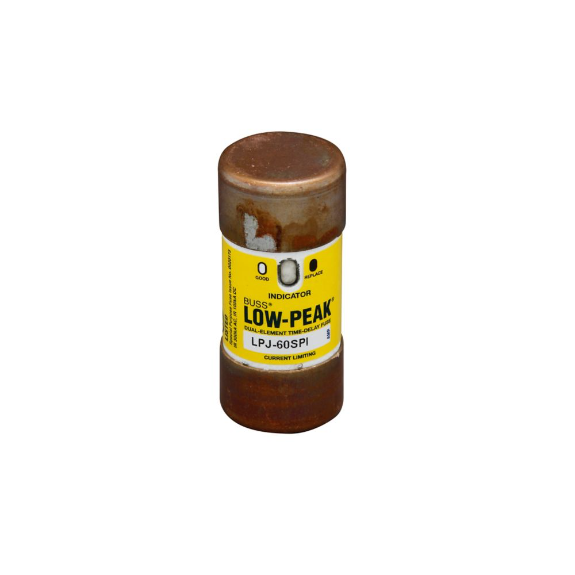

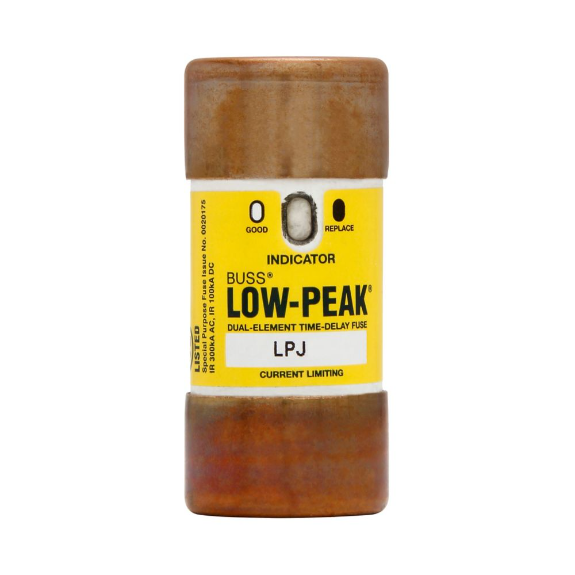

BUSSMANN LPJ-60SPI Low Peak Fuse, 60 A, 600 V

Item: AB3XWD
Model: LPJ-60SPI
Cross Ref: 1VXZ6
29 In Stock.

Ships within 2 days via

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$157.56
5% off
$149.68 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now
FREE delivery on orders over $ 150.00

Payment

Specifications

Item Fuse
Ac Voltage 600V AC
Amps 60A
Body Material Melamine
Body Style Cylindrical
Class Class J
Compatible Fuse Block Series Ch30J, Ch60J, J600, Jm600, Jm601, Jm602, Jm604, Jm606, Jp600, Jt600, Jtn600
Connection Type Ferrule End x Ferrule End
Dc Voltage Rating 300V DC
Depth Not Available
Diameter 1 1/16"
Element Dual
Equivalent Brand And Series Bussmann LPJ-I, Littlefuse JTD-ID, Mersen AJT Series
Equivalent Series Ajt, Jtd-Id, Lpj-I
Fits Fuse Block Style Nonrejection
Functionally Equal To Ferraz, Gould AJT, Littelfuse JTD
Fuse Block Design Non Rejection
Fuse Class Class J
Fuse Holder Code AA Alkaline
Fuse Length 2 3/8"
Fuse Size 2 3/8" x 1 1/16"
Fuse Type Time Delay Current Limiting
Indicating / Nonindicating Indicating
Interrupt Rating 100 kA at 300V DC, 300 kA at 600V AC
Length 2 3/8"
Overall Diameter 1 1/16"
Rejection / Nonrejection Rejection
Response Time 10 sec. @ 500%
Series LPJ-I Series
Source Mouser
Speed Time Delay
Speed Type Time Delay
Standards Ce/Ul-Special Purpose Guide Jfhr/Csa Class 1422-02
Visual Indication Indicating
Voltage 600V AC/300V DC
Width Not Available

Product Details

Bussmann LPJ-60SPI fuse is used in motor controls, panel boards, lighting systems, industrial and commercial electrical systems to protect circuits from overcurrents. It has a compact size and high interrupting capacity for reliable protection and to prevent damage due to excessive currents.

Shipping Information

Height (cm) 5.99
Length (cm) 2.69
Width (cm) 2.69
HS Code 8536100040
Country Of Origin MX
Weight (kg) 0.081

Features

  • It has an interrupt rating of 300kA for hassle-free installation.
  • This fuse features dual-element and time-delay performance to ensure enhanced protection against short-circuits and sudden electrical faults.
  • It offers an ampacity ratio of 2:1 to simplify selective coordination and enhance system reliability.
  • This LPJ-60SPI fuse comes with correct sizing to ensure no damage protection for NEMA and IEC rated motor controllers, boosting motor system reliability.

Documentation

Certifications

certificatecertificatecertificatecertificate

Frequently Asked Questions

How do I install this fuse?

  • Ensure power is switched off before starting.
  • Inspect the fuse for damage or defects.
  • Confirm the fuse size matches circuit requirements.
  • Open the fuse holder or panel.
  • Insert the fuse carefully.
  • Securely close the holder.
  • Turn the power back on.
  • Test the circuit for proper functioning.

What are the factors to consider while choosing a fuse for my application?

  • Choose a fuse with a rating slightly higher than the circuit's normal operating current.
  • Ensure the fuse's voltage rating matches or exceeds the circuit's voltage.
  • Match the fuse's time-current curve with the circuit's protection needs.
  • Account for factors like temperature, humidity and vibration affecting fuse performance.
  • Select fuse types based on the specific application's requirements.
  • Ensure that fuses in the system coordinate to clear faults while protecting critical components.
  • Confirm that the fuse fits safely within the available space.
  • Balance the fuse cost with performance and equipment value.

What safety precautions should I take while using this Bussmann LPJ-60SPI fuse?

  • Ensure that the power is turned off before handling the fuse.
  • Use appropriate personal protective equipment (PPE).
  • Confirm that the fuse matches circuit specifications.
  • Follow manufacturer's installation instructions.
  • Avoid touching the fuse during operation.
  • Regularly inspect for damage or wear.
  • Seek professional help for any issues.
  • Dispose of used fuses safely.
