| Item | Terminal Block |
|---|---|
| Amps | 60A |
| Contact Material | Brass |
| Height | 1 1/4" |
| Housing Material | Thermoplastic |
| Length | 2 1/2" |
| Max. Operating Temp. | 105°C |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 22 AWG |
| Mounting Angle | Straight |
| Mounting Position | Straight |
|---|---|
| Number Of Positions | 2 |
| Number Of Rows | 2 |
| Pitch | 0.62" |
| Plating | Nickel |
| Termination Style | Screw |
| Voltage | 600V AC |
| Width | 2" |
| Wire Size | 22 AWG to 6 AWG |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
|---|---|
| Weight (kg) | 0.081 |
| Style | Model | Amps | Housing Material | Pitch | Mounting Angle | Mounting Position | Plating | Wire Size | Contact Material | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | KUX12-WWCMT | 60A | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | Brass | 50 | $30.50 | |
| B | KUX4-W | 60A | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | Brass | 50 | $7.86 | |

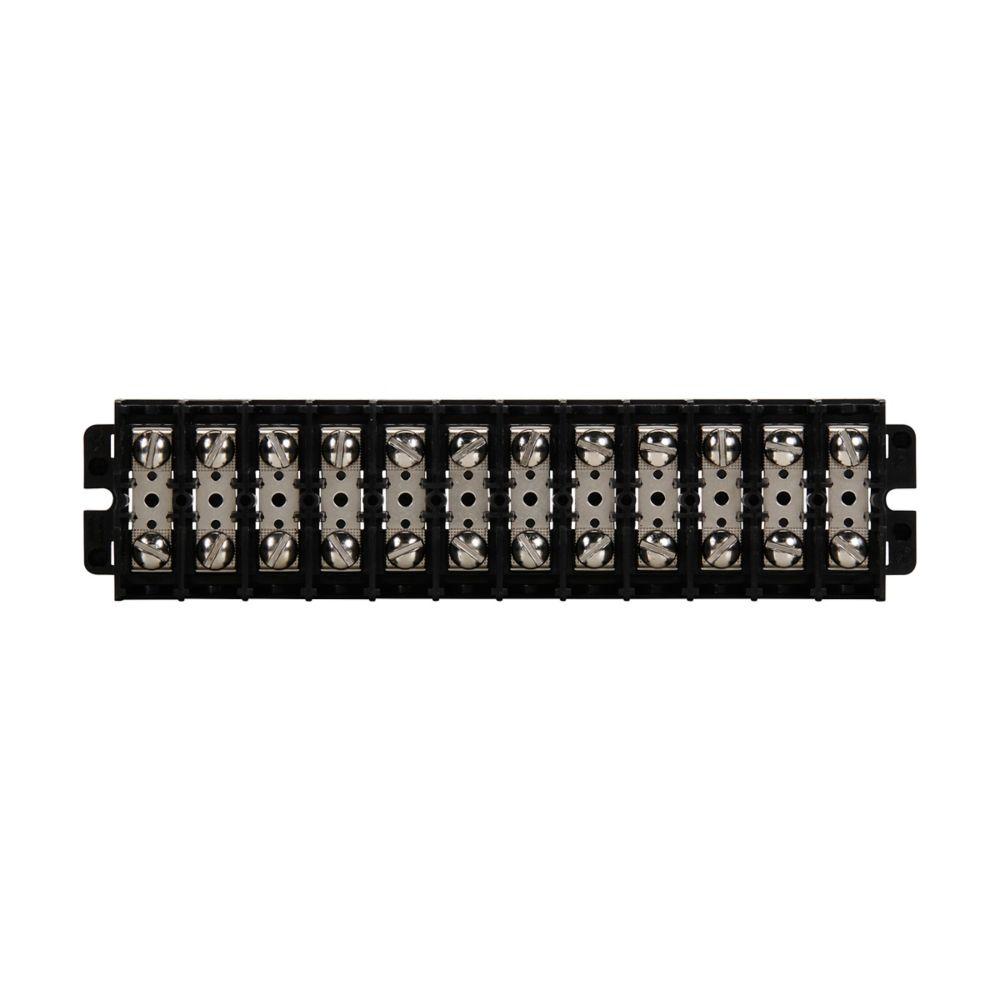

| B | KUX6-W | 60A | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | Brass | 50 | $12.02 | |

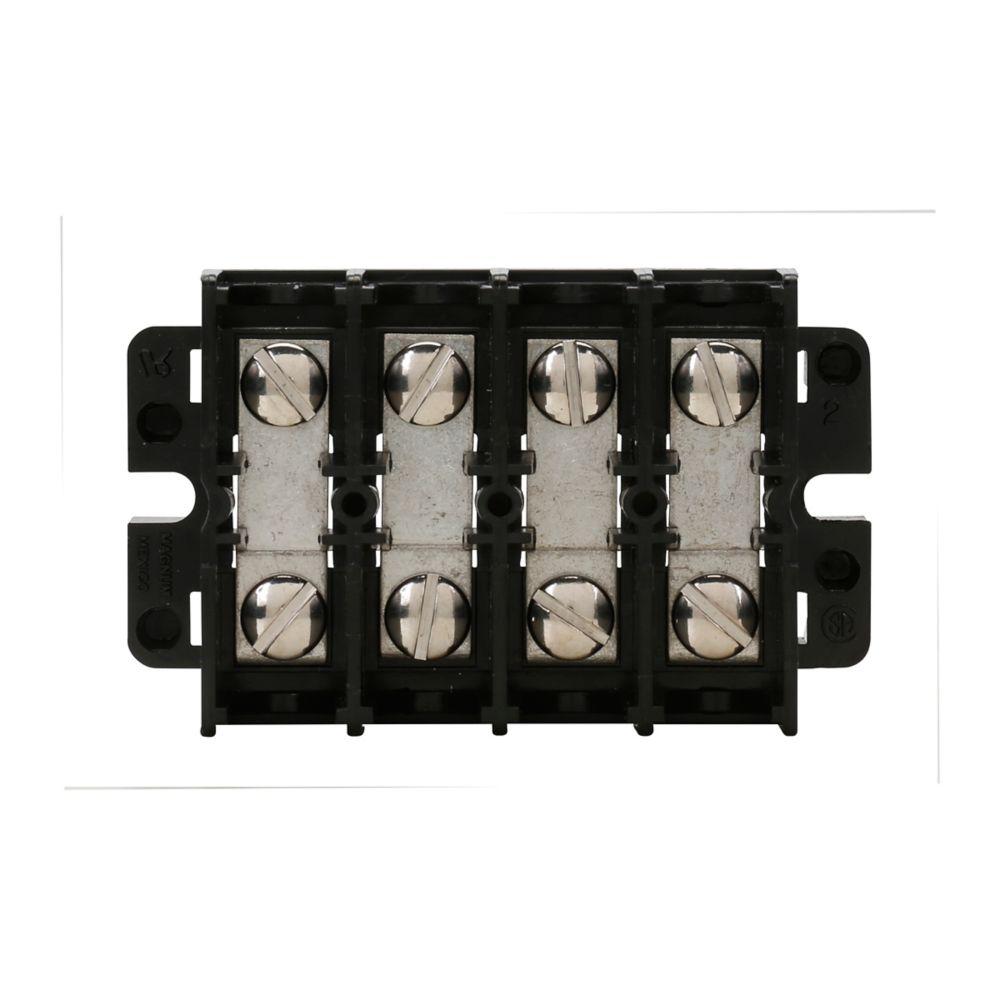

| C | KUXRL12 | 60A | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | Brass | 50 | $38.70 |
