| Item | Terminal Block |
|---|---|
| Amps | 60A |
| Contact Material | Brass |
| Height | 1/2" |
| Housing Material | Thermoplastic |
| Length | 6 1/4" |
| Max. Operating Temp. | 105°C |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 22 AWG |
| Mounting Angle | Straight |
| Mounting Position | Straight |
|---|---|
| Number Of Positions | 8 |
| Number Of Rows | 2 |
| Pitch | 0.62" |
| Plating | Nickel |
| Termination Style | Screw |
| Voltage | 600V AC |
| Width | 2" |
| Wire Size | 22 AWG to 6 AWG |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
|---|---|
| Weight (kg) | 0.1125 |
| Style | Model | Amps | Max. Operating Temp. | Housing Material | Pitch | Mounting Angle | Mounting Position | Plating | Wire Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | KU10-WCNU | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 100 | $23.86 | |

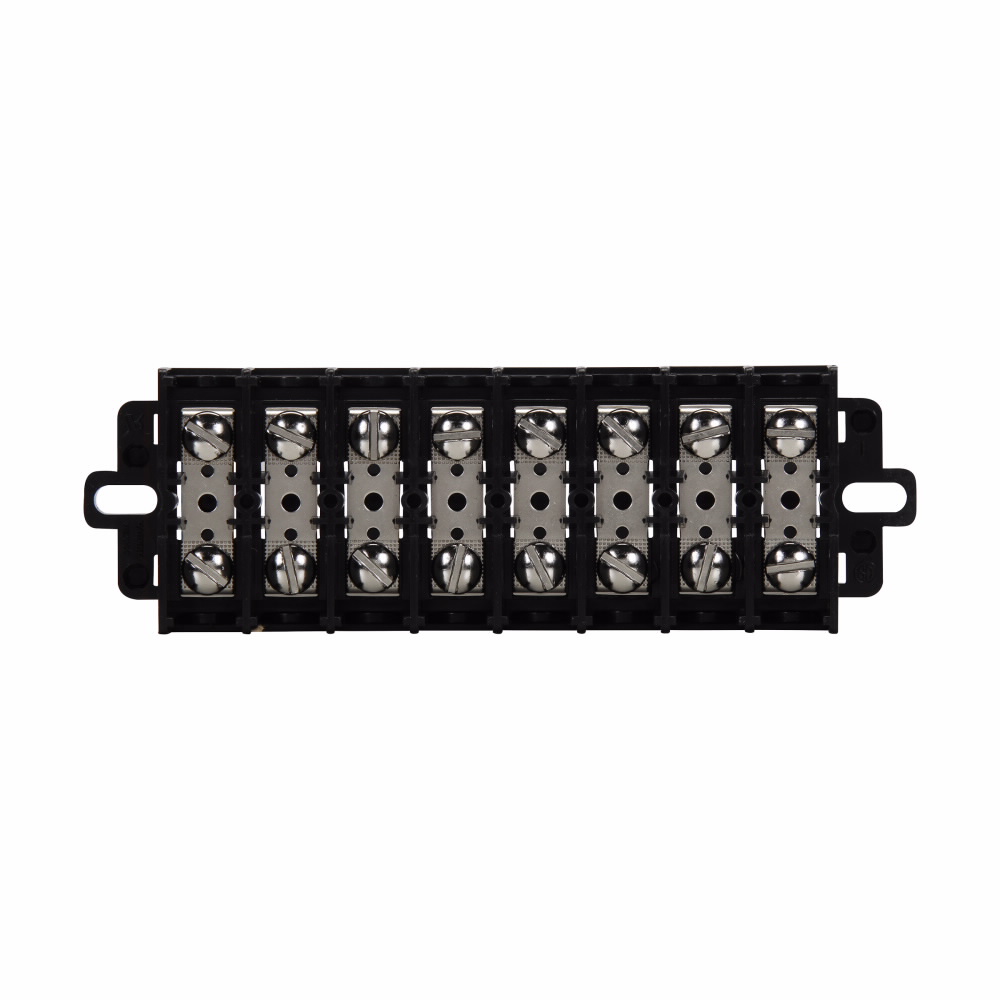

| B | KU12 | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 50 | $34.01 | |
| C | KU6-PNUV | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 1 | $41.28 | |
| C | KU6-WWCMT | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 1 | $17.78 | |

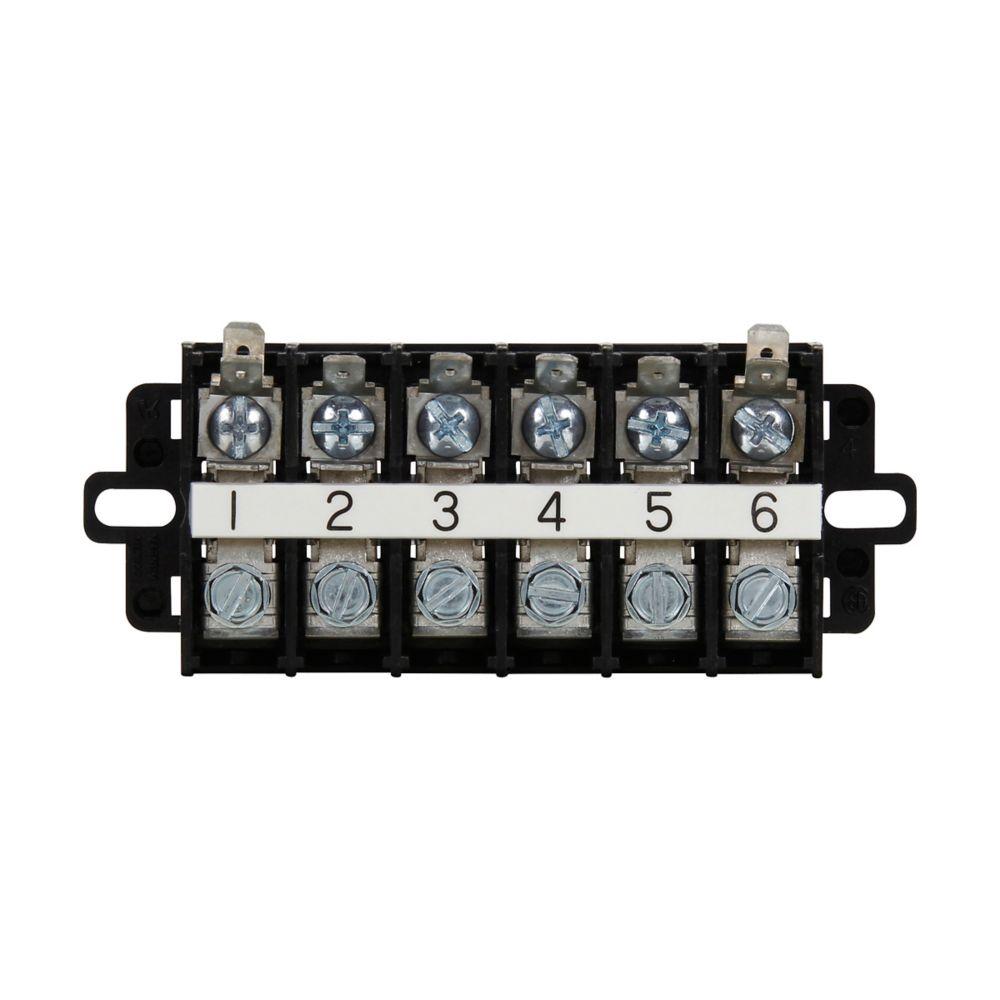

| D | KUH6C | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 50 | $29.90 | |
| - | KURL4-BP | 60A | 105°C | Thermoplastic | 0.62" | Straight | Straight | Nickel | 22 AWG to 6 AWG | 1 | $14.14 |
