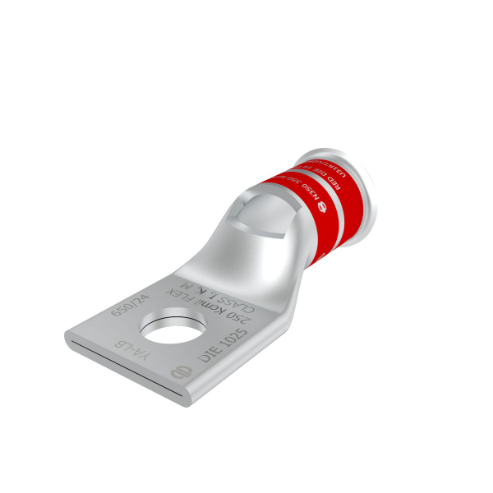

| Item | One Hole Standard Belled Barrel CU Flex Lug |
|---|---|
| Barrel Length | Short |
| Barrel Od | 22/25" |
| Barrel Size | Standard |
| Barrel Style | Belled |
| Body Material | Copper |
| Cable Size | 250 kcmil |
| Cable Size Code | 250 kcmil |
| Color Code | Red |
| Connection Orientation | Straight |
| Connector Type | Belled Straight Barrel |
| Contact Finish | Tin |
| Die Code | 1025 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 350 kcmil |
| For Wire Type | Stranded |
| Hole Center To End | 0.53" |
| Hole Size | 0.53" |
| Inspection Hole | Yes |
| Length | 2.93" |
| Length (straight Wireway) | 2.93" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
|---|---|
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 350 kcmil |
| Number Of Holes | 1 |
| Overall Length | 2.93" |
| Overall Width | 1.29" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Strip Length | 1 3/16" |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Length | 1.08" |
| Tongue Style | Standard |
| Tongue Thickness | 0.18" |
| Tongue Width | 1.29" |
| Width | 1.29" |
| Wire Material | Copper |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Height (cm) | 2.24 |
|---|---|
| Length (cm) | 7.44 |
| Width (cm) | 3.28 |
| HS Code | 8535908020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.09 |
| Style | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Overall Length | Strip Length | Hole Size | Cable Size Code | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

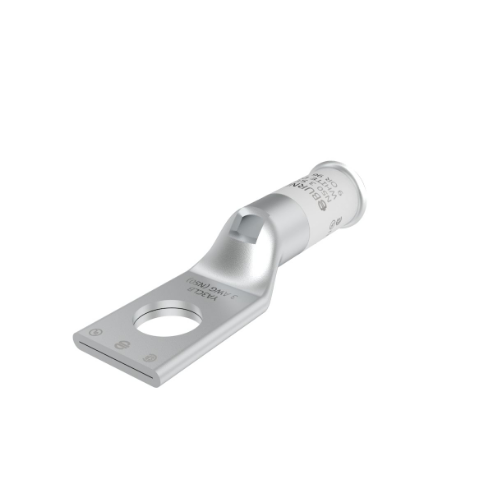

| A | YA3CLB | White | 5/16" | 4 AWG | 0.34" | 1.92" | 15/16" | 0.33" | - | $24.74 | |

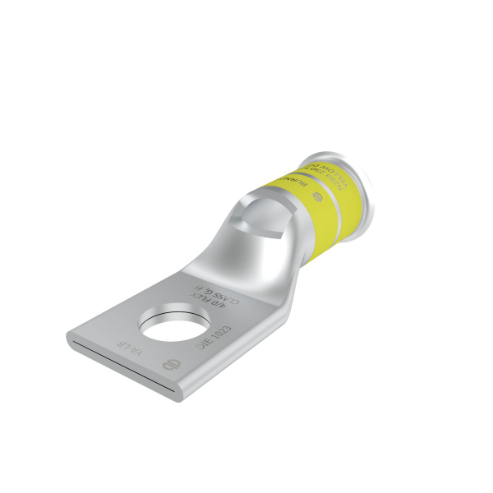

| B | YA29LB | Yellow | 1/2" | - | 0.53" | 2.77" | 1 1/16" | 0.53" | - | $43.04 | |

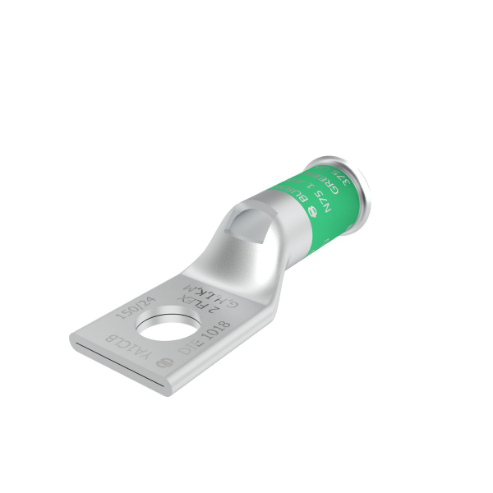

| C | YA1CLB | Green | 5/16" | 2 AWG | 0.34" | 1.97" | 15/16" | 0.33" | - | $20.74 | |
| D | YA27LB | Orange | 1/2" | - | 0.53" | 2.61" | 1 1/16" | 0.53" | - | $34.91 | |

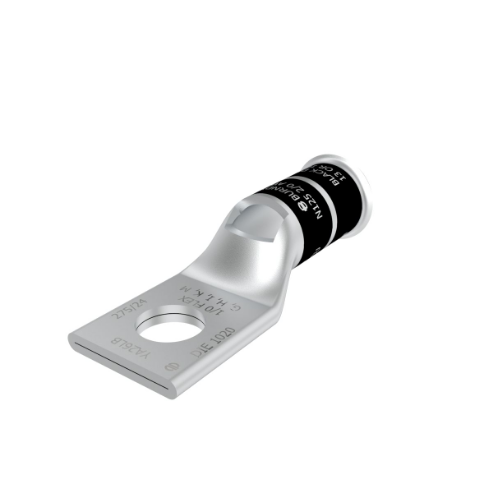

| E | YA26LB | Black | 3/8" | - | 0.41" | 2.26" | 1" | 2/5" | - | $24.81 | |

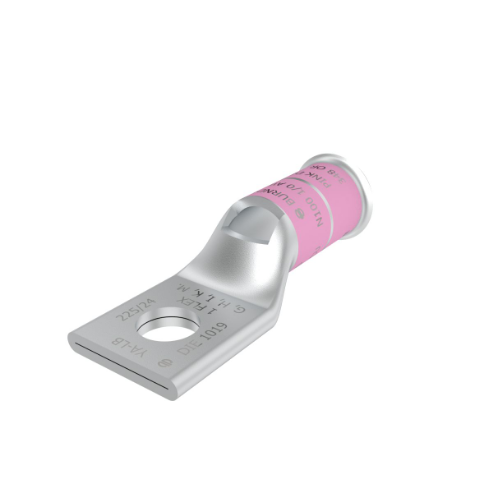

| F | YA25LB | Pink | 5/16" | 1 AWG | 0.34" | 2.02" | 15/16" | 0.33" | - | $23.47 | |

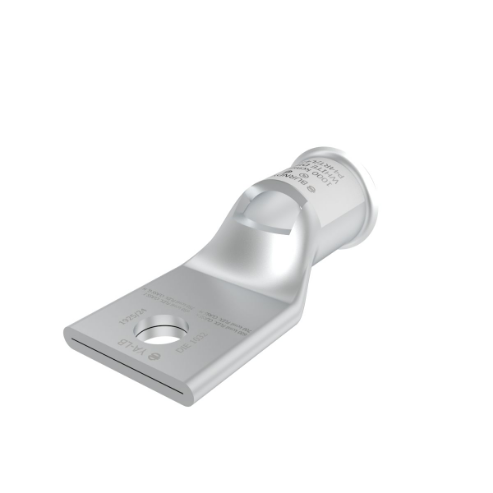

| G | YA44LB | White | 5/8" | 1000 kcmil | 0.66" | 4.82" | 1 15/16" | 0.69" | 750 kcmil | $254.67 |
