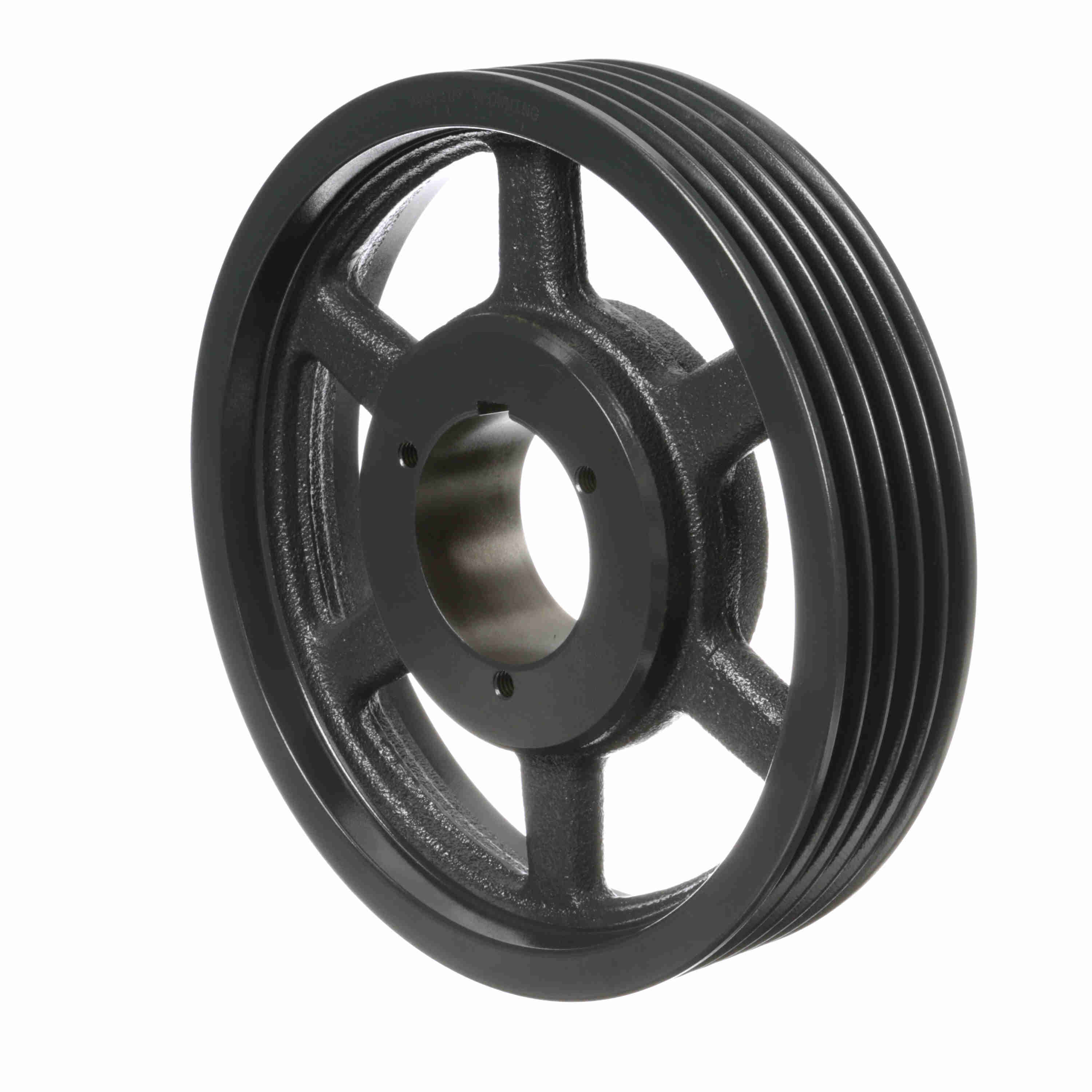

| Item | V-Belt Sheave |
|---|---|
| Belt Series | 3V Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 5/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
|---|---|
| No. Of Grooves | 5 |
| Outside Dia. | 10 3/5" |
| Overall Length | 3 1/16" |
| Pitch Dia. | 10.55" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
| Height (cm) | 5.72 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 26.67 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 8.01 |
| Style | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 1060128 | 4 3/4" | 1/2" to 1 3/4" | 2 5/16" | 2 9/16" | Type 13 Web | Split Taper | Cast Iron | $406.58 | |
| B | 1060227 | 5" | 1/2" to 1 3/4" | 2 5/16" | 2 9/16" | Type 13 Web | Split Taper | Cast Iron | $304.64 | |
| C | 1060524 | 6" | 3/4" to 2 11/16" | 2 5/16" | 2 25/32" | Type 13 Web | Split Taper | Cast Iron | $338.72 | |
| D | 1060326 | 5.3" | 1/2" to 1 3/4" | 2 5/16" | 2 33/64" | Type 13 Web | Split Taper | Cast Iron | $367.78 | |
| E | 1060680 | 6.9" | 3/4" to 2 11/16" | 2 5/16" | 3 1/16" | Type 13 Web | Split Taper | Cast Iron | $293.39 | |
| D | 1060425 | 5 3/5" | 1/2" to 1 3/4" | 2 5/16" | 2 9/16" | Type 13 Web | Split Taper | Cast Iron | $759.58 | |
| F | 1060763 | 8" | 3/4" to 2 11/16" | 2 5/16" | 3 1/16" | Type 13 Web | Split Taper | Cast Iron | $312.28 |
