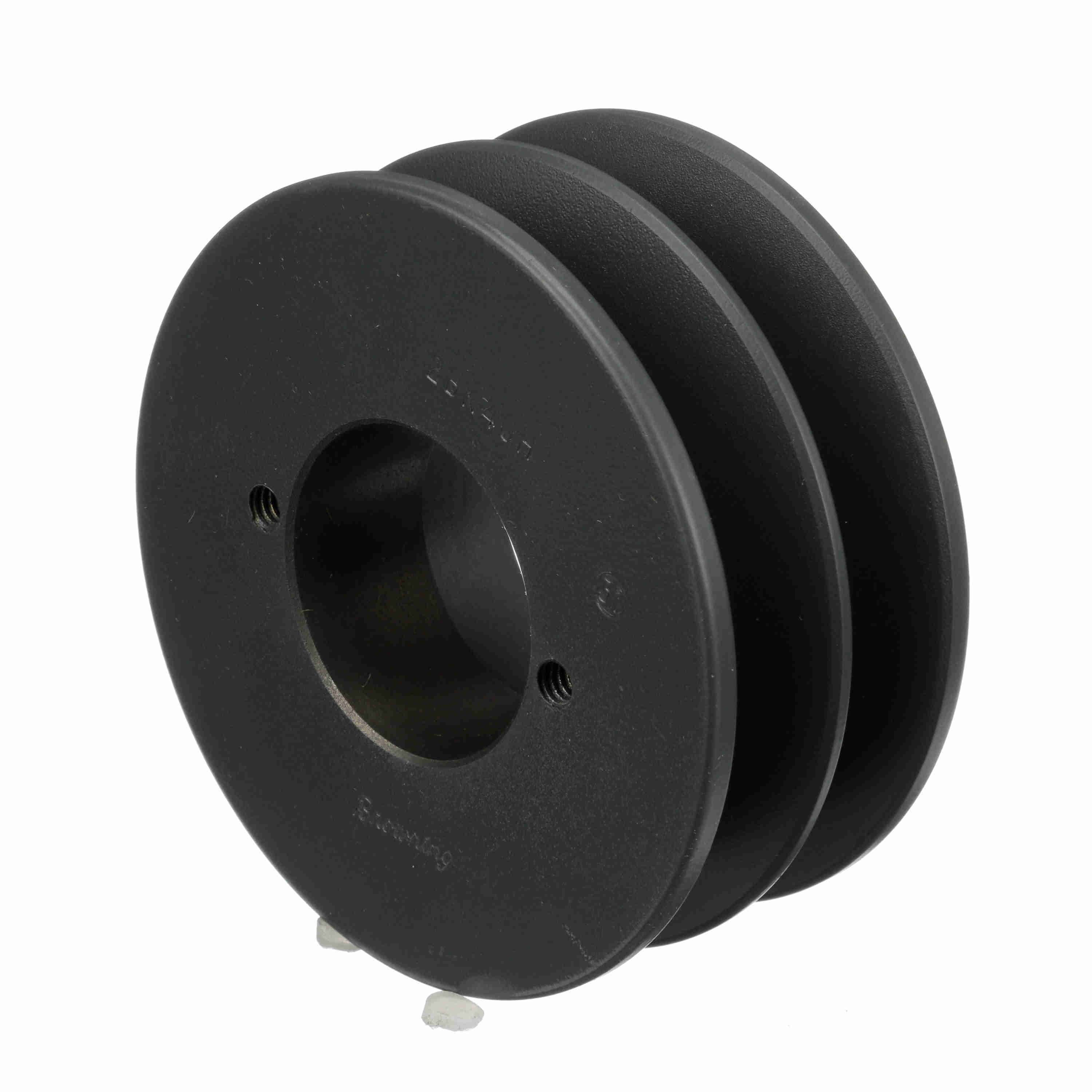

| Item | V-Belt Sheave |
|---|---|
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Outside Dia. | 3.95" |
|---|---|
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 3 2/5" |
| Pitch Dia. (b) | 3.9" |
| Series | BK Series |
| Suitable For Use With | Classical Gripbelt 4L/A And 5L/B Cross Section Belts |
| Type | Type 2 |
| Height (cm) | 4.83 |
|---|---|
| Length (cm) | 11.68 |
| Width (cm) | 11.68 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.1925 |
| Style | Model | Bore Dia. | Bore Type | Outside Dia. | Type | Overall Length | Material | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 1033018 | 1/2" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | $243.62 | |
| B | 1033059 | 1/2" | Finished | - | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | $130.16 | |
| C | 1042951 | 3/8" to 1 1/2" | Split Taper | 3.35" | Type 1 | 2 21/32" | Cast Iron | 1 3/4" | $157.40 | |
| D | 1042977 | 3/8" to 1 1/2" | Split Taper | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | $153.52 | |
| E | 1042969 | 3/8" to 1 1/2" | Split Taper | 3.55" | Type 1 | 2 21/32" | Cast Iron | 1 3/4" | $140.45 | |
| F | 1042993 | 3/8" to 1 1/2" | Split Taper | 4 1/4" | Type 2 | 2 7/32" | Cast Iron | 1 3/4" | $130.98 | |
| G | 1033042 | 7/8" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | $243.92 |
