| Item | Farm Duty Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 8.8/4.4A |
| Base Type | Not Applicable |
| Break-down Torque | 7 lbs.-ft. |
| Class | Stock |
| Code | M |
| Conduit Box Position | F1 |
| Design Code | N |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Torque | 2.25 lbs.-ft. |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 6#18, 1#14 #4Th |
| Line-line Res. @ 25° C | 2.35 ohms A Ph/1.76 ohms B Ph |
| Locked-rotor Torque | 10.2 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Footless |
| Multiplier | K |
| Nema/iec | NEMA |
| No Load Amps | 3.2A |
| No. Of Poles | 4 |
|---|---|
| No. Of Speeds | 1 |
| Nominal Efficiency | 74% |
| Overall Length | 13.35" |
| Phase | 1 |
| Power Factor | 75 |
| Proprietary | No |
| Pull-up Torque | 6.5 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | X |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 35A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 74°C |
| Temp. Rise @ Rated Load | 59°C |
| Temp. Rise @ S. F. Load | 74°C |
| Thermal Protection | Manual |
| Type | 3432LC |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
| Base Indicator | None |
| Xp Class And Group | None |
| Height (cm) | 33.33 |
|---|---|
| Length (cm) | 49.21 |
| Width (cm) | 34.92 |
| HS Code | 85013100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 19.8 |
| Style | Model | Voltage | Hp | Motor Design | Motor Service Factor | Insulation Class | Service Factor | Mounting Type | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

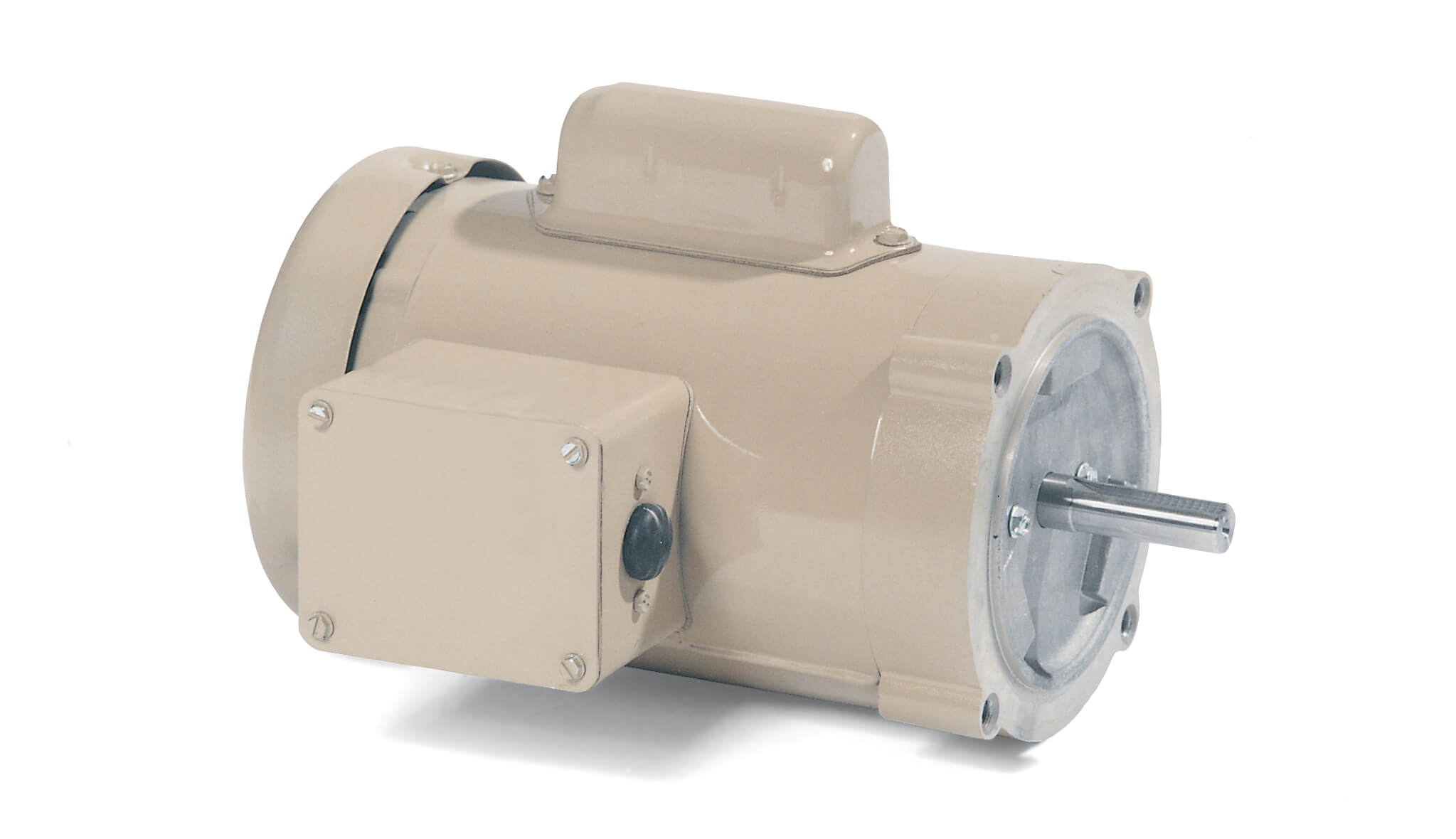

| A | VFDL3501M | 115/230V | 1/3 hp | - | - | Class B | 1.35 | C Face, Footless | 11.35" | $968.50 | |
| A | VFDL3504M | 115/230V | 1/2 hp | - | - | Class B | 1.25 | C Face, Footless | 11.97" | $1,109.30 | |
| A | VFDL3510M | 115/230V | 1 hp | Capacitor Start | 1.15 | Class F | 1.15 | C Face, Footless | 13.23" | $1,385.50 | |
| B | VFDL3514M | 115/208-230V | 1 1/2 hp | Capacitor Start/Run | 1 | Class F | 1 | Rigid Base | 14.1" | $1,640.25 |
