| Item | Rivet Nut |
|---|---|
| Application | Use In Punched Or Drilled Holes In Blind Applications |
| Body Dia. | 0.53" |
| Body Length | 11/16" |
| Body Texture | Knurled |
| Body Type | Round |
| Cad Available | Yes |
| Compatible Material | Metal |
| Display Qty | 10 |
| Drill Bit Size | 0.531", 17/32" |
| Drill Size | 17/32" |
| End Type | Open |
| Features | Corrosion Resistant |
| Finish | Zinc Yellow |
| Flange Dia. | 0.685" |
| Flange Style | Flanged |
| Flange Thickness | 0.035" |
| Grip Range | 0.027" to 0.15" |
| Head Height | 0.035" |
|---|---|
| Insert Diameter | 0.53", 17/32" |
| Insert Nut Type | Rivet Nut |
| Installation Method | Pneumatic, Hydraulic Tool, Spin, Spin Aro Pneumatic Tool |
| Installed Length | 15/32" |
| Length | 11/16" |
| Material | Steel |
| Material Grade/class | Grade 1010, Grade 1008, Grade 1010, Grade 1008 |
| Maximum Hole Diameter | 0.5312" |
| Maximum Material Thickness | 0.15" |
| Minimum Material Thickness | 0.027" |
| Overall Length | 23/32" |
| Rivet Type | Knurled Flanged |
| System Of Measurement | Inch |
| Thread Direction | Right Hand |
| Thread Fit | 2B |
| Thread Size | 3/8"-16 |
| Thread Type | Coarse |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 17.78 |
| Width (cm) | 12.7 |
| HS Code | 7318160000 |
|---|---|
| Weight (kg) | 0.0855 |

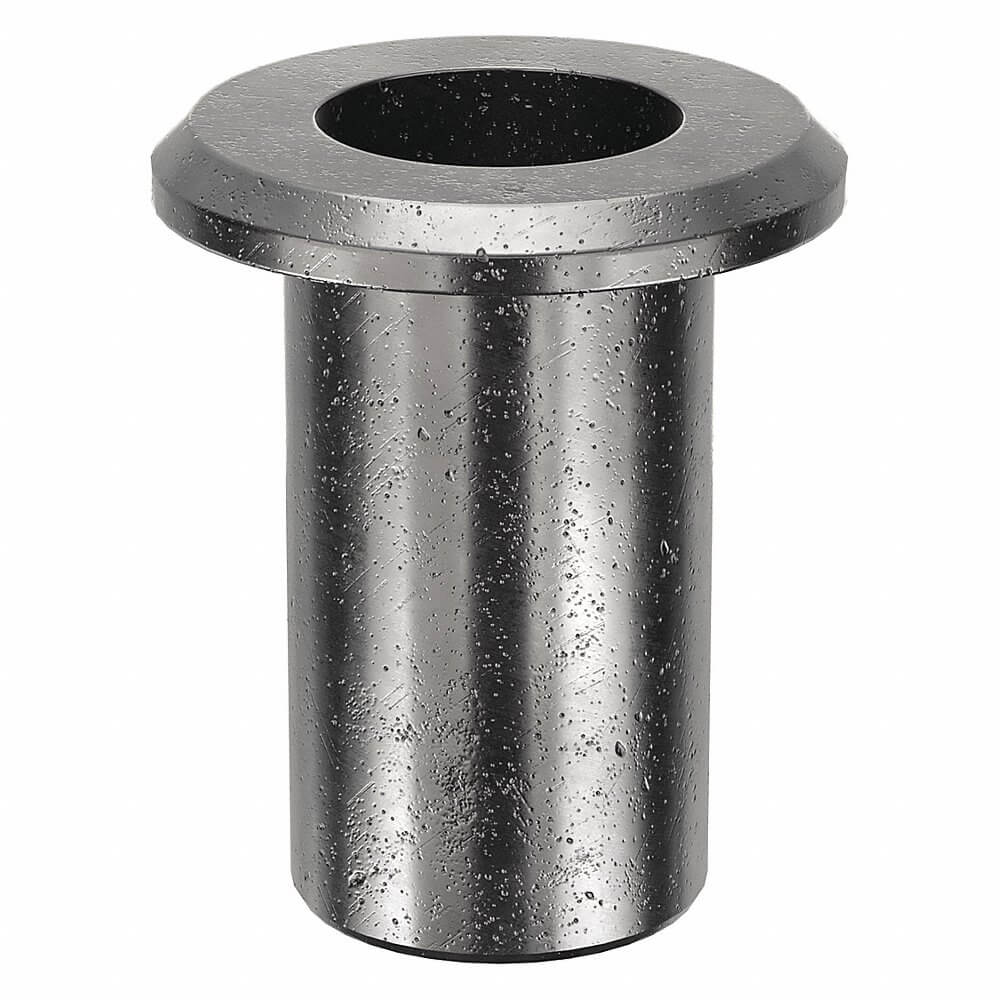

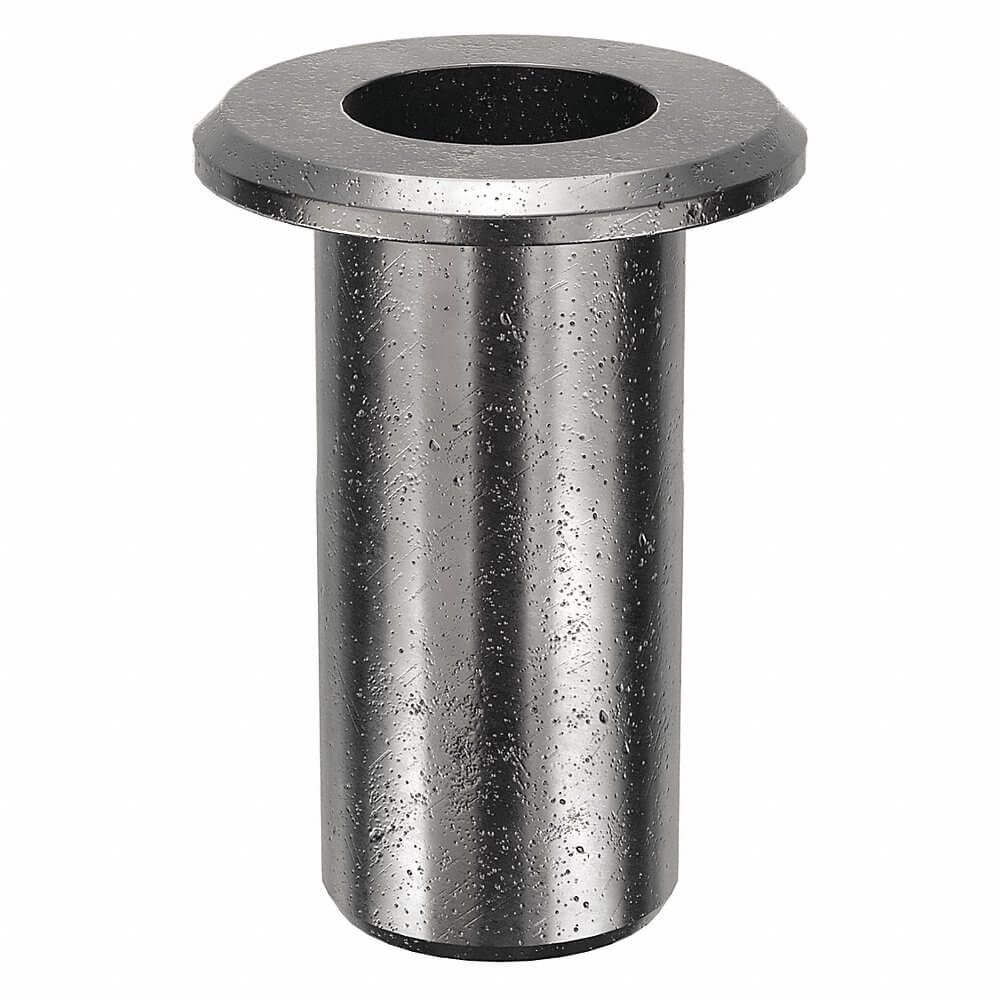

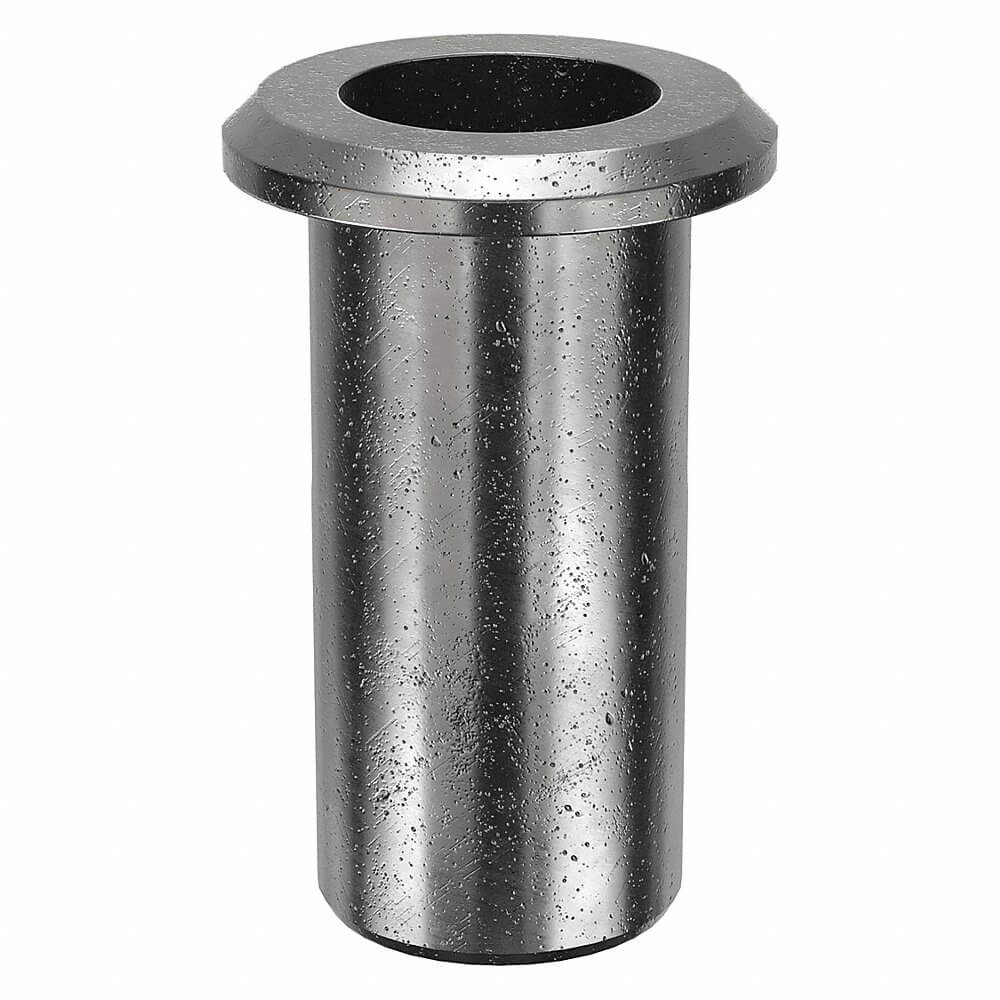

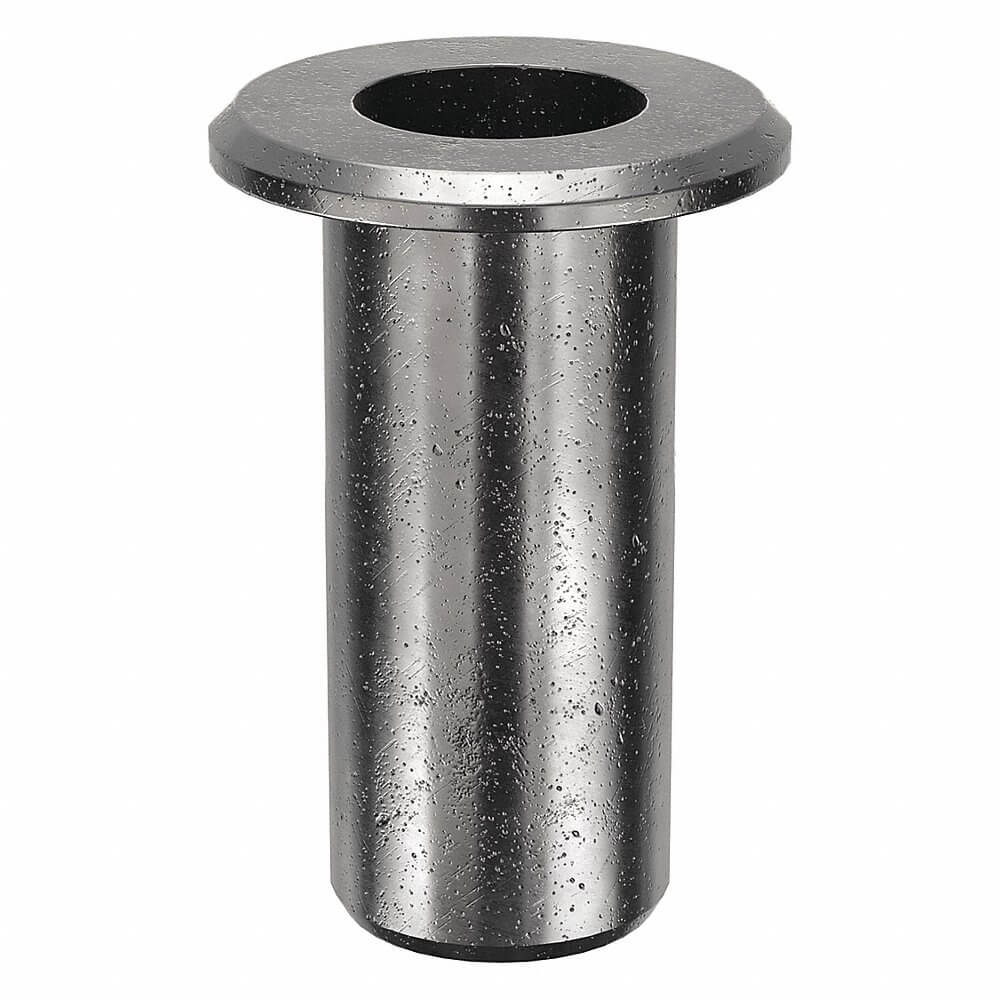

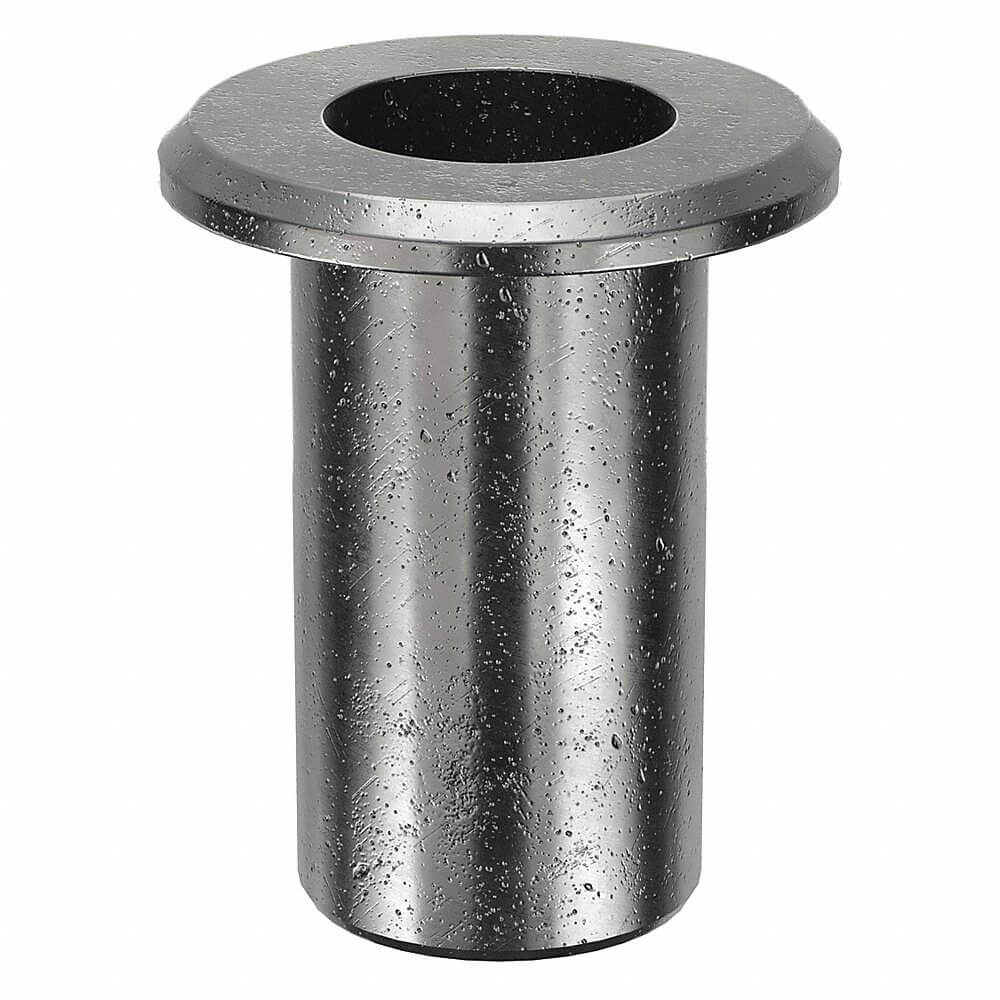

| Style | Model | Thread Size | Rivet Type | Flange Dia. | Finish | Drill Size | Head Height | Grade | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U69136.019.0080 | #10-24 | Flanged | 13/32" | Plain | 1/4" | 0.038" | - | 100 | $22.81 | |
| B | U69136.037.0200 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 20 | $17.09 | |
| C | U69136.031.0125 | 5/16"-18 | Flanged | 0.665" | Plain | Z | 1/16" | - | 25 | $16.63 | |
| D | U69136.037.0115 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 25 | $20.49 | |
| E | U69136.025.0138 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.06" | - | 40 | $21.69 | |
| F | U69136.025.0200 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.058" | - | 40 | $24.86 | |
| G | U69136.016.0120 | #8-32 | Flanged | 0.357" | Plain | #2 | 0.032" | - | 50 | $37.86 |
