| Item | Machine Screw |
|---|---|
| Class | Class 4.8 |
| Dimensional Standards | Jis B 1111 |
| Drive | Phillips |
| Drive Size | #2 |
| Drive Type | Phillips |
| Fastener Length | 10 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Angle | 90° |
| Head Dia. | 10 mm |
| Head Height | 2.8 mm |
| Head Type | Flat |
| Includes Nut | No |
| Includes Washer | No |
| Length | 7.2 mm |
|---|---|
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Material Grade/class | 4.8 |
| Overall Length | 10 mm |
| Rockwell Hardness | B71 to B99 |
| Screw Size | M5 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Length | 7.2 mm |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 2.54 |
| HS Code | 7318154000 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.045 |
| Style | Model | Thread Size | Head Height | Head Dia. | Tensile Strength | Class | Drive Size | Hardness | Head Angle | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

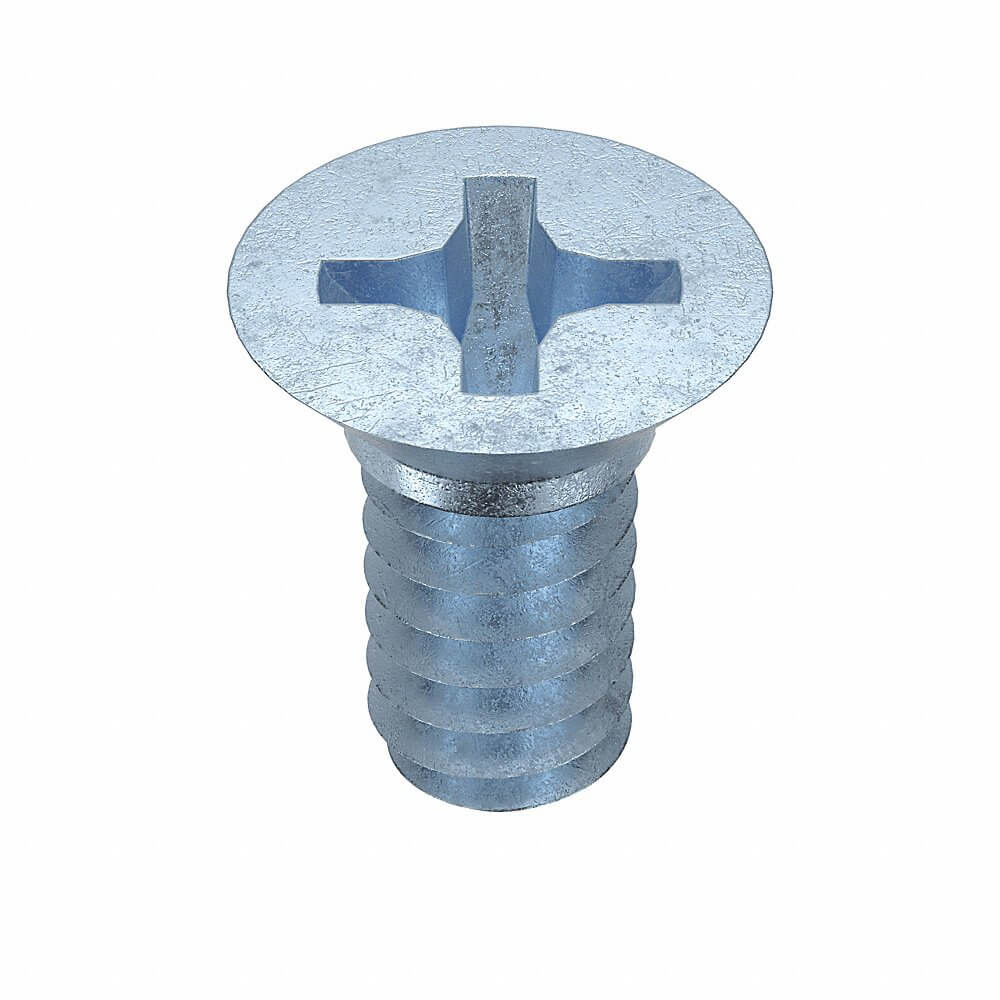

| A | U24670.011.0025 | #4-40 | 0.067" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B70 | 82° | 100 | $2.01 | |

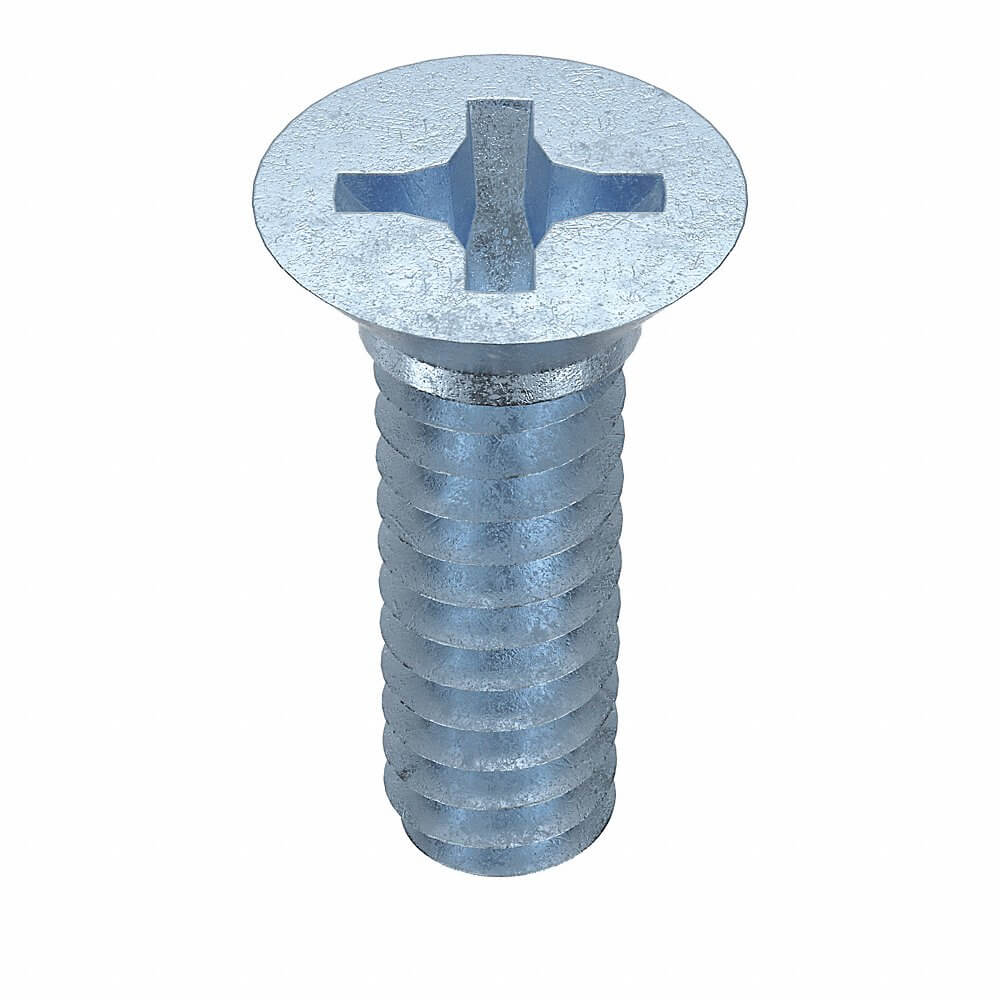

| B | U24670.011.0037 | #4-40 | 0.212" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 82° | 100 | $5.40 | |

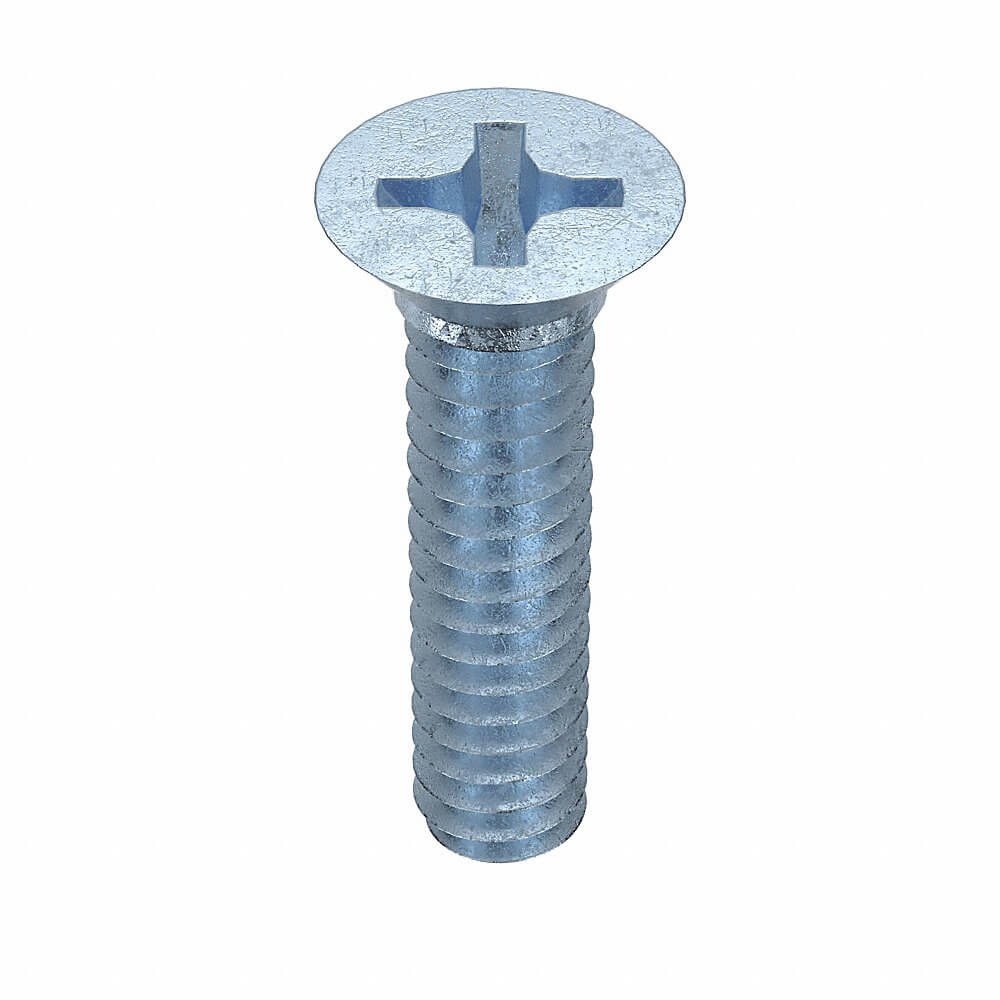

| C | U24670.011.0050 | #4-40 | 0.212" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 82° | 100 | $6.46 | |

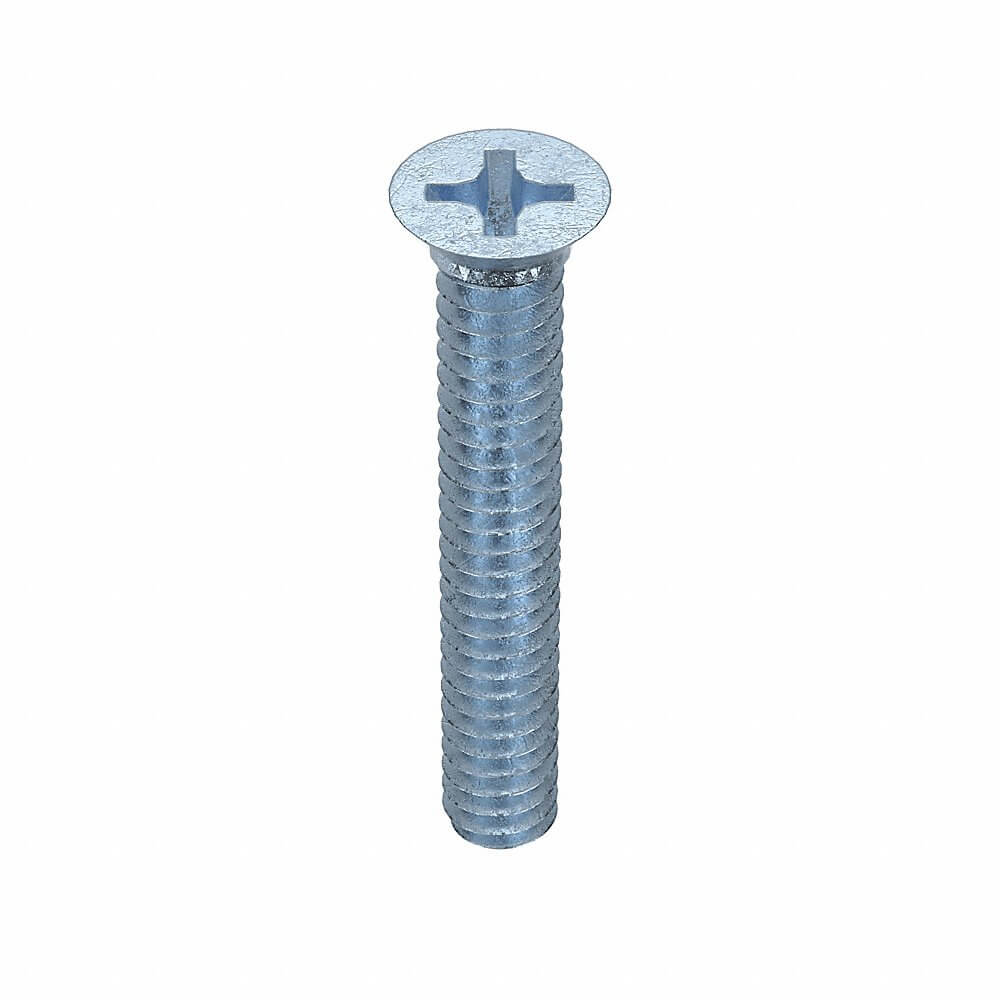

| D | U24670.011.0075 | #4-40 | 0.067" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 82° | 100 | $3.56 | |
| E | U24670.011.0100 | #4-40 | 0.067" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 82° | 100 | $4.06 | |

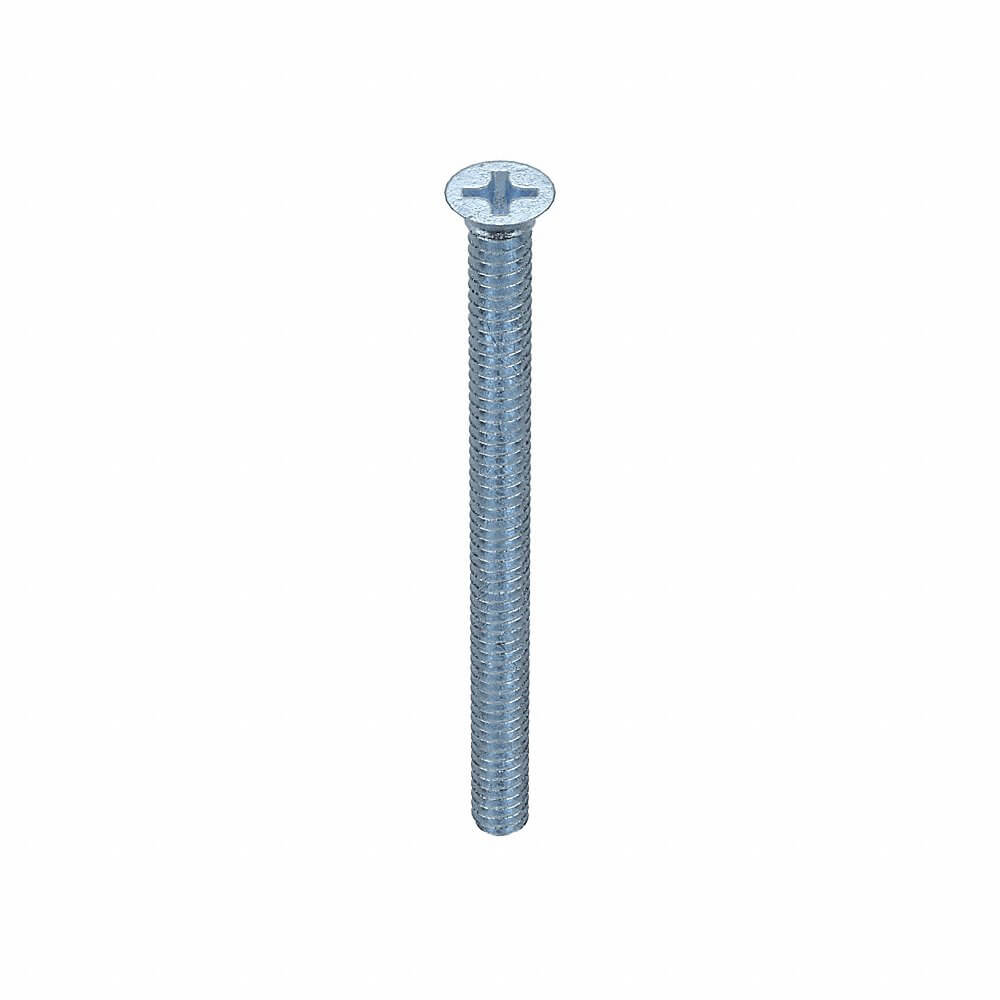

| F | U24670.011.0150 | #4-40 | 0.067" | 0.212" | 60000 psi | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 82° | 100 | $10.14 | |
| G | U24670.013.0025 | #6-32 | 0.083" | 0.262" | 60000 psi | Class 3A, Class 2A | #2 | Rockwell B69-B100 | 82° | 100 | $3.21 |
