| Item | Metric Socket Head Cap Screw |
|---|---|
| Combined Material & Grade | Class 10.9 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | DIN 7991 |
| Display Qty | 50 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 26.88 mm |
| Head Height | 7.4 mm |
| Head Type | Flat |
| Length | 25 mm |
| Material | Steel |
|---|---|
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Min. Tensile Strength | 1000 N/sq. mm |
| Minimum Thread Length | 25 mm |
| Screw Length | 25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Size | M12 x 1.75 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 21.01 |
| Width (cm) | 16.69 |
| HS Code | 7318158045 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 1.3392 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

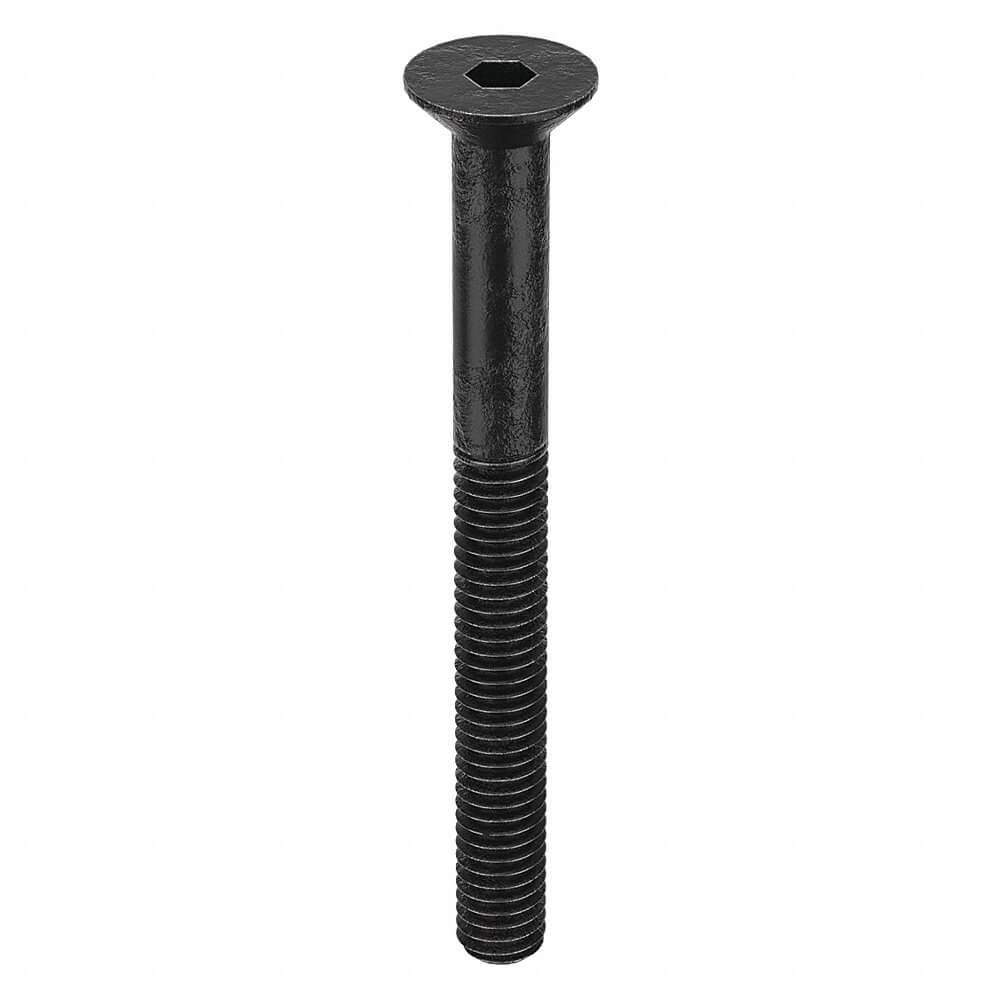

| A | M07400.040.0040 | M4 x 0.7 | Partially Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 25 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $23.29 | |

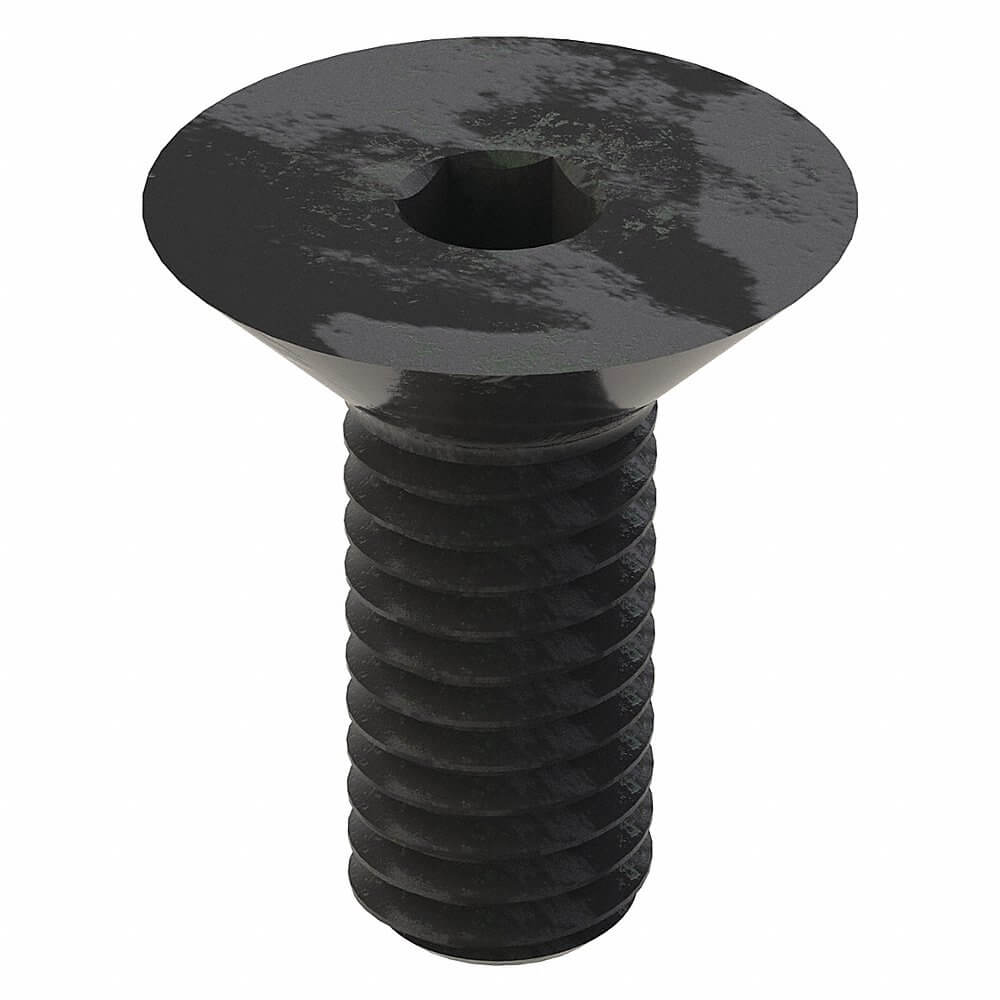

| B | M07400.030.0006 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 6 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $5.91 | |

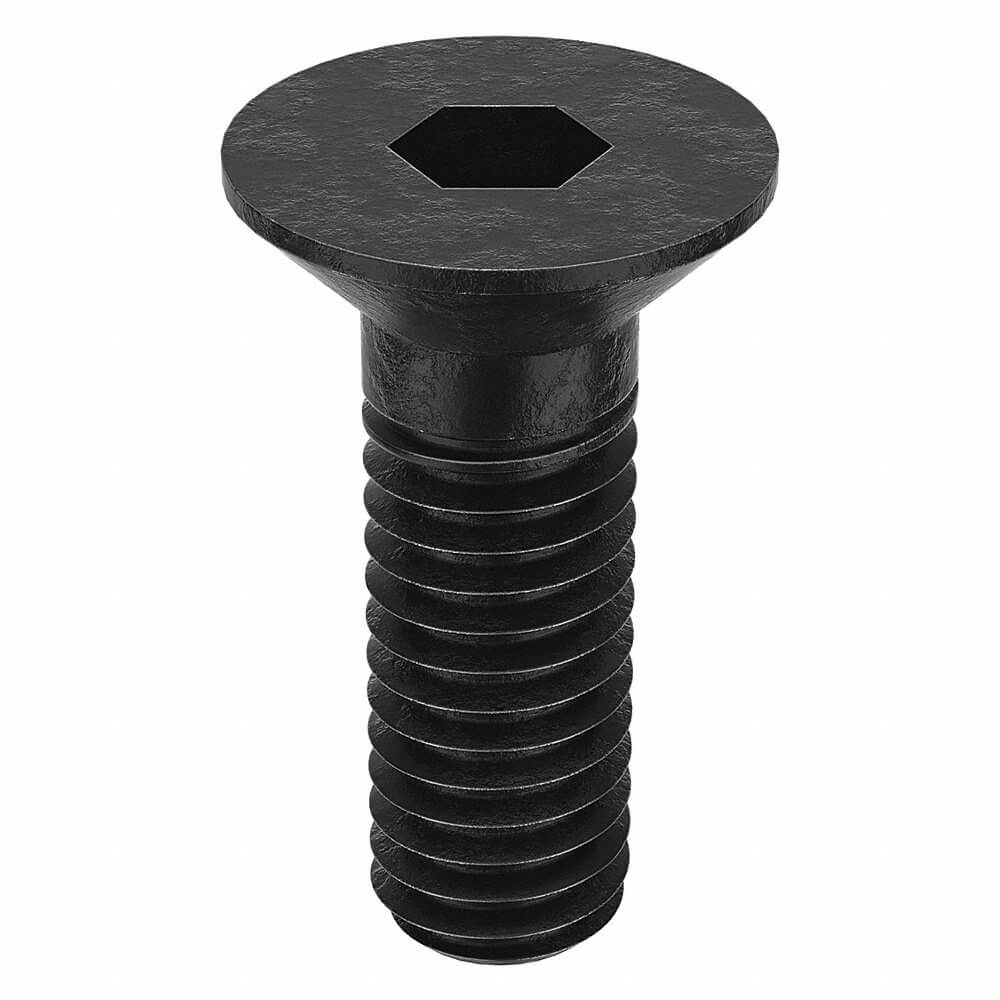

| C | M07400.030.0008 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 8 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $6.27 | |
| D | M07400.030.0010 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 10 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $7.97 | |
| E | M07400.030.0016 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 16 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $8.36 | |

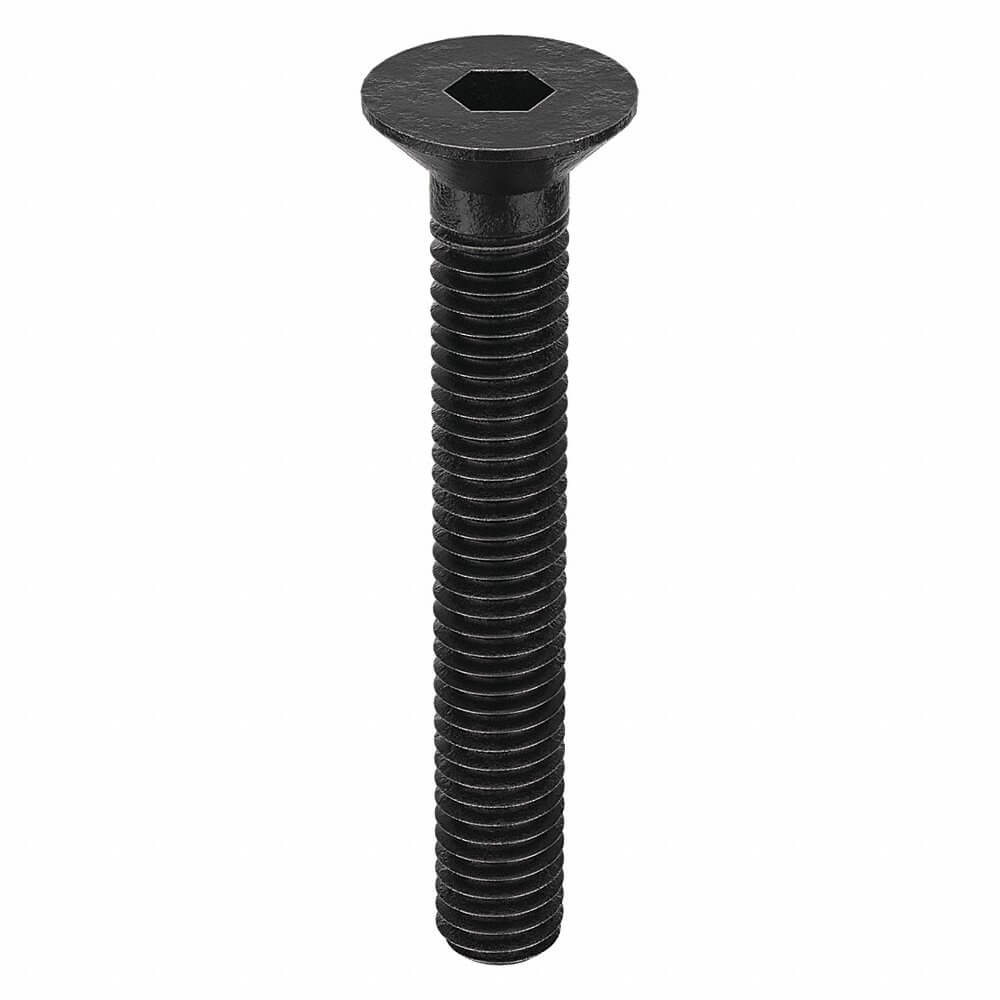

| F | M07400.030.0020 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 20 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $9.44 | |

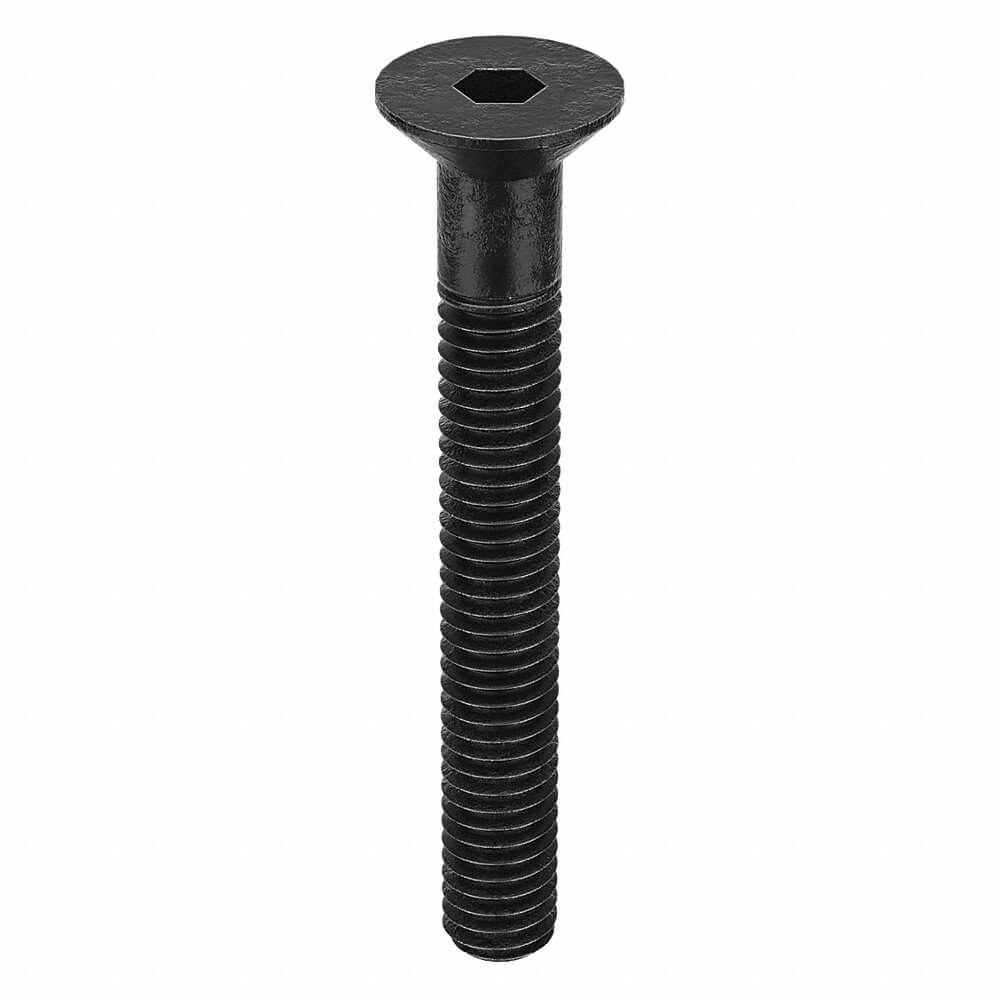

| G | M07400.040.0030 | M4 x 0.7 | Partially Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 25 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | $15.19 |
