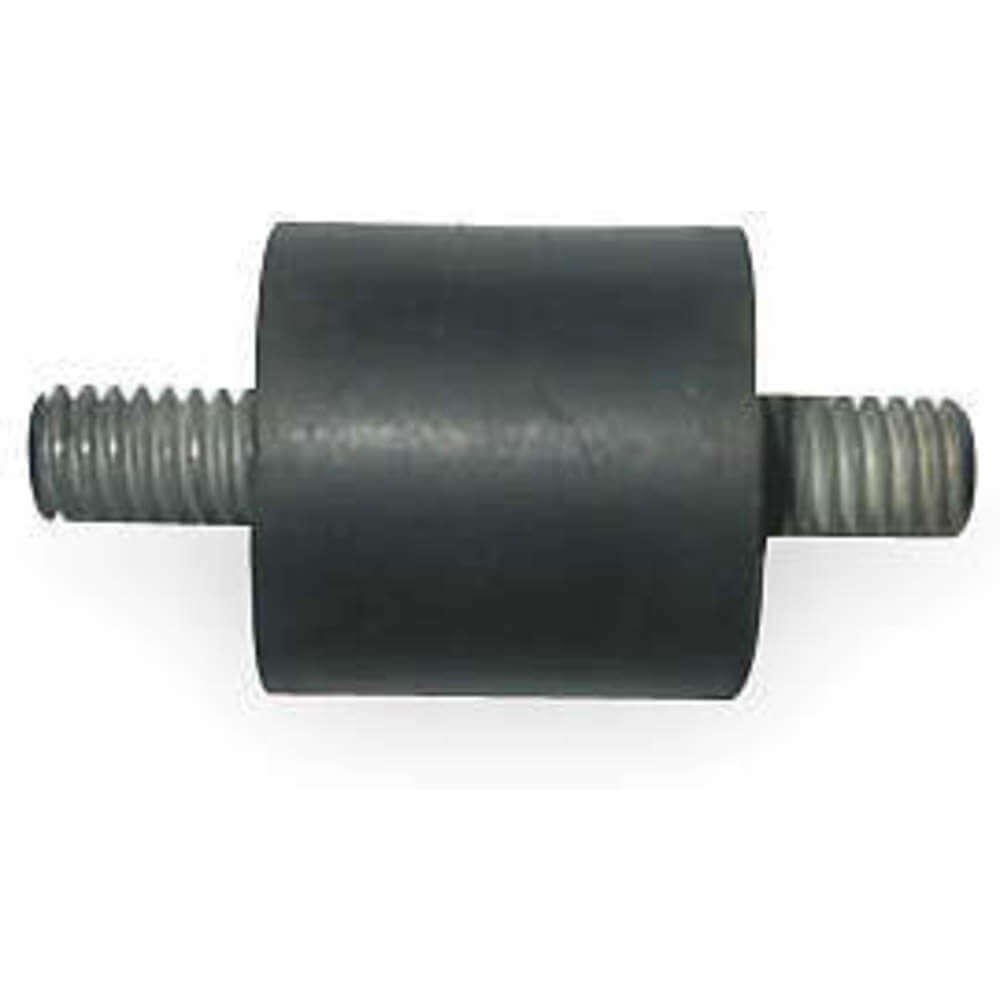

| Item | Cyl. Vibration Isolator |
|---|---|
| Cylinder Dia. | 3/4" |
| Height | 3/4" |
| Material | Rubber |
| Max Load Downward Compression | 40 lbf. |
| Max Load Sideways Shear | 6 lbf. |
| Max. Load Downward Compression | 40 |
| Max. Load Sideways Shear | 6 lbs. |
| Mounting | Compression |
| Resistance | Abrasion |
|---|---|
| Resistant To | Abrasion |
| Shape | Cylindrical |
| Stud Length | 0.63" |
| Thread Length | 5/8" |
| Thread Material | Clear Zinc Plated, Grade 5 |
| Thread Size | M6 x 1 |
| Type | Male Threads Both Ends |
| Vibration Isolator Style | Male x Male |
| Height (cm) | 2.29 |
|---|---|
| Length (cm) | 4.83 |
| Width (cm) | 2.29 |
| HS Code | 4016993500 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.0225 |
| Style | Model | Max. Load Downward Compression | Thread Size | Max. Load Sideways Shear | Stud Length | Height | Cylinder Dia. | Thread Length | Shape | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2NNZ5 | 7 | #8-32 | 1 lbs. | 1/2" | 1/2" | 3/8" | 1/2" | Cylindrical | $2.64 | |
| A | 2NNZ6 | 20 | #8-32 | 3 lbs. | 1/2" | - | 5/8" | 1/2" | Cylindrical | $3.29 | |
| A | 2NNZ7 | 40 | 1/4"-20 | 6 lbs. | 0.63" | 3/4" | 3/4" | 5/8" | Cylindrical | $3.55 | |
| A | 2NNZ9 | 45 | 5/16"-18 | 8 lbs. | 0.63" | 1" | 1" | - | Cylindrical | $3.96 | |
| A | 2NPA1 | 50 | 1/4"-20 | 9 lbs. | - | 3/4" | 1" | 1/2" | - | $2.90 | |
| A | 2NPA2 | 50 | M6 x 1 | 9 lbs. | 1/2" | 3/4" | 1" | 1/2" | Cylindrical | $3.56 | |
| A | 2NPA3 | 50 | 5/16"-18 | 9 lbs. | 0.63" | 3/4" | 1" | - | Cylindrical | $3.74 |
