| Item | Flat Indicator Light |
|---|---|
| Amps Drawn | 4.4 mA |
| Average Life | 100000 hrs. |
| Body Material | ABS, Brass Plated Chrome |
| Color | Green |
| Current Drawn | 4 mA |
| Electrical Connection | 0.11 Male Quick Disconnect |
| Finish | Brass Plated |
| Head Color | Green |
| Head Style | Flush |
| Includes Lamp Module - New | Yes |
| Includes Lens | Lens Included |
| Ip Rating | IP40 |
| Lamp Bulb Color | Green |
| Lamp Bulb Type | LED |
| Lamp Type | LED |
|---|---|
| Manufacturer Warranty Length | 3 yrs. |
| Nema Enclosure Rating | No Enclosure |
| Overall Depth | 1.5" |
| Overall Height | 0.53" |
| Overall Width | 0.53" |
| Panel Mounting Hole Diameter | 12 mm |
| Panel Thickness | Up To 0.16" |
| Series | H12 Series |
| Shape | Round |
| Stem Thread Size | M12 |
| Voltage | 120V AC |
| Voltage Rating - Maximum | 110V AC |
| Standards | CRUUS, ROHS |
| Height (cm) | 1.78 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 2.03 |
| HS Code | 8531200040 |
|---|---|
| Country Of Origin | KR |
| Weight (kg) | 0.0045 |
| Style | Model | Color | Mounting Dia. | Lamp Type | Voltage | Electrical Connection | Ip Rating | Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 24M070 | Red | 8 mm | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $12.17 | |

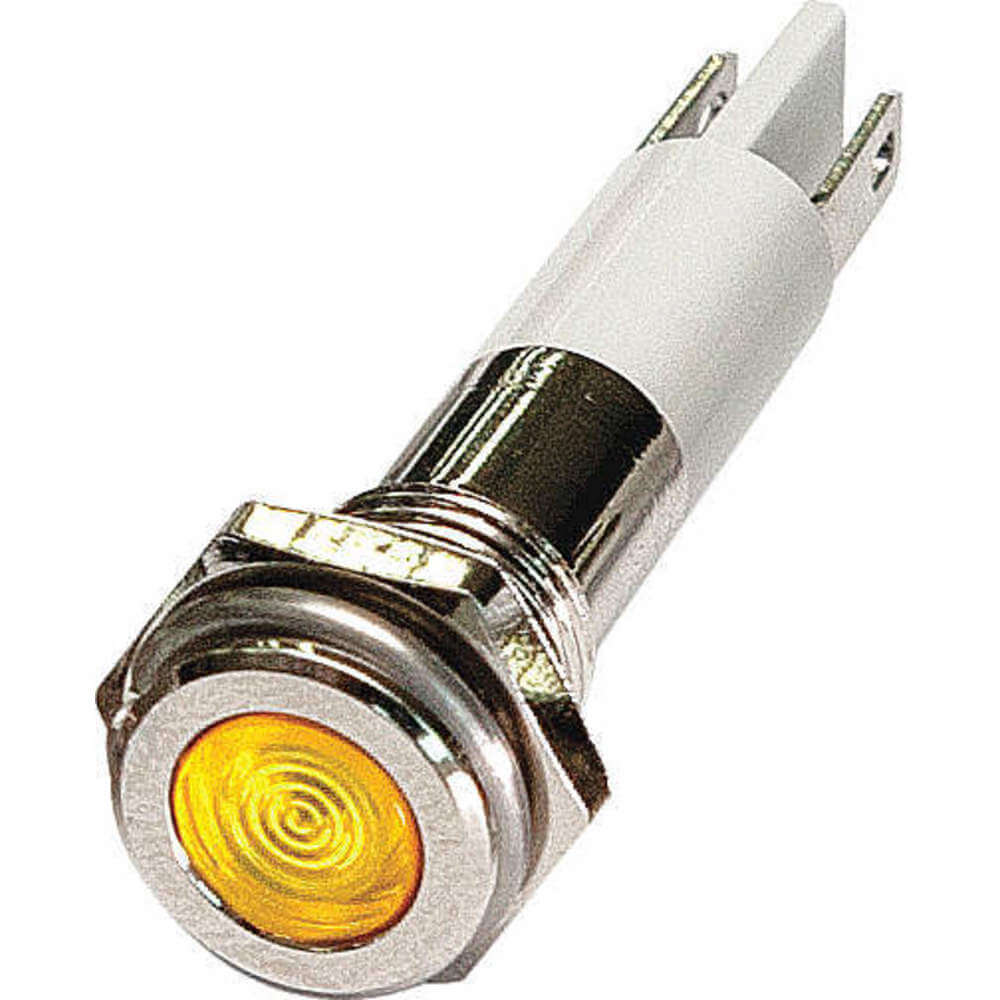

| B | 24M071 | Yellow | 8 mm | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $11.59 | |

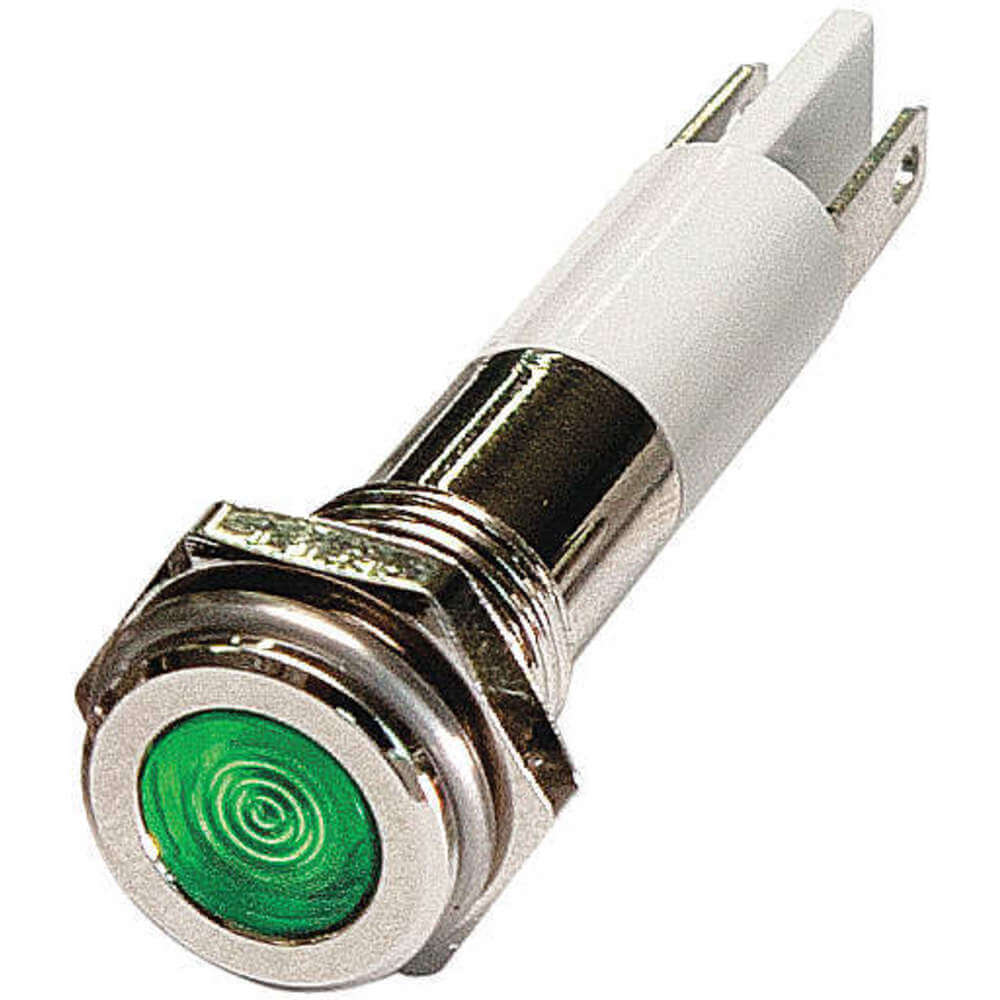

| C | 24M072 | Green | 8 mm | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $12.99 | |
| D | 24M073 | Blue | - | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $11.83 | |
| E | 24M074 | White | - | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $12.99 | |

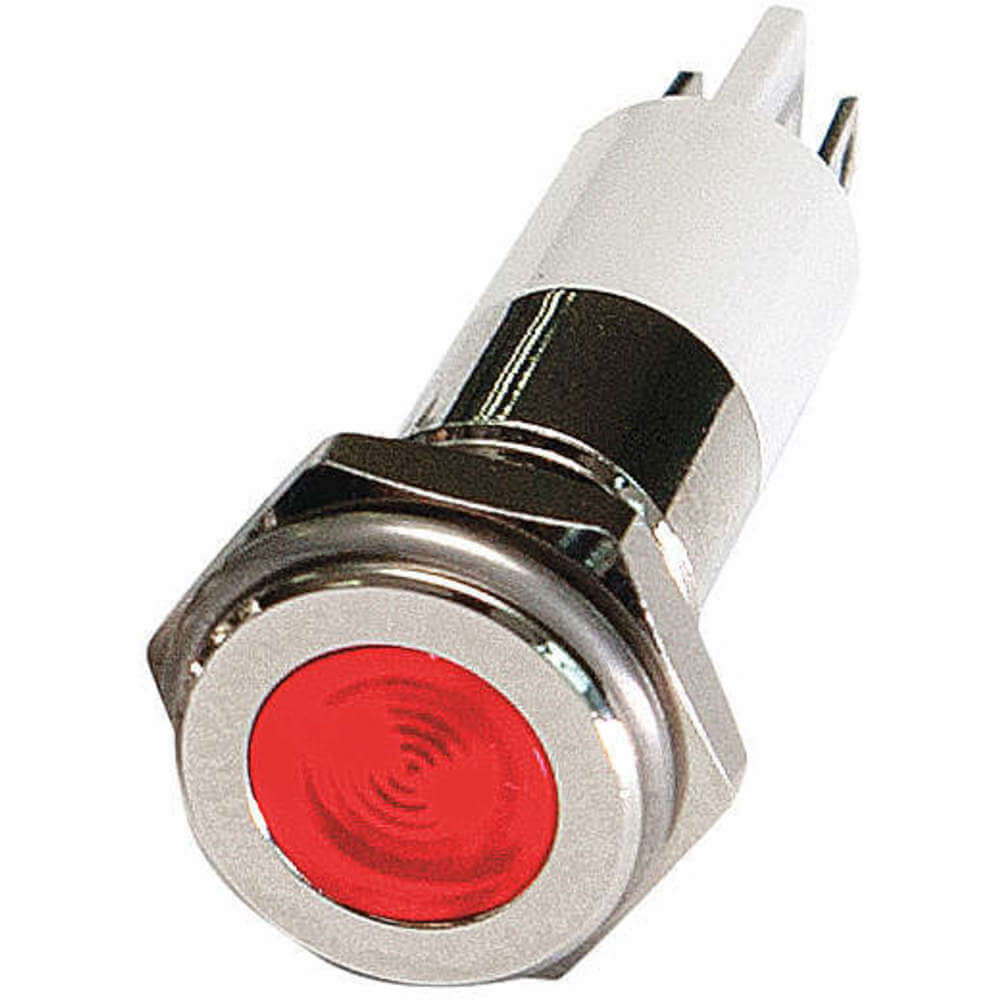

| F | 24M104 | Red | - | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $12.79 | |
| G | 24M105 | Yellow | - | LED | 120V AC | 0.11 Male Quick Disconnect | IP40 | Brass Plated | $12.87 |
