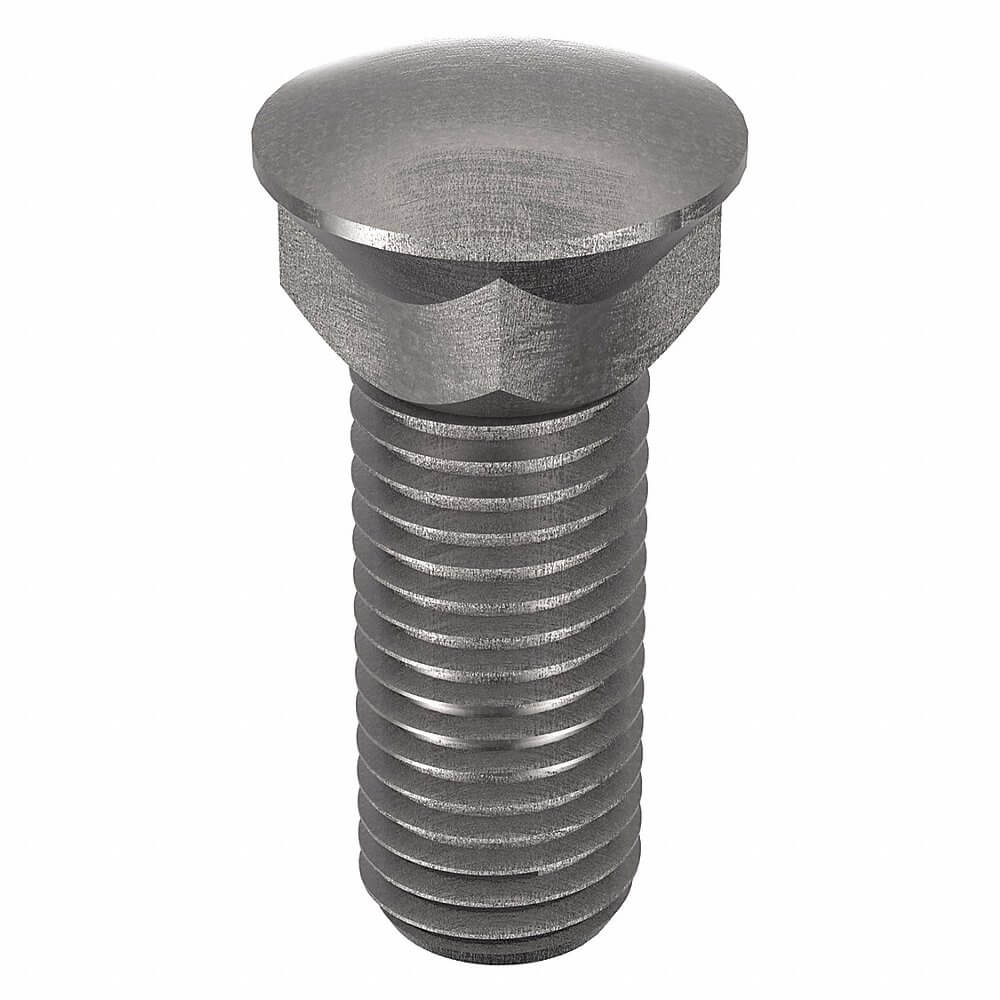

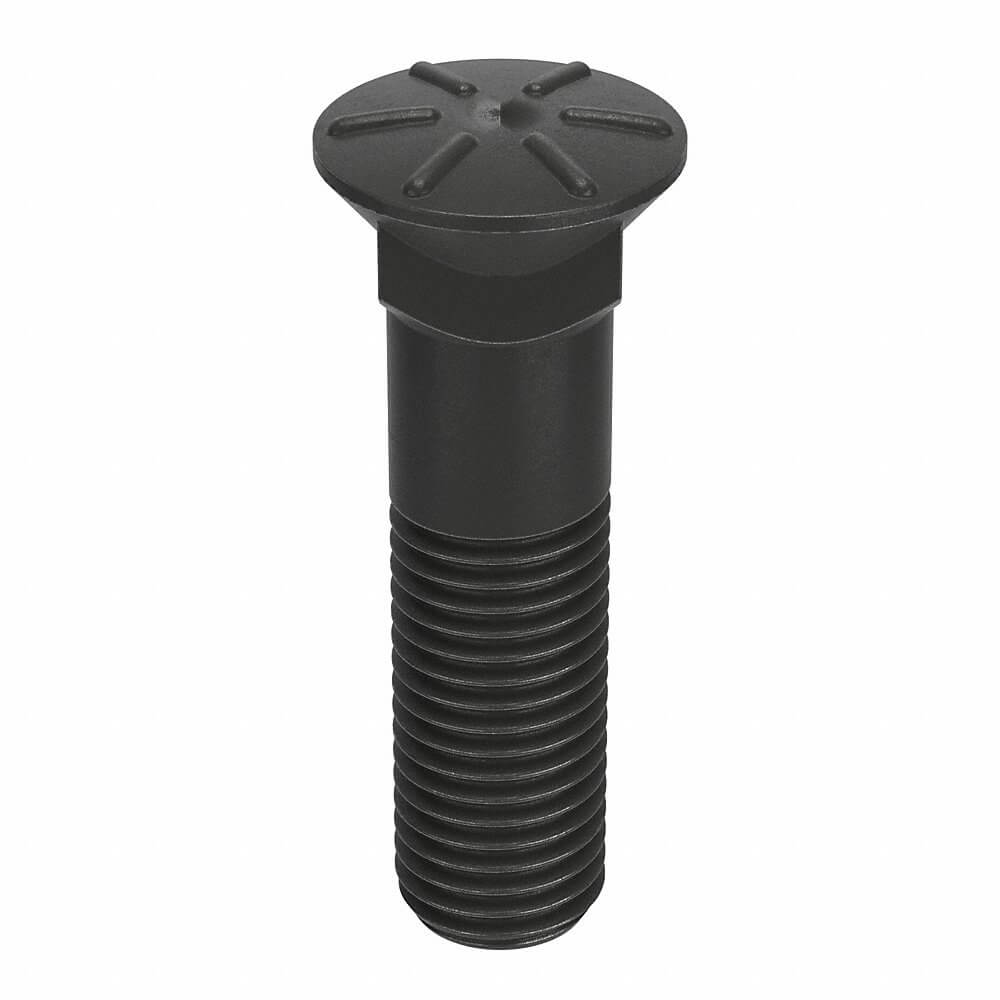

| Item | Plow Bolt |
|---|---|
| Embedded Head & Neck Height | 37/64" |
| Embedded Length | 2 1/2" |
| Fastener Length | 2 1/2" |
| Finish | Black Oxide |
| Grade | Grade 8 |
| Hardness | Rockwell C33 |
| Head Angle | 80° |
| Head Dia. | 3/4" |
| Head Height | 37/64" |
| Head Style | Countersunk |
| Head Type | Dome |
| Key Height | 37/64" |
| Length | 2 1/2" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade 8 |
|---|---|
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1 3/4" |
| Neck Type | Square |
| Neck Width | 49/64" |
| Overall Length | 2 1/2" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Pitch | 3/4"-10 |
| Thread Direction | Right Hand |
| Thread Size | 3/4"-10 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | #3 Dome |
| Height (cm) | 6.86 |
|---|---|
| Length (cm) | 12.19 |
| Width (cm) | 9.14 |
| HS Code | 7318152055 |
|---|---|
| Country Of Origin | KR |
| Weight (kg) | 1.485 |
| Style | Model | Thread Style | Min. Thread Length | Head Dia. | Head Height | Head Angle | Head Style | Neck Width | Tensile Strength | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

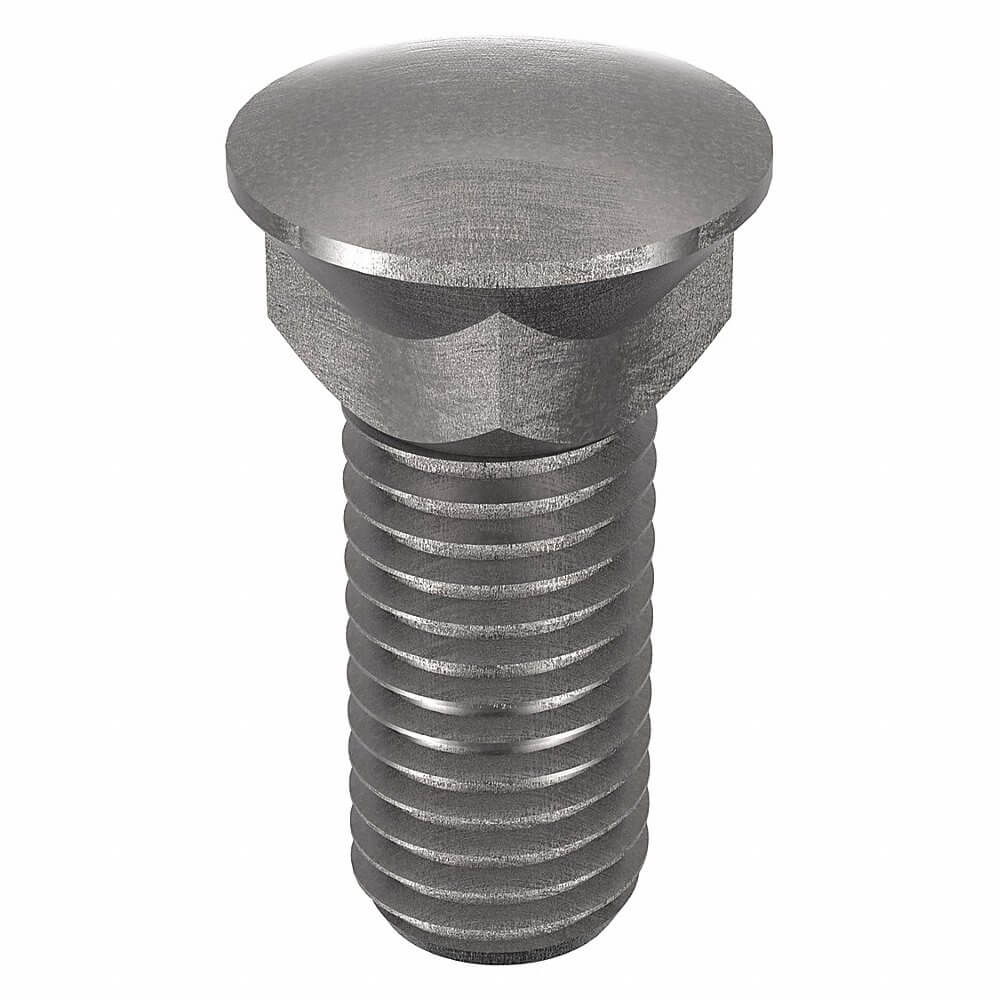

| A | 1CFW7 | Fully Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 10 | $26.66 | |
| A | 1CFW8 | Fully Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 10 | $33.31 | |
| B | 1CFW9 | Fully Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 10 | $37.27 | |
| C | 1CFX2 | Fully Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 10 | $33.69 | |
| D | 1CFX3 | Partially Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 5 | $17.83 | |

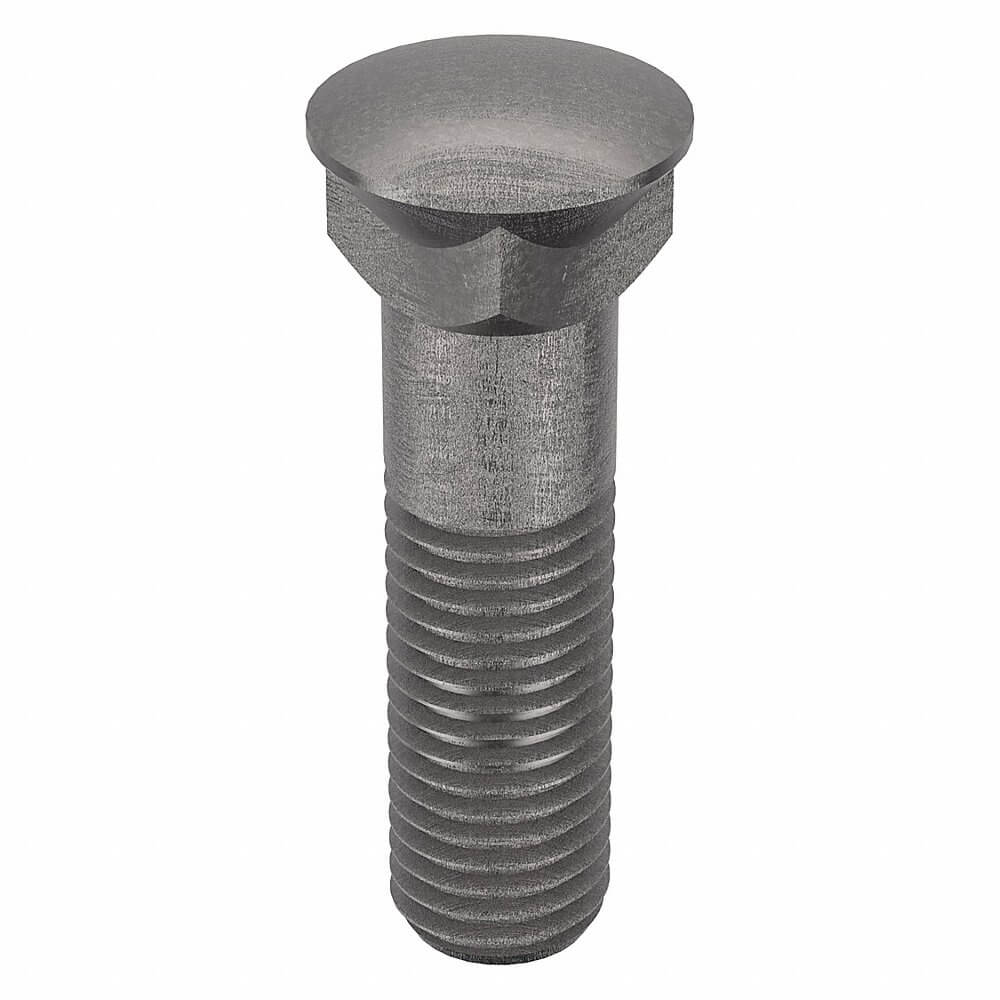

| D | 1CFX4 | Partially Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 5 | $19.74 | |
| E | 1CFX5 | Partially Threaded | 1 3/4" | 3/4" | 37/64" | 80° | Countersunk | 49/64" | 150000 psi | 5 | $21.04 |
