| Item | Mounting Body |
|---|---|
| Box Height | 10 1/2" |
| Box Shape | Rectangular |
| Box Type | Tandem |
| Bracket Type | Lugs |
| Ceiling Fan Rated | Not Rated |
| Clamp Type | Clamp Not Included |
| Color | Gray |
| Depth | 3.06" |
| For Construction Type | New Construction, Remodel |
| Hazardous Location Specification | Class I, Div 1, Group C, D, Class Ii, Div 1 And 2, Group E, F, G, Class Iii, Div 1 And 2, Class I, Div 2, Group B, C, D |
| Height | 11.31" |
| Hub Size | 3/4" |
| Hub Type | Feed Through |
| Includes | Internal Ground Screw |
| Material | Iron |
|---|---|
| Nema Enclosure Rating | NEMA 3, NEMA 7CD, NEMA 9EFG |
| Number Of 1 In Side Knockouts | 0 |
| Number Of 1/2 In Back Knockouts | 0 |
| Number Of 1/2 In Side Knockouts | 0 |
| Number Of 3/4 In Back Knockouts | 0 |
| Number Of 3/4 In Side Knockouts | 0 |
| Number Of Gangs | 2 |
| Overall Depth | 3 1/16" |
| Overall Height | 12 1/16" |
| Overall Width | 3 3/4" |
| Type | Tandem |
| Width | 3 18/25" |
| standard | C22.2 NO. 14, CSA, CULUS LISTED E10449, CULUS LISTED E81751, UL 1203, UL 508, UL 698 |
| Height (cm) | 8.41 |
|---|---|
| Length (cm) | 10.95 |
| Width (cm) | 30.71 |
| HS Code | 7325100080 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.045 |
| Style | Model | Material | Hub Size | Number Of Gangs | Height | Depth | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | EDS177 | Iron | 1/2" | 2 | 11.31" | 3.06" | Tandem | $710.56 | |

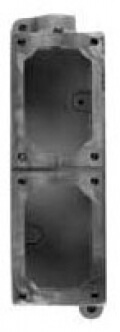

| B | EDS177-SA | Aluminum | 1/2" | 2 | 11.31" | 3.06" | Tandem | $756.45 | |
| A | EDS277 | Iron | 3/4" | 2 | 11.31" | 3.06" | Tandem | $709.02 | |
| B | EDS277-SA | Aluminum | 3/4" | 2 | 11.31" | 3.06" | Tandem | $755.41 | |
| - | EDS377 | Iron | 1" | 2 | 11.31" | 3.06" | Tandem | $757.93 | |

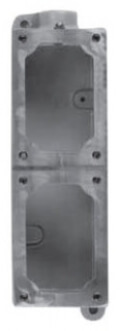

| A | EDS377-SA | Aluminum | 1" | 2 | 11.31" | 3.06" | Tandem | $756.45 | |
| B | EDSC177 | Iron | 1/2" | 2 | 11.31" | 3.06" | Tandem | $702.74 |
