| Item | Coupling |
|---|---|
| Application | Natural Gas, Oil |
| Basic Fitting Shape | Coupling |
| Body Material | Forged Steel |
| Class | Class 3000 |
| Color | Black |
| Connection Type | Socket Weld |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 4" |
| Fitting Side A Type | Socket |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 4" |
| Fitting Side B Type | Socket |
| For Pipe Schedule | 80 |
|---|---|
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 3000 psi |
| Number Of Holes | 2 |
| Outside Dia. | 5.312" |
| Pipe Fitting Material | Forged Steel |
| Pipe Size | 4" |
| Saturated Steam Pressure | 300 psi @ 550 Degrees F |
| Specific Fitting Shape | Coupling |
| Temp. Range | -20°F to +550°F |
| Standards | ANSI B1.20.1, ASME B16.11, ASTM A105, ASTM A182, ASTM A350 |
| Height (cm) | 13.74 |
|---|---|
| Length (cm) | 13.49 |
| Width (cm) | 13.49 |
| HS Code | 7307110030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 3.375 |

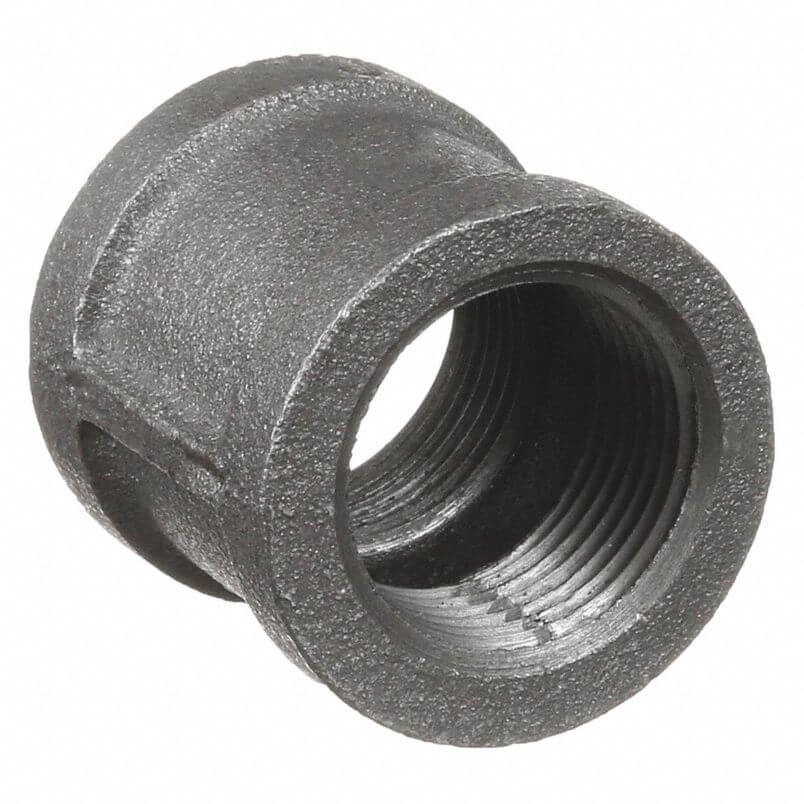

| Style | Model | Pipe Size | Class | Connection Type | Body Material | Max. Pressure | Color | Temp. Range | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0310538004 | 1/4" | Class 300 | FNPT | Malleable Iron | 2000 psi @ 150°F | Black | -20°F to +150°F | - | $27.09 | |
| A | 0310538202 | 3/8" | Class 300 | FNPT | Malleable Iron | 2000 psi @ 150°F | Black | -20°F to +150°F | - | $27.09 | |
| A | 0310538400 | 1/2" | Class 300 | FNPT | Malleable Iron | 2000 psi @ 150°F | Black | -20°F to +150°F | - | $30.17 | |
| A | 0310538608 | 3/4" | Class 300 | FNPT | Malleable Iron | 2000 psi @ 150°F | Black | -20°F to +150°F | - | $34.66 | |
| A | 0310538806 | 1" | Class 300 | FNPT | Malleable Iron | 2000 psi @ 150°F | Black | -20°F to +150°F | - | $39.57 | |
| A | 0310539002 | 1 1/4" | Class 300 | FNPT | Malleable Iron | 1500 psi @ 150°F | Black | -20°F to +150°F | - | $46.91 | |
| A | 0310539200 | 1 1/2" | Class 300 | FNPT | Malleable Iron | 1500 psi @ 150°F | Black | -20°F to +150°F | - | $71.41 |
