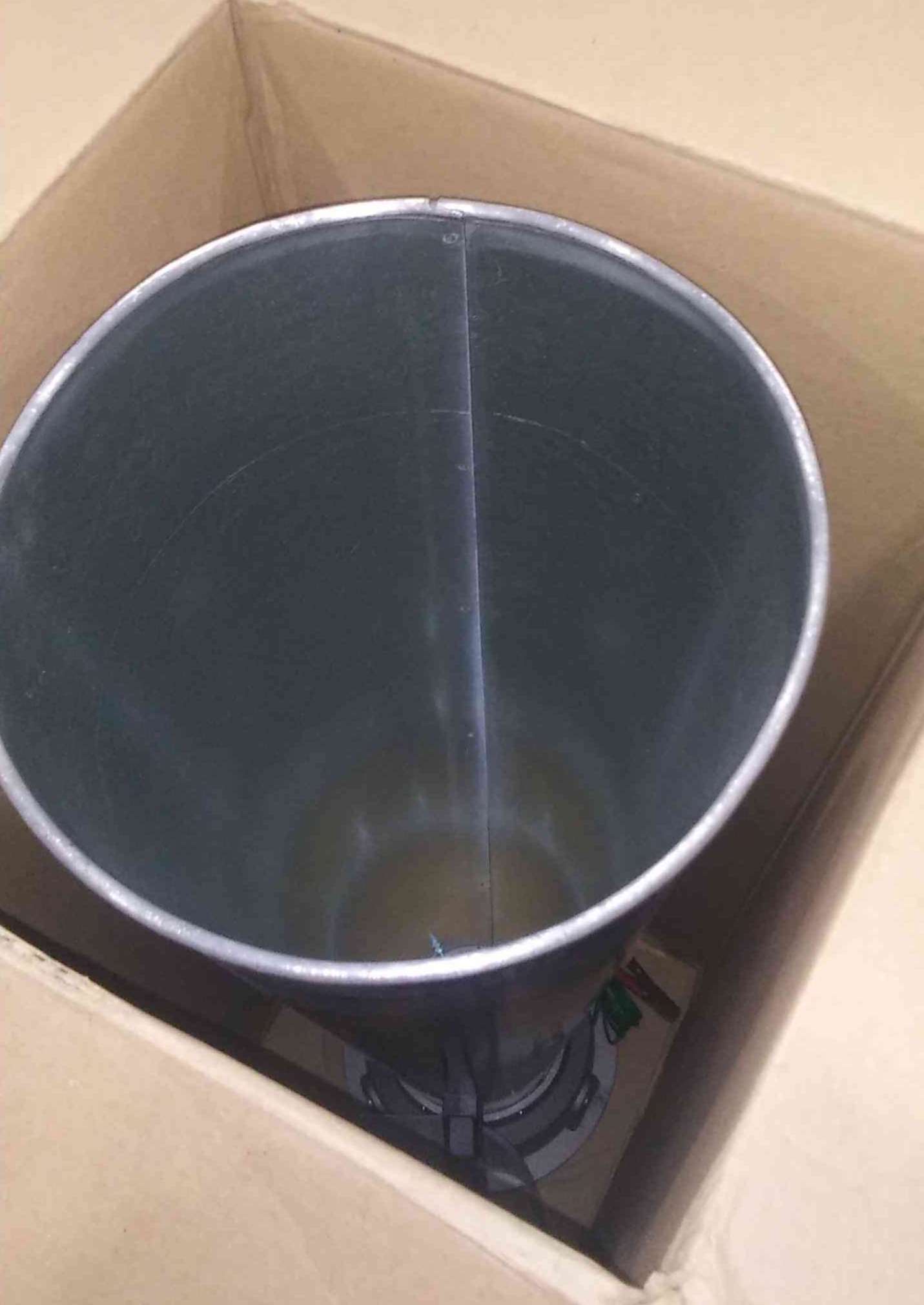

| Item | Venturi Style Pneumatic Air Blower |
|---|---|
| Air Consumed @ 100 Psig | 100 CFM |
| Air Consumed @ 60 Psig | 60 CFM |
| Air Consumed @ 80 Psig | 80 CFM |
| Air Flow Rate @ 100 Psig | 3700 CFM |
| Air Flow Rate @ 60 Psig | 2560 CFM |
| Air Flow Rate @ 80 Psig | 3020 CFM |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Pressure | 60 psi, 80 psi, 100 psi |
| Base Dia. | 11 1/4" |
| Base Material | Cast Aluminum |
| Bolt Circle Dia. | 10 1/2" |
| Decibels @ 5 Ft. @ 100 Psig | 78 dBA |
| Decibels @ 5 Ft. @ 60 Psig | 73 dBA |
| Decibels @ 5 Ft. @ 80 Psig | 75 dBA |
| Dia. Top Of Horn | 12 1/2" |
| Duct Construction | Single Ply |
| Duct Design | Retractable, Non-Collapsible |
| Duct Finish | PVC Coated |
| Duct Material | Vinyl, Polyester |
| Free Air Induction @ 100 Psig | 37 |
|---|---|
| Free Air Induction @ 60 Psig | 42.67 |
| Free Air Induction @ 80 Psig | 37.75 |
| Handle Material | Plastic |
| Horn Finish | Galvanized |
| Horn Material | Steel |
| Includes | Base, Plastic Handle, Static Ground Connection |
| Inlet Size | 1" |
| Inlet Type | NPT |
| Max. Inlet Pressure | 140 psi |
| Max. Temp. | 180°F |
| Number Of Mounting Slot | 3 |
| Overall Length | 44 1/4" |
| Slot Dia. | 2/5" |
| Static Ground Connection Size | 6 ft. |
| Static Pressure @ 100 Psig | 6.5 in. wc |
| Static Pressure @ 60 Psig | 4.2 in. wc |
| Static Pressure @ 80 Psig | 5.6 in. wc |
| Total Air Flow @ 40 Psig | 2100 CFM |
| Total Air Flow @ 60 Psig | 2560 CFM |
| Height (cm) | 116.84 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 40.64 |
| HS Code | 8414901040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 12.15 |
| Style | Model | Air Pressure | Air Flow Rate @ 60 Psig | Air Flow Rate @ 80 Psig | Air Flow Rate @ 100 Psig | Air Consumed @ 60 Psig | Air Consumed @ 80 Psig | Air Consumed @ 100 Psig | Horn Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 9518-10 | 60 psi, 80 psi, 100 psi | 6180 CFM | 7305 CFM | 8220 CFM | 190 CFM | 250 CFM | 380 CFM | Steel | $1,402.75 | |
| A | 9518-03S | 60 psi, 80 psi, 100 psi | 865 CFM | 1080 CFM | 1250 CFM | 30 CFM | 40 CFM | 50 CFM | Steel | $400.30 | |
| A | 9518-03 | 60 psi, 80 psi, 100 psi | 1135 CFM | 1310 CFM | 1465 CFM | 30 CFM | 40 CFM | 50 CFM | Steel | $476.11 | |
| A | 9518-08 | 60 psi, 80 psi, 100 psi | 4215 CFM | 4810 CFM | 5435 CFM | 110 CFM | 140 CFM | 180 CFM | Steel | $1,161.95 |
