| Item | Swivel Plate Caster |
|---|---|
| Application | Food Service Racks And Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Thermoplastic |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Thermoplastic Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Polyolefin |
| Durometer | 95 Shore A |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Dust Cover |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 300 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 7/16" |
| Mounting Height | 6 3/16" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 3 3/4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 3 3/4" X 4 1/2" ( B ) |
|---|---|
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -45°F to +180°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 6.187" |
| Plate Size | 3 5/8" x 4 1/2" |
| Plate Thickness | 0.149" |
| Plate Type | B |
| Raceway Type | Double Ball |
| Replacement Wheel | 26Y373 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Diameter | 5" |
| Wheel Material | Thermoplastic Rubber |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 75 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Thermoplastic Rubber |
| Standards | ANSI/ICWM, NSF |
| Height (cm) | 15.75 |
|---|---|
| Length (cm) | 15.49 |
| Width (cm) | 9.65 |
| HS Code | 8716900000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 1.17 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Brake Type | Wheel/tread Material | Mounting Height | Mounting Plate Size | Mounting Plate Bolt Hole Pattern | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

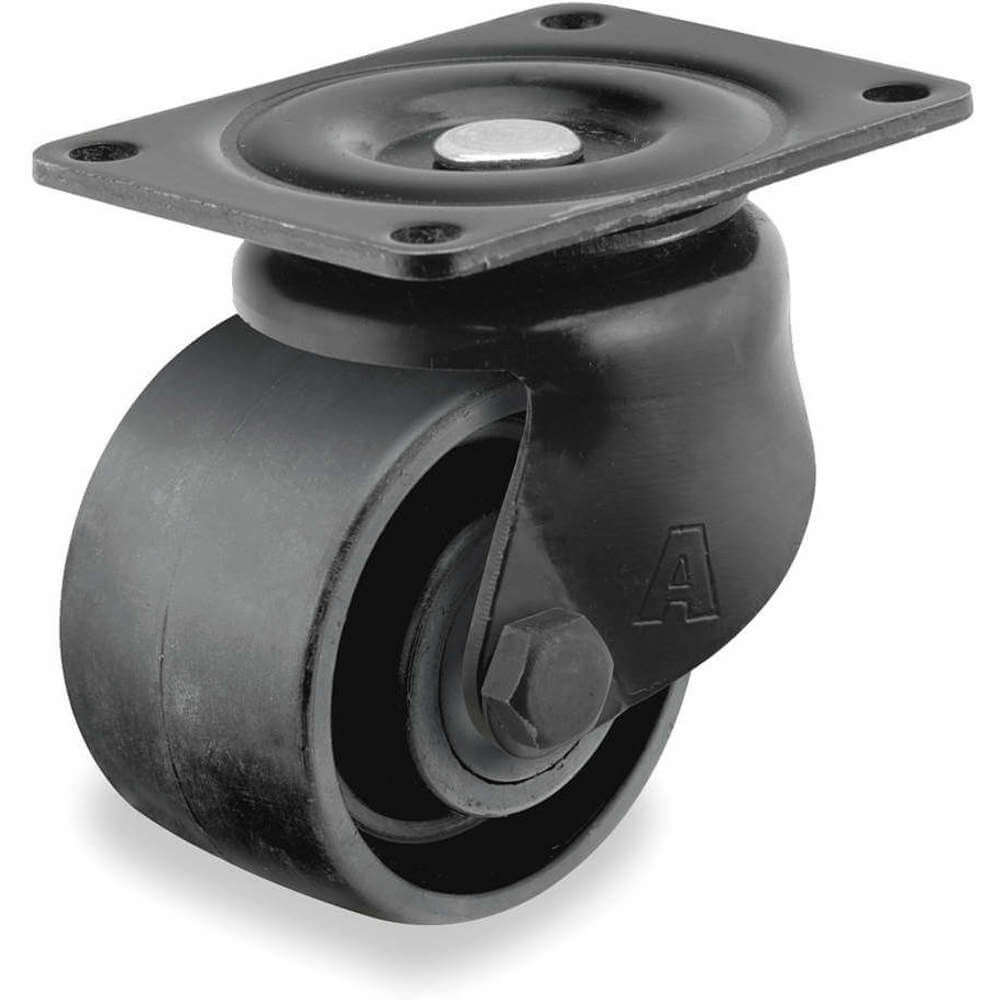

| A | 20PB03201SG | 2 3/8" x 3 3/8" | 2 3/8" x 3 3/8" | Roller | No Brake Included | Polypropylene | 4 1/16" | 3 1/8" x 4 1/8" | D | $21.99 | |

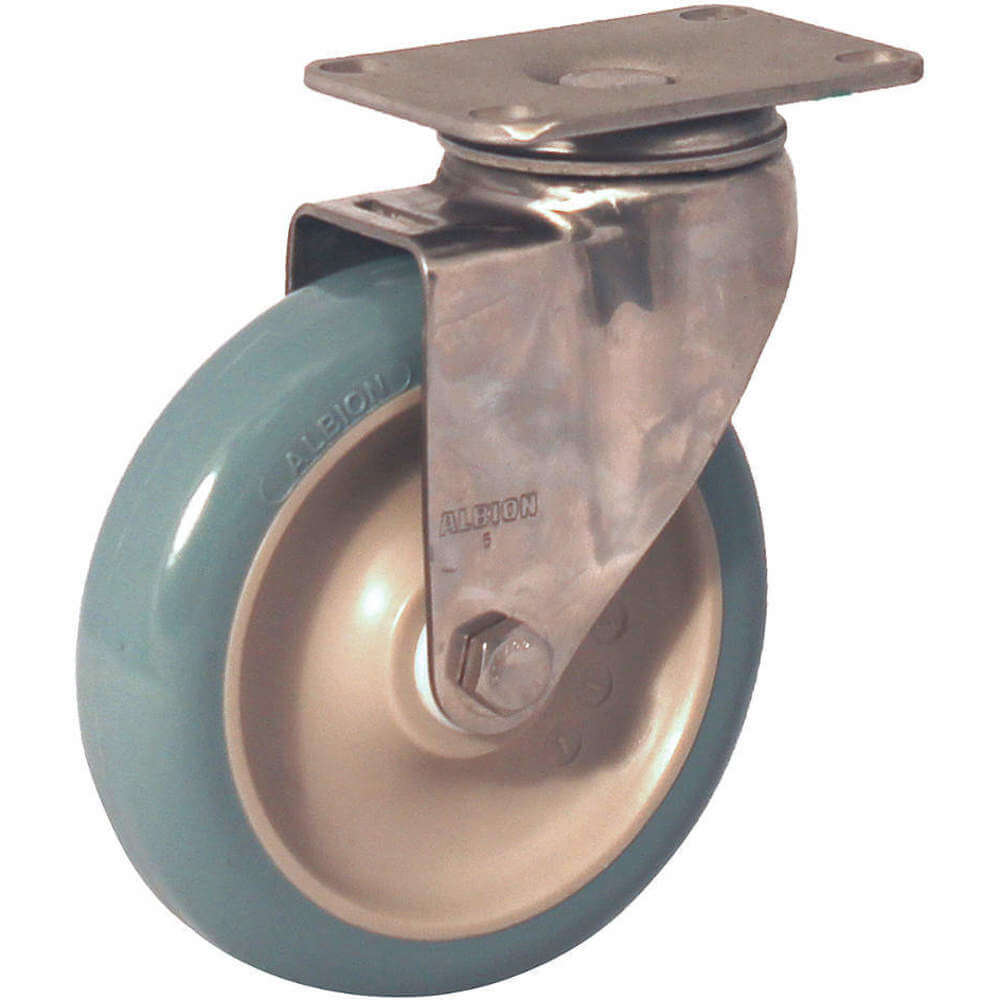

| B | 04XA04051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Delrin | No Brake Included | Polyurethane | 5 1/8" | 2 1/2" x 3 5/8" | C | $63.75 | |
| B | 04XA05051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Delrin | No Brake Included | Polyurethane | 6 3/16" | 2 1/2" x 3 5/8" | C | $67.35 | |
| C | P2XR03028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | Thermoplastic Rubber | 4 1/4" | 2 1/2" x 3 5/8" | C | $34.40 | |
| C | P2XR03X28SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | - | No Brake Included | Thermoplastic Rubber | 4 11/16" | 2 1/2" x 3 5/8" | C | $52.31 | |
| C | P2XR05028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | Thermoplastic Rubber | 6 3/16" | 2 1/2" x 3 5/8" | C | $47.71 | |
| D | 05XS04251SPREVG | 3" x 3" | 2 5/8" x 3 5/8" | Delrin | No Brake Included | Thermoplastic Rubber | 5 5/8" | 4" x 4 1/2" | B | $247.36 |
