| Item | Minipleat Air Filter |
|---|---|
| Actual Depth | 3 3/4" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 3 3/4" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Air Flow @ 625 Fpm | 1736 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 95% |
| Filter Efficiency - Air Filters | 95% |
| Filter Pack Enclosure | Metal Frame |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1.5 in. wc |
| Frame Or Header Material | Metal |
| Initial Resistance | 0.48 in. wc |
| Initial Resistance @ 500 Fpm | 0.75 in. wc |
| Max. Air Flow | 1465 CFM |
|---|---|
| Max. Temp. | 160°F |
| Max. Velocity | 625 FPM |
| Media Color | White |
| Media Material | Fiberglass |
| Media Separator Construction | Glue |
| Nominal Depth | 4" |
| Nominal Filter Size | 20" x 20" x 4" |
| Nominal Height | 20" |
| Nominal Width | 20" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Style - Air Filters | Box |
| Gasket Location | None |
| Gasket Material | None |
| standard | ASHRAE 52.2-2015 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| HS Code | 8421398090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 3.6 |
| Style | Model | Nominal Depth | Nominal Filter Size | Performance Rating | Media Material | Nominal Width | Nominal Height | Air Flow Rate | Max. Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

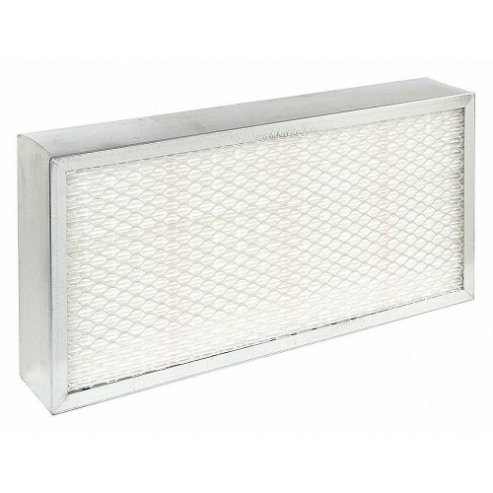

| A | 2GFP1 | 4" | 12" x 24" x 4" | MERV 11 | Fiberglass | 24" | - | 500 FPM | 160°F | $194.88 | |
| B | 2GFP8 | 4" | 20" x 24" x 4" | MERV 11 | Fiberglass | - | 20" | 500 FPM | 160°F | $226.69 | |
| C | 2GFT2 | 4" | 20" x 20" x 4" | MERV 13 | Fiberglass | 20" | 20" | 500 FPM | 160°F | $222.19 | |
| A | 2GFU5 | 4" | 12" x 24" x 4" | MERV 14 | Fiberglass | - | - | 500 FPM | 160°F | $194.26 | |
| C | 2GFV8 | 4" | 24" x 24" x 4" | MERV 14 | Fiberglass | 24" | 24" | 500 FPM | 160°F | $217.04 | |
| D | 2GFW7 | 4" | 20" x 20" x 4" | MERV 11 | Synthetic | 20" | 20" | 500 FPM | 160°F | $178.09 | |
| E | 2GFX2 | 4" | 20" x 24" x 4" | MERV 11 | Synthetic | - | 20" | 500 FPM | 160°F | $184.91 |
