| Item | Swivel Joint |
|---|---|
| Angle | 90° |
| Casing Center To End Length | 2.14" |
| Casing Connection Type | Npsm |
| Casing Thread Gender | Male |
| Casing Thread Size | 3/4"-14 |
| End Gender 1 | Female |
| End Gender 2 | Male |
| End Size 1 | 3/4" |
| End Size 2 | 3/4" |
| End Type 1 | NPSM |
| End Type 2 | NPTF |
| Finish | Zinc |
| Fitting Material | Steel |
| Fitting Material Finish | Zinc Plated |
| Fitting Shape | 90° Elbow |
| Fluid | Hydraulic Oils, Water, Glycol |
| For Fluid Type | Glycol, Hydraulic Oil, Water |
| Height | 3.09" |
| Hex Size 1 | 34 mm |
| Hex Size 2 | 1 1/4" |
| Inlet Connection | 3/4"-14 Male NPSM |
| Item Type | Swivel Joint Complete |
| Length | 3.21" |
| Material | Zinc Plated Steel |
| Max. Operating Temp. | 250°F |
| Maximum Operating Pressure | 3500 psi |
|---|---|
| Maximum Operating Temperature | 250°F |
| Min. Operating Temp. | -40°F |
| Minimum Operating Temperature | -40°F |
| Operating Pressure | 3500 psi |
| Outlet Connection | 3/4"-14 |
| Outlet Connection Type | Female NPTF |
| Overall Height | 3.09" |
| Overall Length | 3.21" |
| Overall Width | 1.77" |
| Resistance Properties | Corrosion Resistant |
| Seal Material | Buna-N |
| Seal Part Number If Included | FS65-01014FS65-01021-12 |
| Sleeve Center To Top Height | 1.89" |
| Sleeve Connection Type | NPTF |
| Sleeve Thread Gender | Female |
| Sleeve Thread Size | 3/4"-14 |
| Swivel Size | 3/4" |
| Thread Sealant | No |
| Thread Size 1 | 3/4"-14 |
| Thread Size 2 | 3/4"-14 |
| Torque | 17 lbs.-in. |
| Warranty | Hydraulics Warranty |
| Width | 1.77" |
| Standards | ANSI B16.5, ASTM-A-351, MSS-SP-51 CLASS 150LB |
| Height (cm) | 7.85 |
|---|---|
| Length (cm) | 8.15 |
| Width (cm) | 4.5 |
| HS Code | 7307290090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.81 |
| Style | Model | Overall Length | Operating Pressure | Overall Height | Seal Material | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | FS65000-0404-01 | 2.6" | 5000 psi | 2.14" | Buna-N | Zinc Plated Steel | $187.21 | |

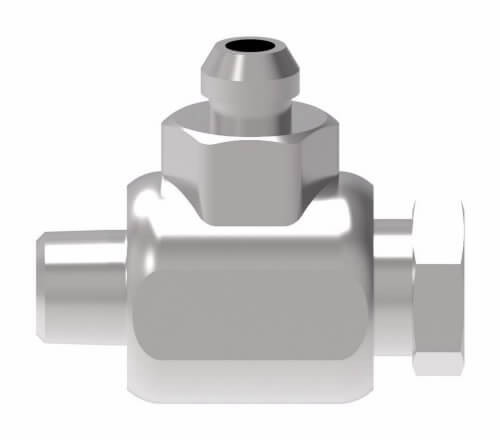

| B | FS65000-0606-01 | 2.53" | 5000 psi | 2.14" | Buna-N | Zinc Plated Steel | $180.90 | |
| A | FS65000-0808-01 | 2.88" | 3500 psi | 2.39" | Buna-N | Zinc Plated Steel | $188.27 | |
| A | FS65000-1616-01 | 3.91" | 3000 psi | 3 12/25" | Buna-N | Zinc Plated Steel | $251.09 | |

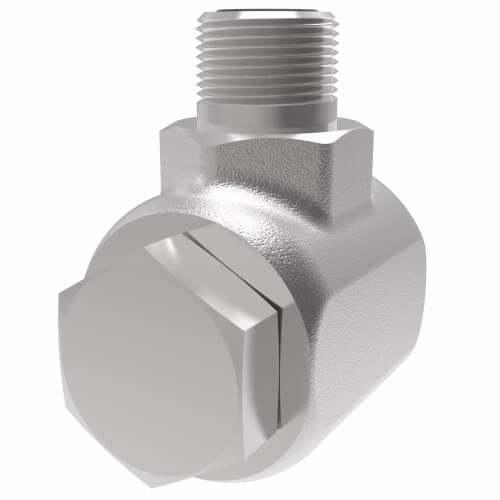

| C | FS65003-0404-01 | 2.6" | 5000 psi | 2.35" | Buna-N | Zinc Plated Steel | $176.30 | |
| C | FS65003-0606-01 | 2.53" | 5000 psi | 2 9/25" | Buna-N | Zinc Plated Steel | $181.31 | |
| C | FS65003-0808-01 | 2.88" | 3500 psi | 2.66" | Buna-N | Zinc Plated Steel | $176.30 |
