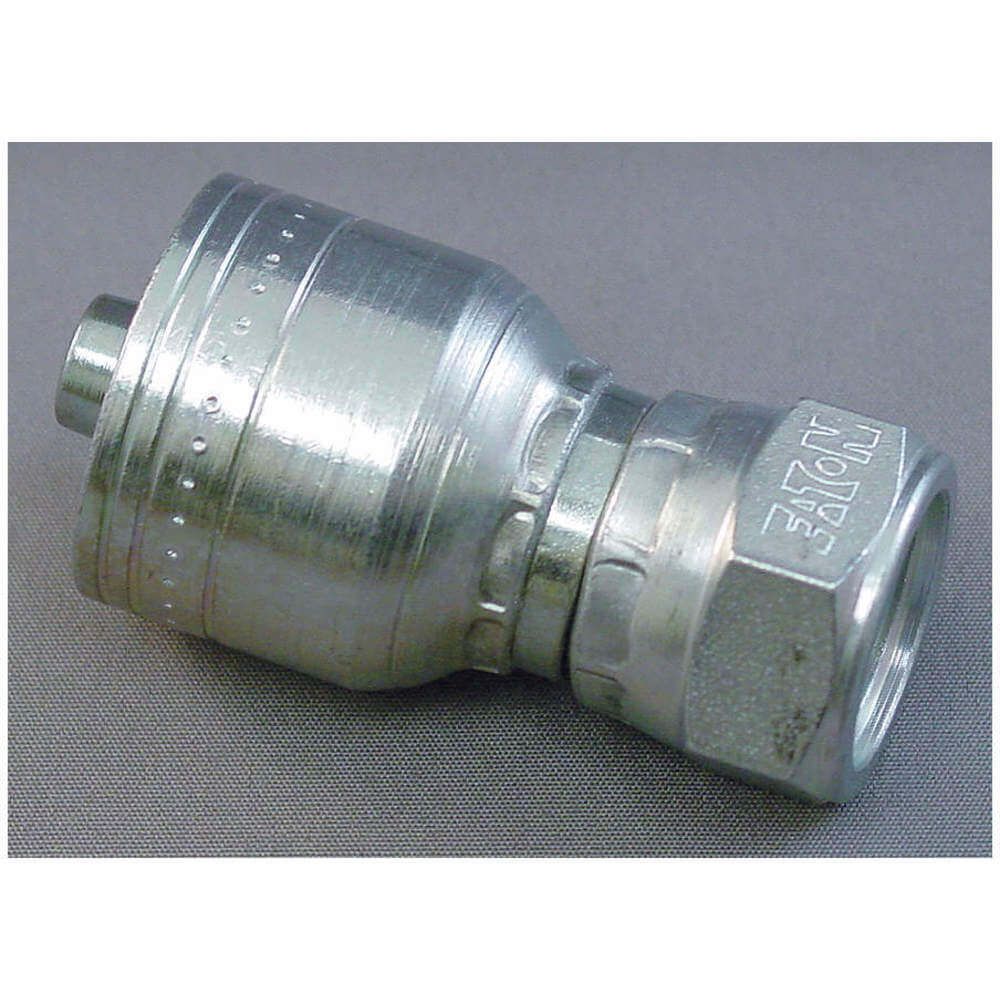

| Item | Hydraulic Hose Fitting |
|---|---|
| Finish | Trivalent Chromium Plated |
| Fitting Material | Steel |
| Fitting Movement | Swivel |
| Fitting Shape | Straight |
| Fitting Type | Straight |
| For Hose Dash Size | -4 |
| For Hose Inside Diameter | 1/4" |
| For Use With Hose Series | 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series |
| Hose | 1/4" |
| Hose Fitting A Connection Type | BSPP |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1/4" |
| Hose Fitting B Connection Type | Crimp |
|---|---|
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Length | 1.62" |
| Material Grade | Grade 12L14, Grade 12L15 |
| Reusable | No |
| Thread Angle | 30° |
| Thread Size | 1/4"-19 |
| Thread Type | BSPP |
| Type | Crimp, Female BSPP |
| Vacuum Rating | Not Rated |
| Standards | SAE, DIN |
| Height (cm) | 1.9 |
|---|---|
| Length (cm) | 4.11 |
| Width (cm) | 1.9 |
| HS Code | 7307929000 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.0495 |
| Style | Model | Fitting Material | For Hose Dash Size | Fitting Shape | For Hose I.d. | Hose | Hose Fitting B Size | Hose Fitting A Size | Angle | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1A6BF4 | Steel | -4 | Straight | - | 1/4" | 1/4" | 3/8" | - | $72.09 | |
| A | 1A6BF6 | Steel | -6 | Straight | 3/8" | 3/8" | 3/8" | 3/8" | - | $37.97 | |
| A | 1A8BF6 | Steel | -6 | Straight | 3/8" | 3/8" | 3/8" | 1/2" | - | $38.16 | |
| A | 1A8BF8 | Steel | -8 | Straight | 1/2" | 1/2" | 1/2" | 1/2" | - | $38.33 | |
| A | 1A10BF8 | Steel | -8 | Straight | 1/2" | 1/2" | 1/2" | 5/8" | - | $109.30 | |
| A | 1A10BF10 | Steel | -10 | Straight | 5/8" | 5/8" | 5/8" | 5/8" | - | $105.71 | |
| A | 1A12BF12 | Steel | -12 | Straight | 3/4" | 3/4" | 3/4" | 3/4" | - | $81.74 |
