| Item | Male Disconnect |
|---|---|
| Barrel Inside Dia. | 0.065" |
| Color Code | Red |
| Connection Material | Electro Tin Plated Copper |
| Connection Type | Crimp |
| Insulation | Full |
| Insulation Color | Red |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
|---|---|
| Max. Voltage | 1000V |
| Overall Length | 0.95" |
| Seam | Butted |
| Tab Size | 0.032" x 0.25" |
| Wire Range | 22 AWG to 18 AWG |
| Wire Size | 22 AWG to 18 AWG |
| Standards | CSA CERTIFIED, ROHS COMPLIANT, UL LISTED |
| Height (cm) | 10.16 |
|---|---|
| Length (cm) | 2.41 |
| Width (cm) | 0.64 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.045 |
| Style | Model | Wire Size | Insulation Color | Barrel Inside Dia. | Tab Size | Overall Length | Color Code | Wire Range | Insulation Material | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

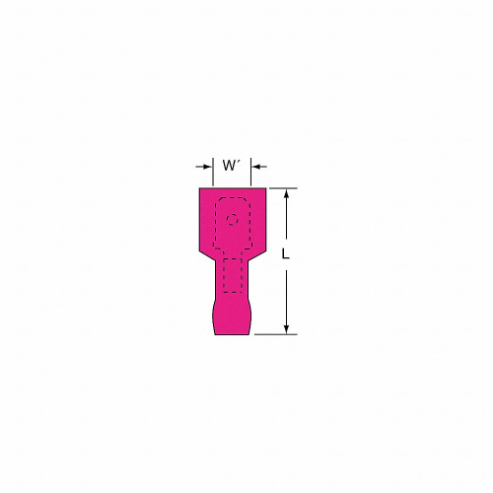

| A | 7010350243 | 22 AWG to 18 AWG | Red | 0.065" | 0.187" x 0.02" | 0.95" | Red | - | Nylon | 25 | $25.11 | |

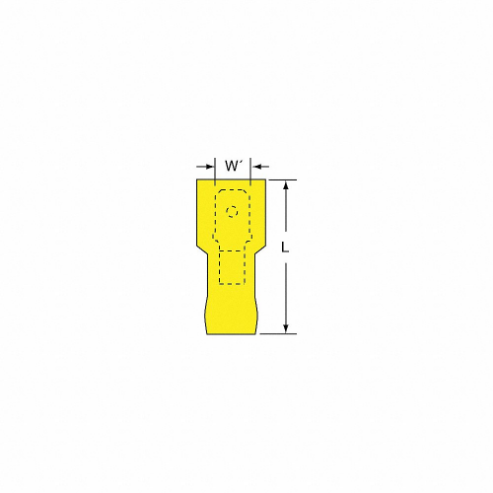

| B | 7000133667 | 12 AWG to 10 AWG | Yellow | 0.15" | 0.032" x 0.25" | 1.05" | Yellow | 12 AWG to 10 AWG | Nylon | 25 | $28.56 |
