| Voltage | Hp | Full Load Amps | Nameplate Rpm | Frame | Finish | Phase | Motor Mounting Type | Price |
|---|---|---|---|---|---|---|---|---|
| 115/230V AC | 1/4 hp | 3.5/1.7A | 1700 RPM | 56YZ | Epoxy Coated | 1 | Yoke | $1,096.45 |
| 230/460V AC | 1/3 hp | 1.5/0.7A | 1765 RPM | 56C | Epoxy Coated | 3 | Face | $1,092.91 |
| 115/230V AC | 1/3 hp | 4.9/2.5A | 1700 RPM | 56YZ | Epoxy Coated | 1 | Yoke | $1,124.27 |
| 230/460V AC | 1/2 hp | 1.6/8A | 1750 RPM | 56C | Epoxy Coated | 3 | Face | $1,435.73 |
| 230/460V AC | 1/2 hp | 1.4/0.7A | 3550 RPM | 56C | Epoxy Coated | 3 | Face, Base | $1,255.41 |
| 230/460V AC | 1/2 hp | 1.6/0.8A | - | 56 | Epoxy Coated | 3 | Rigid Base | $912.40 |
| 230/460V AC | 1/2 hp | 1.6/0.8A | 1750 RPM | 56C | Epoxy Coated | 3 | Face, Base | $1,305.69 |
| 230/460V AC | 1/2 hp | 1.6/0.8A | 1750 RPM | 56 | Epoxy Coated | 3 | Rigid Base | $963.98 |
| 115/230V AC | 1/2 hp | 5.9/2.9A | 1700 RPM | 56YZ | Epoxy Coated | 1 | Yoke | $1,018.58 |
| 230/460V AC | 3/4 hp | 2.3/1.2A | 1745 RPM | 56 | Epoxy Coated | 3 | Rigid Base | $1,160.09 |
| 230/460V AC | 3/4 hp | 2.3/1.2A | 1745 RPM | 56C | Epoxy Coated | 3 | Face | $1,563.95 |
| 230/460V AC | 3/4 hp | 2.3/1.2A | 1745 RPM | 56C | Epoxy Coated | 3 | Face, Base | $1,349.55 |
| 230/460V AC | 3/4 hp | 2/1A | 3500 RPM | 56C | Epoxy Coated | 3 | Face | $1,148.55 |
| 230/460V AC | 3/4 hp | 2/1A | 3500 RPM | 56C | Epoxy Coated | 3 | Face, Base | $1,344.66 |
| 230/460V AC | 1 hp | 2.5/1.3A | 3520 RPM | 56C | Epoxy Coated | 3 | Face, Base | $1,521.68 |
| 230/460V AC | 1 hp | 2.5/1.3A | 3520 RPM | 56C | Epoxy Coated | 3 | Face | $1,502.46 |
| 230/460V AC | 1 hp | 2.8/1.4A | 3470 RPM | 56HC | Unfinished | 3 | Face, Base | $1,436.26 |
| 230/460V AC | 1 hp | 2.9/1.45A | 1750 RPM | 143TC | Unfinished | 3 | Face | $938.15 |
| 230/460V AC | 1 hp | 3.1/1.5A | 1750 RPM | 56C | Epoxy Coated | 3 | Face | $1,261.28 |
| 230/460V AC | 1 hp | 3.8/1.9A | 1750 RPM | 56 | Epoxy Coated | 3 | Rigid Base | $1,265.31 |
| 230/460V AC | 1 hp | 4/2A | 1165 RPM | 56C | Unfinished | 3 | Face | $876.16 |
| 230/460V AC | 1 hp | 4/2A | 1165 RPM | 56HC | Unfinished | 3 | Face, Base | $904.16 |
| 230/460V AC | 1 hp | 4/2A | 1165 RPM | 145TC | Unfinished | 3 | Face, Base | $1,061.25 |
| 230/460V AC | 1 hp | 3/1.5A | 1740 RPM | 56HC | Unfinished | 3 | Face, Base | $877.24 |
| 230/460V AC | 1 hp | 3/1.5A | 1740 RPM | 56C | Unfinished | 3 | Face | $1,090.29 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 56C | Epoxy Coated | 3 | - | $1,290.06 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 56 | Epoxy Coated | 3 | Rigid Base | $1,147.59 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 143T | Epoxy Coated | 3 | Rigid Base | $1,459.11 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 143TC | Epoxy Coated | 3 | Face, Base | $1,616.53 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 143TC | Epoxy Coated | 3 | Face | $1,309.71 |
| 230/460V AC | 1 hp | 3/1.5A | 1750 RPM | 143TC | Unfinished | 3 | Face, Base | $1,029.44 |
| 230/460V AC | 1 1/2 hp | 3.6/1.8A | 3505 RPM | 56HC | Epoxy Coated | 3 | Face, Base | $1,566.21 |
| 230/460V AC | 1 1/2 hp | 3.6/1.8A | 3505 RPM | 56C | Epoxy Coated | 3 | Face | $1,557.32 |
| 230/460V AC | 1 1/2 hp | 4/2A | 1750 RPM | 56C | Unfinished | - | Face | $1,457.46 |
| 230/460V AC | 1 1/2 hp | 4/2A | 1750 RPM | 56HC | Unfinished | 3 | Face, Base | $1,657.66 |
| 230/460V AC | 1 1/2 hp | 4/2A | 1750 RPM | 145TC | Unfinished | 3 | - | $1,801.34 |
| 230/460V AC | 1 1/2 hp | 4/2A | 3480 RPM | 56HC | Unfinished | 3 | - | $918.79 |
| 230/460V AC | 1 1/2 hp | 4.3/2.1A | 1750 RPM | 56C | Epoxy Coated | 3 | Face | $1,985.24 |
| 230/460V AC | 1 1/2 hp | 4.3/2.1A | 1750 RPM | 56HC | Epoxy Coated | 3 | Face, Base | $1,767.45 |
| 230/460V AC | 1 1/2 hp | 4.3/2.1A | 1750 RPM | 145TC | Epoxy Coated | 3 | Face | $1,357.98 |
| 230/460V AC | 1 1/2 hp | 4.3/2.1A | 1750 RPM | 145TC | Epoxy Coated | 3 | Face, Base | $1,770.78 |
| 230/460V AC | 1 1/2 hp | 4.3/2.1A | 1755 RPM | 145T | Epoxy Coated | 3 | Rigid Base | $967.08 |
| 230/460V AC | 1 1/2 hp | 4.6/2.3A | 1750 RPM | 145TC | Unfinished | 3 | Face | $945.04 |
| 230/460V AC | 2 hp | 4.8/2.4A | 3480 RPM | 56HC | Unfinished | 3 | Face, Base | $1,000.14 |
| 230/460V AC | 2 hp | 4.8/2.4A | 3480 RPM | 145TC | Unfinished | 3 | Face, Base | $1,936.55 |
| 230/460V AC | 2 hp | 4.9/2.4A | 3505 RPM | 145TC | Epoxy Coated | 3 | Face, Base | $1,327.68 |
| 230/460V AC | 2 hp | 5.7/2.8A | 1750 RPM | 145T | Epoxy Coated | 3 | Rigid Base | $1,477.42 |
| 230/460V AC | 2 hp | 5.7/2.8A | 1750 RPM | 145T | Epoxy Coated | 3 | Rigid Base | $1,614.68 |
| 230/460V AC | 2 hp | 5.7/2.8A | 1750 RPM | 145TC | Epoxy Coated | 3 | Face, Base | $1,226.87 |
| 230/460V AC | 2 hp | 5.8/2.8A | 3505 RPM | 56C | Epoxy Coated | 3 | Face | $1,693.61 |
| 230/460V AC | 2 hp | 5.8/2.8A | 3505 RPM | 56HC | Epoxy Coated | 3 | Face, Base | $1,341.76 |
| 230/460V AC | 2 hp | 6.2/3.1A | 1750 RPM | 56C | Epoxy Coated | 3 | Face | $1,525.05 |
| 230/460V AC | 2 hp | 6.3/3.1A | 1750 RPM | 56HC | Epoxy Coated | 3 | Face, Base | $1,520.44 |
| 230/460V AC | 2 hp | 6/3A | 1750 RPM | 56HC | Unfinished | 3 | Face, Base | $1,071.42 |
| 230/460V AC | 2 hp | 6/3A | 1750 RPM | 56C | Unfinished | 3 | Face | $1,037.09 |
| 230/460V AC | 2 hp | 6/3A | 1750 RPM | 145TC | Unfinished | 3 | Face, Base | $2,062.04 |
| 230/460V AC | 2 hp | 6/3A | 1750 RPM | 145TC | Unfinished | 3 | Face | $1,042.16 |
| 230/460V AC | 2 hp | 6/2.8A | 1750 RPM | 145TC | Epoxy Coated | 3 | Face | $1,546.69 |
| 230/460V AC | 3 hp | 7.4/3.7A | 3535 RPM | 182TC | Epoxy Coated | 3 | Face, Base | $1,930.34 |
| 230/460V AC | 3 hp | 7.6/3.8A | 1765 RPM | 182TC | Epoxy Coated | 3 | Face, Base | $2,092.73 |
| 230/460V AC | 3 hp | 7.6/3.8A | 1765 RPM | 182T | Epoxy Coated | 3 | Rigid Base | $2,201.45 |
| 230/460V AC | 3 hp | 7.6/3.8A | 1765 RPM | 182TC | Epoxy Coated | 3 | Face | $2,912.73 |
| 230/460V AC | 3 hp | 8.1/4.05A | 3510 RPM | 182TC | Unfinished | 3 | Face, Base | $2,057.69 |
| 230/460V AC | 3 hp | 8/4A | 1765 RPM | 182TC | Unfinished | 3 | Face, Base | $2,257.14 |
| 230/460V AC | 5 hp | 12.1/6.1A | 3525 RPM | 184T | Epoxy Coated | 3 | Rigid Base | $2,773.55 |
| 230/460V AC | 5 hp | 12.2/6.1A | 3525 RPM | 184TC | Unfinished | 3 | Face, Base | $2,257.94 |
| 230/460V AC | 5 hp | 12.5/6.2A | 1755 RPM | 184T | Epoxy Coated | 3 | Rigid Base | $2,063.61 |
| 230/460V AC | 5 hp | 12.5/6.2A | 1755 RPM | 184TC | Epoxy Coated | 3 | Face | $2,133.60 |
| 230/460V AC | 5 hp | 12.5/6.2A | 1755 RPM | 184TC | Epoxy Coated | 3 | Face, Base | $2,220.16 |
| 230/460V AC | 5 hp | 12.5/6.25A | 1765 RPM | 184TC | Unfinished | 3 | Face, Base | $2,113.87 |
| 230/460V AC | 5 hp | 12/6A | 3525 RPM | 184TC | Epoxy Coated | 3 | Face | $3,135.51 |
| 230/460V AC | 7 1/2 hp | 17.4/8.7A | 3520 RPM | 213T | Epoxy Coated | 3 | Rigid Base | $2,672.33 |
| 230/460V AC | 7 1/2 hp | 17.4/8.7A | 3520 RPM | 213TC | Epoxy Coated | 3 | Face | $4,505.00 |
| 230/460V AC | 7 1/2 hp | 18.2/9.1A | 1765 RPM | 213T | Epoxy Coated | - | Rigid Base | $4,541.05 |
| 230/460V AC | 7 1/2 hp | 18.2/9.1A | 1765 RPM | 213TC | Epoxy Coated | 3 | Face | $3,723.27 |
| 230/460V AC | 7 1/2 hp | 18.6/9.3A | 1755 RPM | 213TC | Unfinished | 3 | Face, Base | $2,967.79 |
| 230/460V AC | 10 hp | 23.1/11.6A | 3515 RPM | 215TC | Epoxy Coated | 3 | Face | $5,213.35 |
| 230/460V AC | 10 hp | 24.4/12.2A | 1760 RPM | 215TC | Unfinished | 3 | Face, Base | $4,677.73 |
| 230/460V AC | 10 hp | 24.4/12.2A | 3525 RPM | 215TC | Unfinished | 3 | Face, Base | $3,360.09 |
| 230/460V AC | 10 hp | 24/12A | 1760 RPM | 215TC | Epoxy Coated | 3 | Face, Base | $2,707.06 |
| 230/460V AC | 15 hp | 37/18.5A | 1765 RPM | 254TC | Unfinished | 3 | Face, Base | $6,650.32 |
| 230/460V AC | 15 hp | 37/18.5A | 3540 RPM | 254TC | Unfinished | 3 | Face, Base | $7,042.62 |
| 230/460V AC | 15 hp | 35/17.4A | 3540 RPM | 215TC | Epoxy Coated | 3 | Face | $4,890.55 |
| 230/460V AC | 20 hp | 46/23A | 3540 RPM | 256TC | Unfinished | 3 | Face, Base | $7,671.99 |
| 115/208-230V AC | 1/2 hp | 5/2.5-2.6A | 1745 RPM | 56HC | Unfinished | 1 | - | $1,006.26 |
| 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | - | - | 1 | Face | $1,012.99 |
| 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | $1,058.53 |
| 115/208-230V AC | 1 hp | 11.2/5.6-5.8A | 1745 RPM | 56C | Unfinished | 1 | Face | $1,060.11 |
| 115/208-230V AC | 1 hp | 11.2/5.6-5.8A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | $1,105.42 |
| 115/208-230V AC | 1 1/2 hp | 14.8/7.4-7.6A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | $1,211.85 |
| 115/208-230V AC | 1 1/2 hp | 14.8/7.4-7.6A | 1745 RPM | 56C | - | 1 | Face | $1,140.68 |
| 115V AC | 1/4 hp | 3.5A | 1075 RPM | 48YZ | Unfinished | 1 | Yoke | $521.38 |
| 115V AC | 1/2 hp | 5.8A | 1075 RPM | 48YZ | Unfinished | 1 | Yoke | $603.39 |
| 208-230V AC | 2 hp | 7.4-8.9A | 3450 RPM | 56C | Unfinished | 1 | Face | $1,242.59 |
| 208-230V AC | 2 hp | 7.9-8.9A | 3450 RPM | 56HC | Unfinished | 1 | - | $1,258.02 |
| 208-230V AC | 2 hp | 8.5-9.9A | 1745 RPM | 56C | Unfinished | 1 | - | $1,298.82 |
| 208-230V AC | 2 hp | 8.5-9.9A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | $1,316.76 |
| 208-230/460V AC | 1/3 hp | 1.1-1.2/0.55A | 3500 RPM | 56C | Unfinished | 3 | Face, Base | $708.80 |
| 208-230/460V AC | 1/3 hp | 1.2-1.4/0.6A | 1745 RPM | 56C | Unfinished | 3 | Face, Base | $717.60 |
| 208-230/460V AC | 1/2 hp | 1.5-1.6/0.75A | 3460 RPM | 56C | Unfinished | 3 | Face, Base | $748.44 |
| 208-230/460V AC | 1/2 hp | 1.6-1.8/0.8A | 1745 RPM | 56C | Unfinished | 3 | Face, Base | $1,135.86 |
| 208-230/460V AC | 1/2 hp | 1.6-1.8/0.8A | 1745 RPM | 56C | Unfinished | 3 | Face | $1,118.91 |
| 208-230/460V AC | 1/2 hp | 1.8-1.9/0.9A | 1155 RPM | 56C | Unfinished | 3 | Face | $754.62 |
| 208-230/460V AC | 1/2 hp | 1.8-1.9/0.9A | 1155 RPM | 56C | Unfinished | 3 | Face, Base | $779.01 |
| 208-230/460V AC | 3/4 hp | 2.2-2.3/1.1A | 1745 RPM | 56C | Unfinished | 3 | Face | $1,205.82 |
| 208-230/460V AC | 3/4 hp | 2.2-2.3/1.1A | 1745 RPM | 56C | Unfinished | 3 | Face, Base | $1,235.45 |
| 208-230/460V AC | 3/4 hp | 2.2-2.3/1.1A | 3500 RPM | 56C | Unfinished | 3 | Face, Base | $805.76 |
| 208-230/460V AC | 3/4 hp | 3.7-3.8/1.85A | 1155 RPM | 56HC | Unfinished | 3 | Face, Base | $811.07 |
| 208-230/460V AC | 3/4 hp | 3.7-3.8/1.85A | 1155 RPM | 56C | Unfinished | 3 | Face | $784.86 |
Description

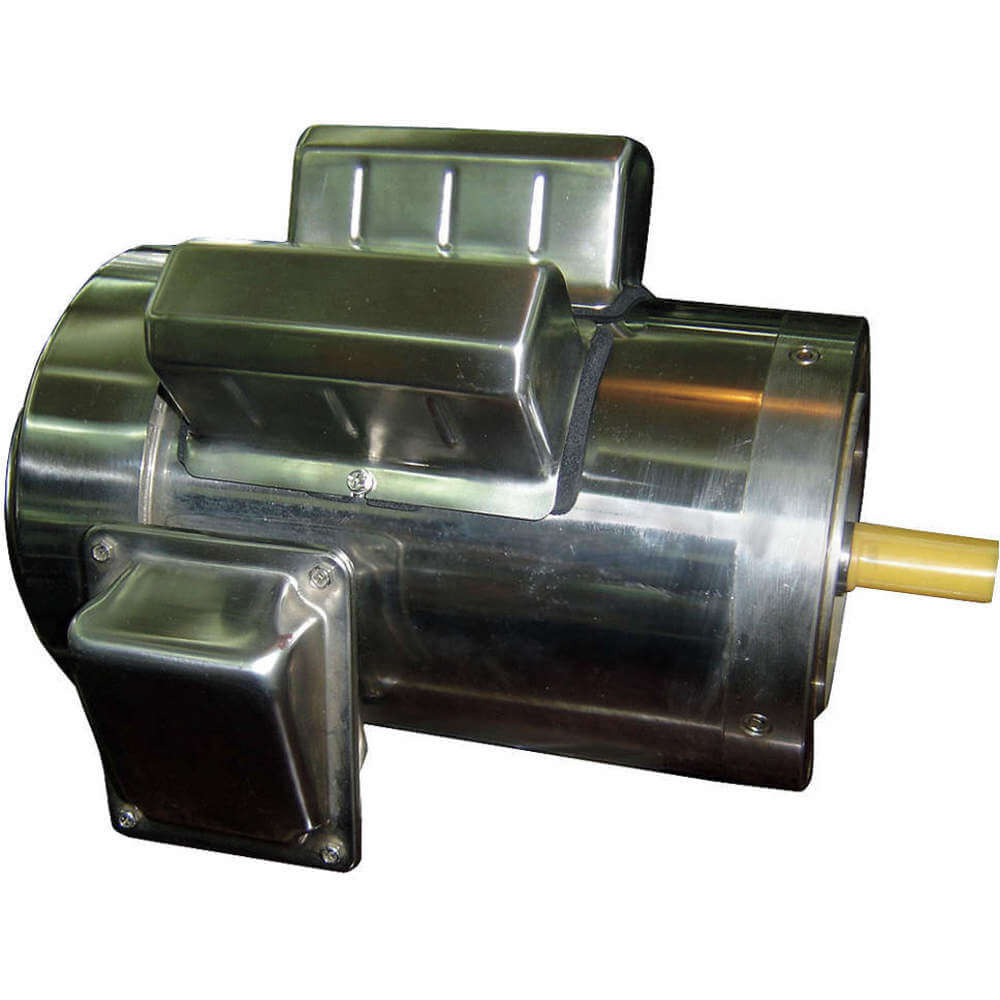

Dayton washdown motors are ideal for food packaging and processing plants, wet & humid environments and industries where machines need cleaning & hosing. These motors are totally enclosed to protect internal components from dust and moisture. The shafts of Dayton washdown motors are made up of standard / 303 / 300 Series stainless steel to ensure resistance against scratches and corrosion. These motors are equipped with ball bearings for reducing friction and are capable of being operated up to an ambient temperature of 40 degrees Celsius. Choose from a wide range of Dayton washdown motors, available in capacitor-start, permanent split capacitor and 3 phase motor designs on Raptor Supplies.
